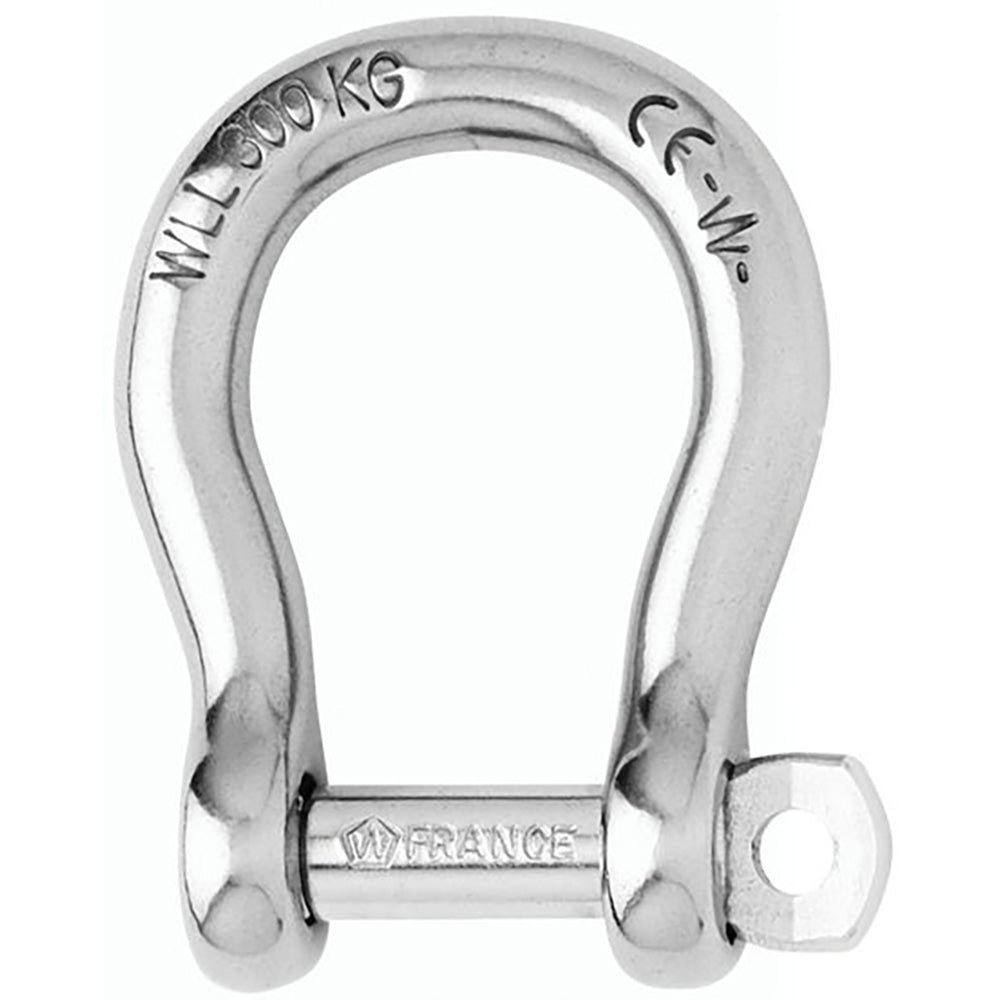

Wichard Not Self-Locking Bow Shackle - 16mm Diameter - 5/8"
SKU 97633·Shackles/Rings/Pins
$259.38
Not Self-Locking Bow Shackle - 16mm Diameter - 5/8"Features: Bow shackle forged in grade 316L stainless steel The pin is locked into one of the indentations No risks of loosening due to vibrations Outstanding working...
1
In stock
·Ships from US distribution
Authorized dealerGenuine Wichard Marine
Secure checkoutPowered by Shopify
Expert supportTalk to a rigger
Will it fit your boat?
Size it to your vessel first
Run your loads through the Energy Planner to confirm this gear covers your daily draw — and see if you need more panels or battery.
Open the Energy Planner →Not Self-Locking Bow Shackle - 16mm Diameter - 5/8"
Features:
- Bow shackle forged in grade 316L stainless steel
- The pin is locked into one of the indentations
- No risks of loosening due to vibrations
- Outstanding working and breaking loads
- WLL: only for industrial applications (lifting i.e…)
- CE marking
- Part # 01247 is not self-locking
Applications:
- To be used when ample room is required
- Possibility to attach several lines or cables
Specifications:
- Materials: 316 stainless steel grade
- Working load: (lb) 7050 / (kg) 3200
- WLL: (lb) 4400 / (kg) 2000
- Breaking load: (lb) 22040 / (kg) 10000
- Weight: (lb) 1.19 / (g) 540
Dimensions:
- A: (inch) 2 3/4" / (mm) 70
- B: (inch) 1 17/64" / (mm) 32
- C: (inch) 35/64" / (mm) 14
- D: (inch) 1 17/64" / (mm) 14
- D diameter: (inch) 5/8" / (mm) 16
- E: (inch) 19/32" / (mm) 15
- M: (inch) 3 11/32" / (mm) 85
Caption:
- Working Load (WL): For nautical applications
- Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load.
WLL = Breaking load / 5
*Sold as an Individual
BrandWichard Marine
SKU97633
TypeShackles/Rings/Pins
Weight1.2 lb
