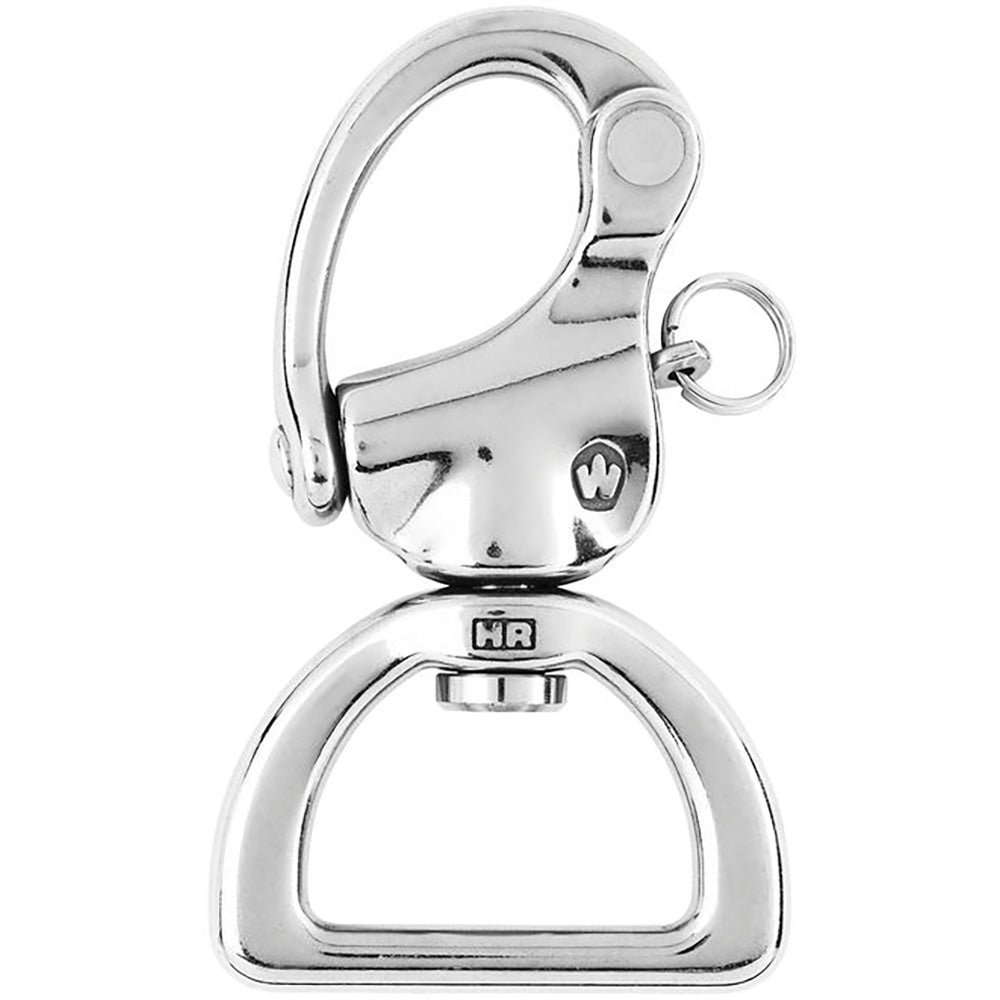

Wichard HR Snap Shackle Webbing Swivel - 100mm Length - 3-15/16"

HR Snap Shackle Webbing Swivel - 100mm Length - 3-15/16"

Features:

• HR Forged snap shackle (Grade 17.4 PH stainless steel) with webbing swivel.
• Its flat design allows attaching a webbing
• Free rotation of the snap shackle thanks to the swivel eye
• The plunger pin is set captive into the hook and cannot become detached
• Excellent working and breaking loads
• Easy to open by pulling the plunger pin (possible to attach a lanyard)

Applications:

• Snap shackle applications
• Applications requiring a free rotation of the snap shackle (for a better sail orientation)

Specifications:

• Materials: HR 17.4 PH stainless steel grade
• Working load: (lb) 2820 / (kg) 1280
• Breaking load: (lb) 8480 / (kg) 3850

Dimensions:

• A: (inch) 53/64" / (mm) 21
• B: (inch) 1 37/64" / (mm) 40
• Length: (inch) 3 15/16" / (mm) 100

Caption:

• Working Load (WL): For nautical applications
• Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load. WLL = Breaking load / 5
• High Resistance (HR)

*Sold as an Individual
