Wichard HR Snap Shackle - Large Bail - Length
Wichard Marine

Wichard HR Snap Shackle - Large Bail - Length

SKU 93150·Shackles/Rings/Pins
$236.80

HR Snap Shackle - Large Bail - Length 140mmFeatures: HR Forged snap shackle (Grade 17.4 PH stainless steel) with large eye The large eye allows attaching several ropes Free rotation of the snap shackle thanks to the s...

Choose your option
1
In stock ·Ships from US distribution
Authorized dealerGenuine Wichard Marine
Secure checkoutPowered by Shopify
Expert supportTalk to a rigger

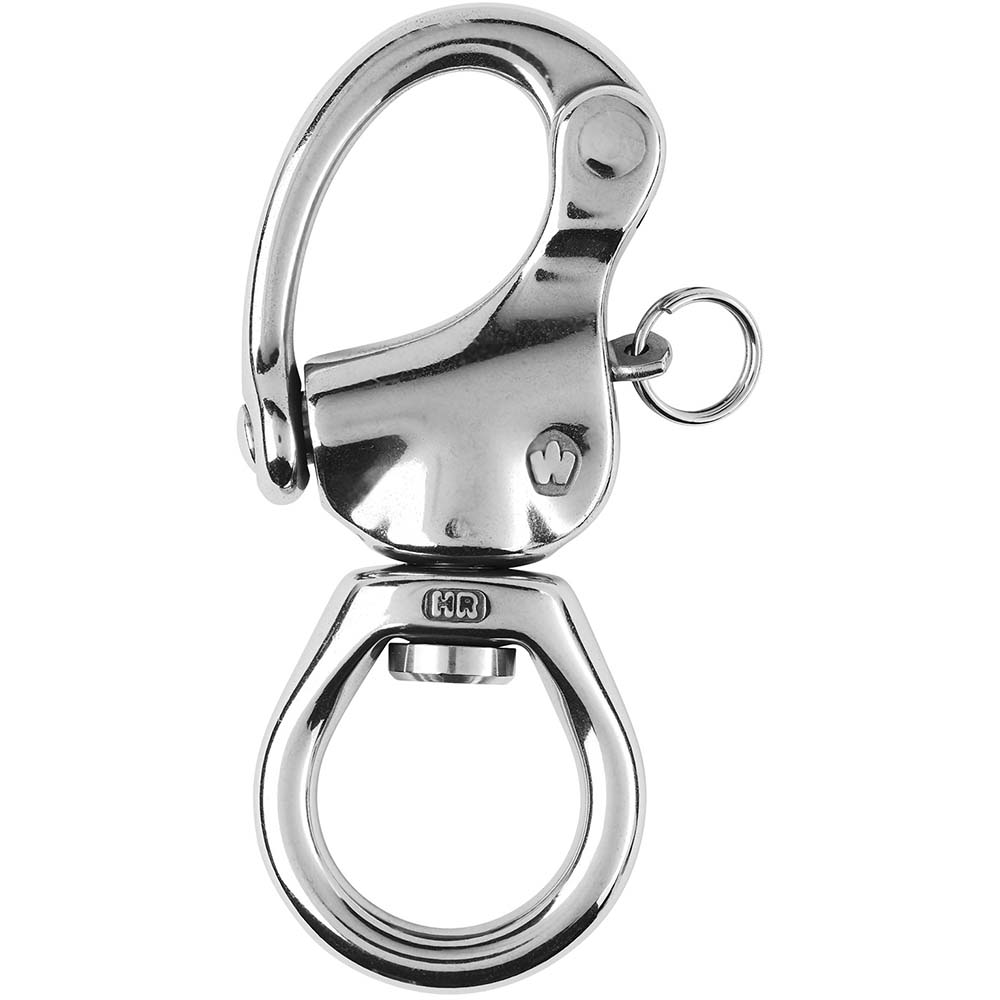

HR Snap Shackle - Large Bail - Length 140mm

Features:

  • HR Forged snap shackle (Grade 17.4 PH stainless steel) with large eye
  • The large eye allows attaching several ropes
  • Free rotation of the snap shackle thanks to the swivel eye
  • The plunger pin is set captive into the hook and cannot become detached
  • Excellent working and breaking loads
  • Easy to open by pulling the plunger pin (possibility to attach a lanyard)

Applications:

  • Snap shackle applications
  • Applications requiring a free rotation of the snap shackle (for a better sail orientation)

Specifications:

  • Materials HR 17.4 PH stainless steel grade
  • Length (inch) 5-33/64"
  • Working load (lb) 6170
  • Breaking load (lb) 16530
  • Weight (lb) 0.877

Dimensions (see 2nd image):

  • A (inch) 1-1/32"
  • B (inch) 1-3/8"
BrandWichard Marine
SKU93150
UPC3587790023770
TypeShackles/Rings/Pins
Weight1.0 lb
Size140mm / 105mm / 80mm
