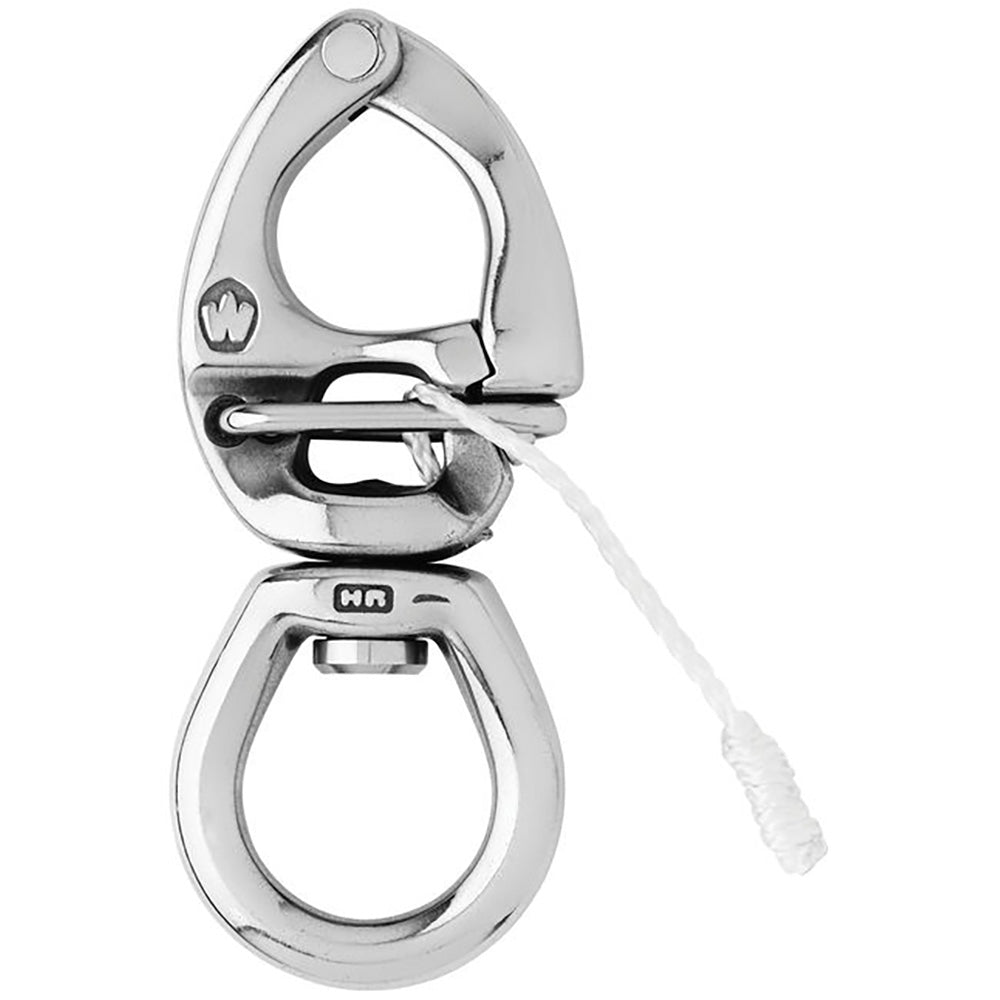

Wichard HR Quick Release Snap Shackle With Large Bail -145mm Length - 5-45/64"
SKU 97666·Shackles/Rings/Pins
$431.18
HR Quick Release Snap Shackle With Large Bail -145mm Length - 5-45/64"Features: HR forged (17.4 PH) quick-release snap shackle with large bail The opening is made by pulling the lanyard Perfect to attach several lines...
1
In stock
·Ships from US distribution
Authorized dealerGenuine Wichard Marine
Secure checkoutPowered by Shopify
Expert supportTalk to a rigger
Will it fit your boat?
Size it to your vessel first
Run your loads through the Energy Planner to confirm this gear covers your daily draw — and see if you need more panels or battery.
Open the Energy Planner →HR Quick Release Snap Shackle With Large Bail -145mm Length - 5-45/64"
Features:
- HR forged (17.4 PH) quick-release snap shackle with large bail
- The opening is made by pulling the lanyard
- Perfect to attach several lines (spinnaker sheets...)
- Outstanding working and breaking loads
- Free rotation of the snap shackle thanks to the swivel
Applications:
- For spinnaker operations
- Perfect to attach several lines: spinnaker sheets...
Specifications:
- Materials: HR 17.4 PH stainless steel grade
- Working load: (lb) 6170 / (kg) 2800
- Breaking load: (lb) 13880 / (kg) 6300
- Weight: (lb) 0.873 / (g) 396
Dimensions:
- A: (inch) 1 3/16" / (mm) 30
- B: (inch) 1 25/64" / (mm) 35.5
- Length: (inch) 5 45/64" / (mm) 145
Caption:
- Working Load (WL): For nautical applications
- Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load. WLL = Breaking load / 5
- High Resistance (HR)
*Sold as an Individual
BrandWichard Marine
SKU97666
TypeShackles/Rings/Pins
Weight0.9 lb
