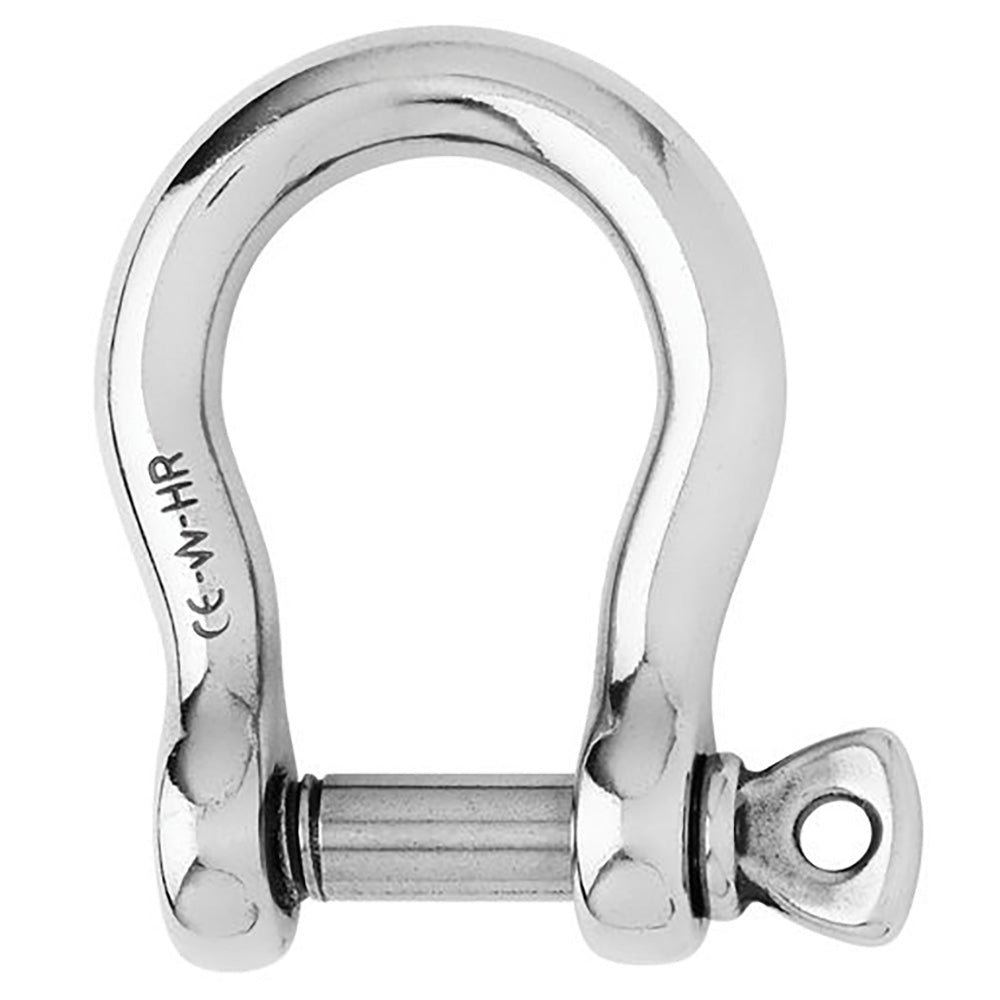

Wichard HR Bow Shackle - Pin Diameter

HR Bow Shackle - 12mm Pin Diameter

Features:

• Forged bow shackle in HR stainless steel grade (17,4 PH)
• Outstanding working and breaking load
• A HR shackle can be up to 60% more resistant than a shackle in 316L stainless steel
• WLL: only for industrial applications (lifting i.e…)
• CE marking

Applications:

• Applications requesting high loads
• To be used when ample room is required
• Possibility to attach several lines or cables
• Do not use for mooring applications

Specifications:

• Materials: HR 17.4 PH stainless steel grade
• Working load: (lb) 7930 / (kg) 3600
• WLL: (lb) 4400 / (kg) 2000
• Breaking load: (lb) 22040 / (kg) 10000
• Weight: (lb) 0.494 / (g) 224

Dimensions:

• A: (inch) 2 11/64" / (mm) 55
• B: (inch) 15/16" / (mm) 24
• C: (inch) 15/32" / (mm) 12
• D: (inch) 15/16" / (mm) 24
• D diameter: (inch) 35/64" / (mm) 14
• E: (inch) 25/64" / (mm) 10
• M: (inch) 2 31/64" / (mm) 63

Caption:

• Working Load (WL): For nautical applications
• Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load. WLL = Breaking load / 5
• High Resistance (HR)
