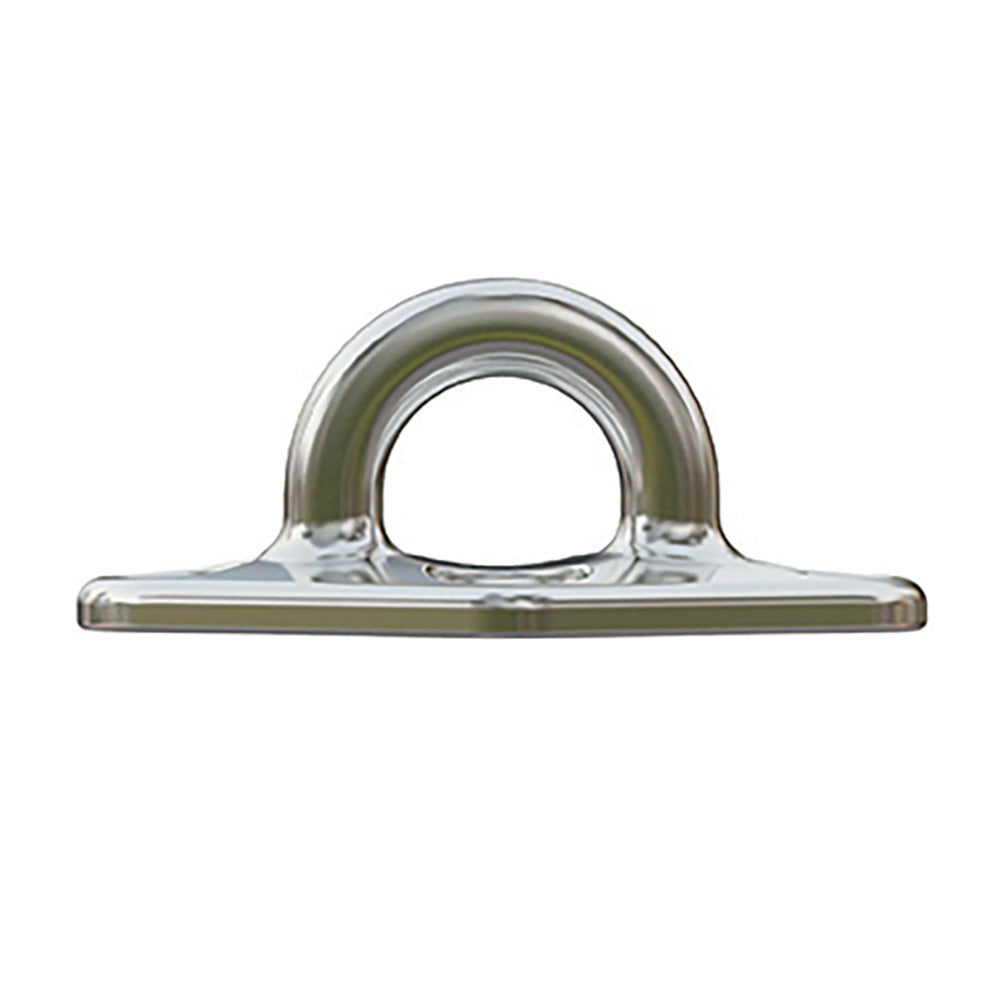

Wichard Diamond Pad Eye - Round - 60mm Length (2-23/64") - M5 Screw
SKU 99735·Accessories
$30.63
Diamond Pad Eye - Round - 60mm Length (2-23/64") - M5 ScrewFeatures: Mechanical resistance versus corrosion resistance ratio Optimized dimensions For M5 screw Applications: Mast foot blocks Reefing blocks Various fas...
1
In stock
·Ships from US distribution
Authorized dealerGenuine Wichard Marine
Secure checkoutPowered by Shopify
Expert supportTalk to a rigger
Will it fit your boat?
Size it to your vessel first
Run your loads through the Energy Planner to confirm this gear covers your daily draw — and see if you need more panels or battery.
Open the Energy Planner →Diamond Pad Eye - Round - 60mm Length (2-23/64") - M5 Screw
Features:
- Mechanical resistance versus corrosion resistance ratio
- Optimized dimensions
- For M5 screw
Applications:
- Mast foot blocks
- Reefing blocks
- Various fastenings
Specifications:
- Materials: Duplex stainless steel grade
- Working Load: (lb) 2645.5 / (kg) 1200
- Breaking Load: (lb) 7054.7 / (kg) 3200
- Weight: (lb) 0.13 / (g) 59
- W.L 1 (90 degrees): (lb) 2645.5 / (kg) 1200
- W.L 2 (45 degrees): (lb) 2425 / (kg) 1100
- W.L 3 (0 degrees): (lb) 2425 / (kg) 1100
- B.L 1 (90 degrees): (lb) 7054.7 / (kg) 3200
- B.L 2 (45 degrees): (lb) 6613.8 / (kg) 3000
- B.L 3 (0 degrees): (lb) 6613.8 / (kg) 3000
Dimensions:
- A: (inch) 2 23/64" / (mm) 60
- B: (inch) 1 13/16" / (mm) 46
- C: (inch) 1 1/2" / (mm) 38
- D: (inch) 15/16" / (mm) 24
- E: (inch) 37/64" / (mm) 14.5
- F: (inch) 3/4" / (mm) 19
Caption:
- Working Load (WL): For nautical applications
- Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load. WLL = Breaking load / 5
*Sold as an Individual
BrandWichard Marine
SKU99735
UPC768536045291
TypeAccessories
Weight0.15 lb
