Wichard Marine

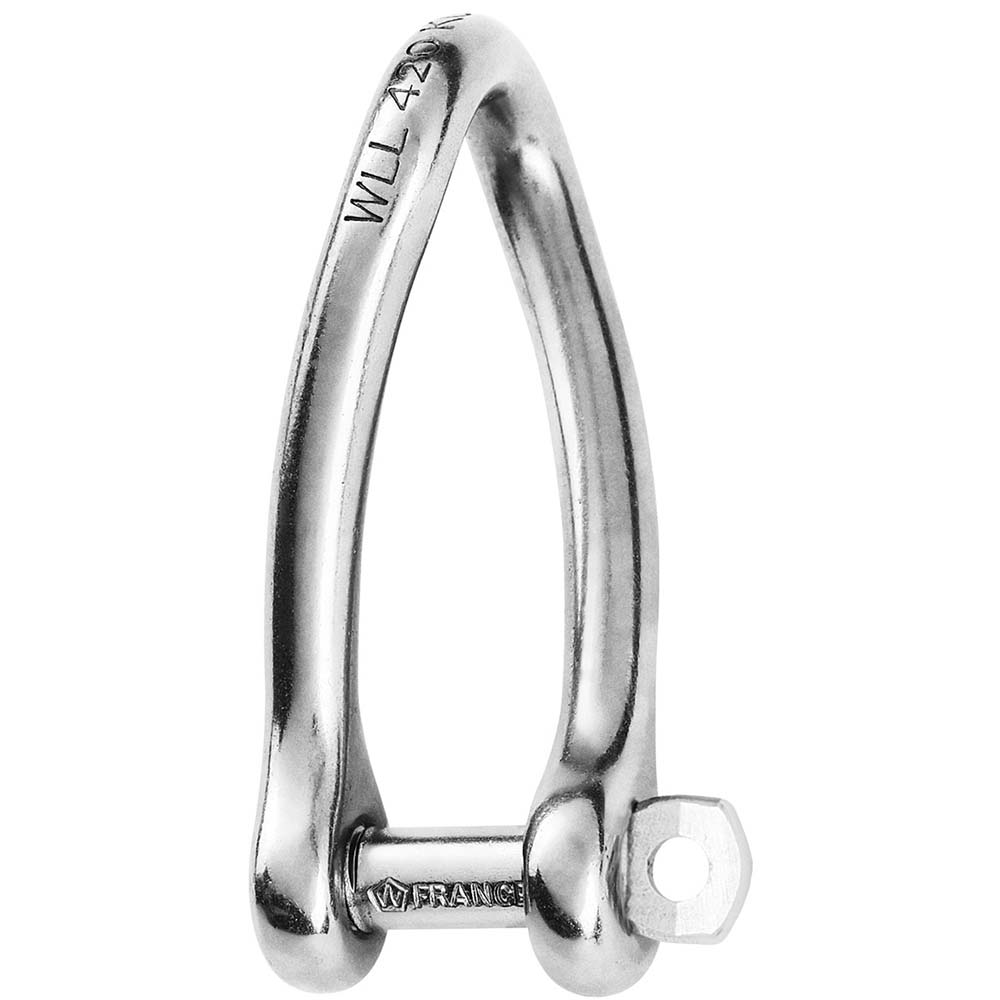

Wichard Captive Pin Twisted Shackle - Diameter 5mm - 3/16"
SKU 93120·Shackles/Rings/Pins
$34.65
Captive Pin Twisted Shackle - Diameter 5mm - 3/16"Features: Captive pin twisted shackle forged in grade 316L stainless steel The pin is connected to the body at all times even when opened The pin is locked into one of...
1
In stock
·Ships from US distribution
Authorized dealerGenuine Wichard Marine
Secure checkoutPowered by Shopify
Expert supportTalk to a rigger
Will it fit your boat?
Size it to your vessel first
Run your loads through the Energy Planner to confirm this gear covers your daily draw — and see if you need more panels or battery.
Open the Energy Planner →Captive Pin Twisted Shackle - Diameter 5mm - 3/16"
Features:
- Captive pin twisted shackle forged in grade 316L stainless steel
- The pin is connected to the body at all times even when opened
- The pin is locked into one of the indentations
- No risks of loosening due to vibrations
- Outstanding working and breaking loads
- Single-handed operation for more safety
- Part # 1422 is not suitable for lifting applications
Applications:
- Perfect for application where a 90° angle twist setup is required
- Often used to attach an unarticulated part (block on a rail) or on purchases
Specifications:
- Materials 316 stainless steel grade
- Working load (lb) 1050
- Breaking load (lb) 3300
- Weight (lb) 0.051
Dimensions (see 2nd image):
- A (inch) 1-29/64"
- B (inch) 25/64"
- C (inch) 15/64"
- D (inch) 7/16"
- D diameter (inch) 13/64"
- E (inch) 13/64"
- F (inch) 1-31/32"
- G (inch) 1-1/16"
BrandWichard Marine
SKU93120
UPC768536014228
TypeShackles/Rings/Pins
Weight0.05 lb
