Victron Blue Smart IP65 Charger - 6V/12V - 1.1A - 120V - 1-15

Blue Smart IP65 Charger - 6V/12V - 1.1A - 120V - 1-15P

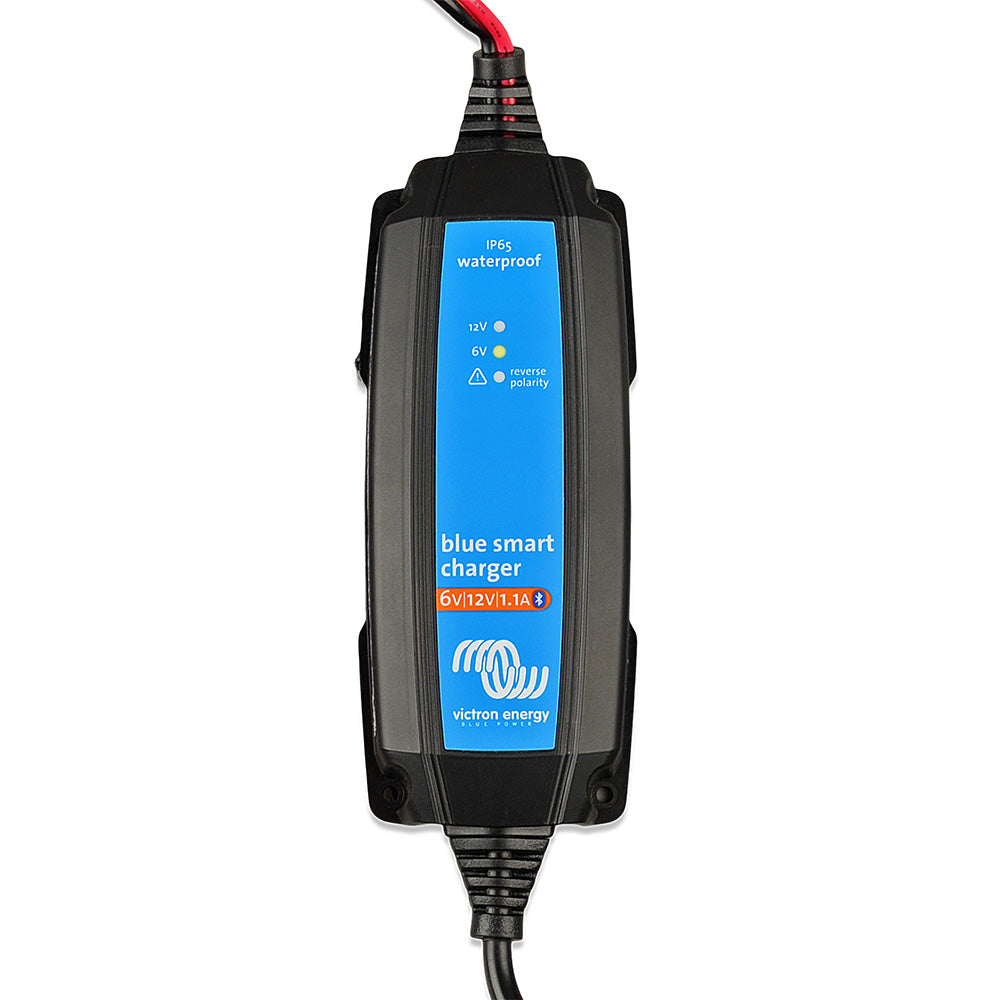

The Blue Smart IP65 Charger is the new professional battery charger with built-in Bluetooth. The Blue Smart IP65 Charger can be used on devices in the workshop and motor vehicles, such as (classic) cars; motorbikes; boats, and camper vans.

The battery is charged, smartly... to the perfect condition

The seven-step charging algorithm gets the best out of a battery. The charger gives the battery the power it needs, maintains its health, and ensures better performance... and longer life.

Recovery of deeply-discharged 'dead' batteries

Unlike other brands, the Blue Smart IP65 Charger will attempt to recharge a deeply-discharged battery by force-feeding it with a low current. Regular charging will then be resumed as soon as sufficient voltage is across the battery terminals.

Connect the battery with ease

The charger comes with both crocodile clips and M8 eyelets - making it easy to connect to the battery. If users wish, it can be left permanently connected.

Check the status of your battery remotely

The Blue Smart IP65 is equipped with built-in Bluetooth, so the status of the charger and the battery can be checked on a smartphone, tablet, or laptop. All settings of the charger can be configured with the VictronConnect app.

Specifications:

• Input Voltage & Frequency Range: 100 - 250VAC | 45 - 65Hz
• Efficiency: 82%
• Standby Power Consumption: <0,5 W
• Minimum Battery Voltage: Starts charging from down to 0 V
• Charge voltage 'absorption': Normal: 7,2 V | 14,4 V / High: 7,35 V | 14,7 V / Li-ion: 7,1 V | 14,2 V
• Charge Voltage 'float': Normal: 6,9 V | 13,8 V / High: 6,9 V | 13,8 V / Li-ion: Disabled
• Charge Voltage 'storage': Normal: 6,6 V | 13,2 V / High: 6,6 V | 13,2 V / Li-ion: 6,75 V | 13,5 V
• Charge Current: 1.1 A
• Low-Current Mode: 0,5A
• Temperature Compensation (lead-acid batteries only): 8 mV/°C | 16 mV/°C
• Power Supply Mode: Yes
• Back Current Drain: 0,1 Ah/month (140uA)
• Protection: Reverse polarity, Output short circuit, Over-temperature
• Operating Temp. Range: -30 to +50°C (full rated output up to 30°C)
• Humidity (non-condensing): Max 95%
• Charge Algorithm: 7-stage adaptive
• Bluetooth: 4dBm, 2402–2480 MHz

Enclosure Specifications:

• Battery-Connection: Black and red cable of 1,5 meter
• 230V AC connection: 1.5m cable with CEE 7/16 or AS/NZS 3112 plug
• Protection Category: IP65 (splash and dust proof)
• Weight: 0,4 kg
• Dimensions: 38 x 64 x 153 mm

Standards:

• Safety: EN 60335-1, EN 60335-2-29
• Emission; EN 55014-1, EN 61000-6-3, EN 61000-3-2
• Immunity: EN 55014-2, EN 61000-6-1, EN 61000-6-2, EN 61000-3-3
