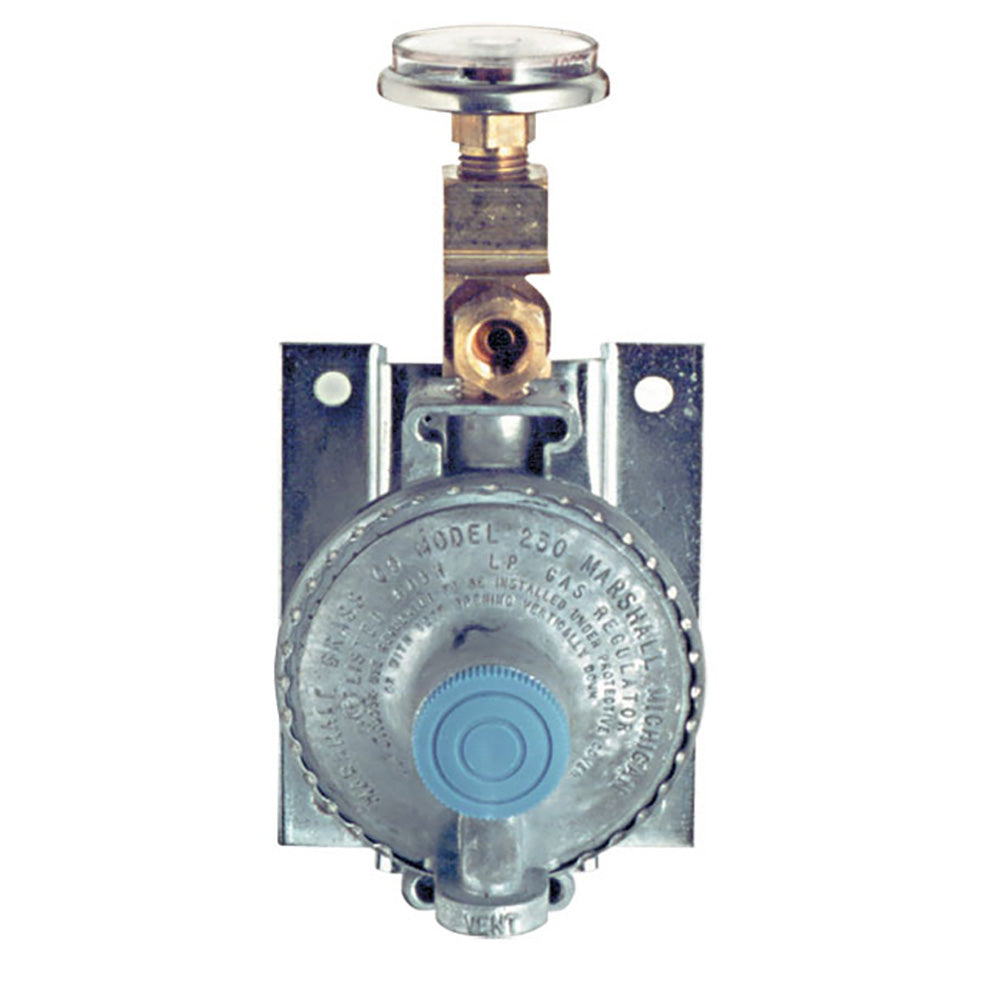

Trident Marine Single Stage Regulator w/300 PSI Pressure Gauge w/Wall Mount
Single Stage Regulator with 300 PSI Pressure Gauge with Wall MountUL Listed, die cast body with 3/8” FTP outlet is assembled with 300 psi leak test gauge (low profile, water tight, stainless steel), and wall mount bra...
Size it to your vessel first
Run your loads through the Energy Planner to confirm this gear covers your daily draw — and see if you need more panels or battery.
Open the Energy Planner →Single Stage Regulator with 300 PSI Pressure Gauge with Wall Mount
UL Listed, die cast body with 3/8” FTP outlet is assembled with 300 psi leak test gauge (low profile, water tight, stainless steel), and wall mount brackets. Connect pigtail hose (item 1014-1415-20 or 1014-1401-20) to regulator inlet and one or more cylinders (one at a time). By mounting this low-pressure regulator on the wall, it saves space in the LPG locker, especially when adding a solenoid valve, manifold, gas grill connection tee, etc. 100% leak-tested – meets ABYC Marine LPG Standard.
Specifications:
- Dimensions: 6.5” H x 3.25” W x 3.25”D
- 100,000 BTU per hour
Good to know
- Genuine Trident Marine product from an authorized dealer.
- Ships from US distribution.
- Questions about fit or installation? Contact us before you order.
