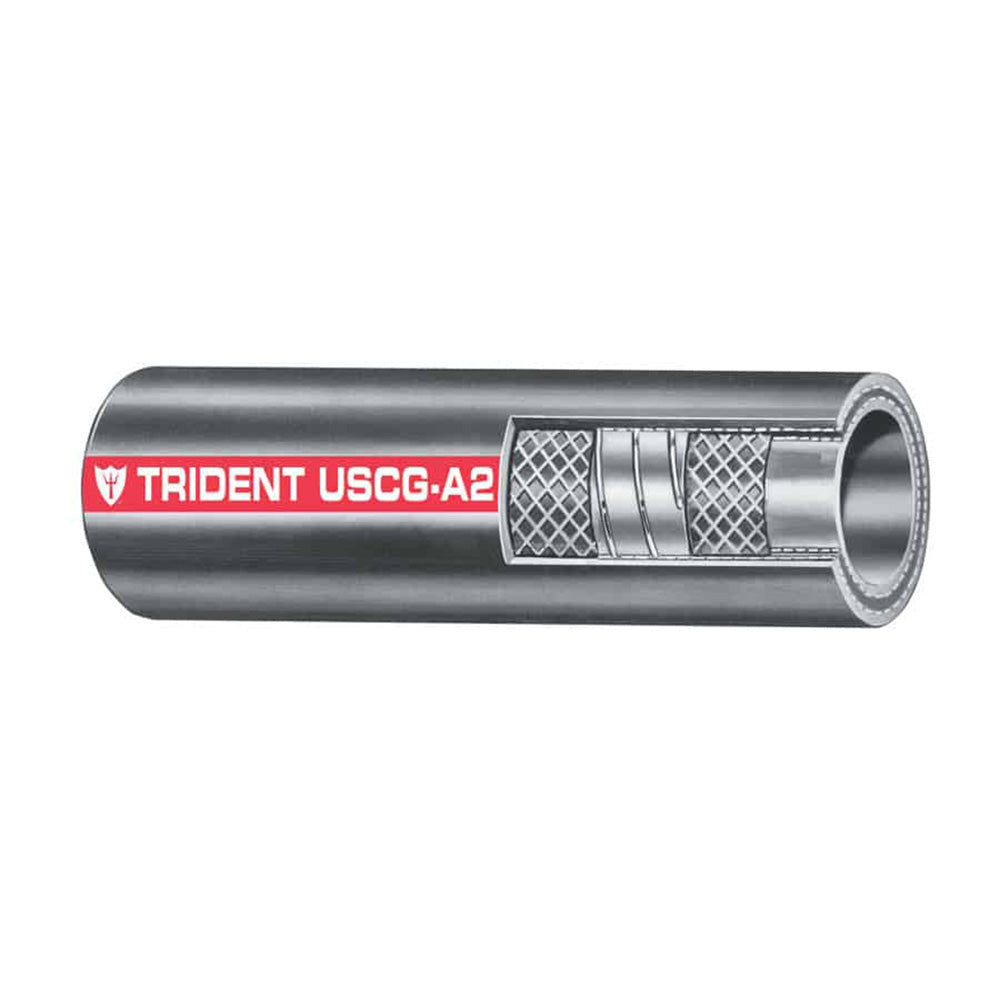

Trident Marine 1-1/2" x 50' Coil Type A2 Fuel Fill Hose
1-1/2" x 50' Coil Type A2 Fuel Fill HoseTrident 1-1/2" ID A2 fuel fill hose for gasoline (including ethanol blends) and diesel (including bio diesel blends). Features: This hose is built with the best fuel, fire, and...
Size it to your vessel first
Run your loads through the Energy Planner to confirm this gear covers your daily draw — and see if you need more panels or battery.
Open the Energy Planner →1-1/2" x 50' Coil Type A2 Fuel Fill Hose
Trident 1-1/2" ID A2 fuel fill hose for gasoline (including ethanol blends) and diesel (including bio diesel blends).
Features:
- This hose is built with the best fuel, fire, and age-resistant formulation
- Provides extraordinary resistance to aging, fire, heat, cold, and the ozone
- Also, provides excellent bend-ability
Application:
- Marine Fuel Hose for fill and vent plus diesel distribution
- Approved, for all marine fuels including gasoline, alcohol blends, diesel and bio-diesel
Construction:
- Tube & Cover: NBR / Neoprene
- Reinforcement: High tenacity polyester 2 spiral, spring steel helix
- Temperature Range: -20°F to 212°F (-20ºC to 100ºC)
- Length: 50 ft. (15.24 m) Coil
Specifications:
- Inner Diameter: (inch) 1/2" / (mm) 38
- Outer Diameter: (inch) 2 / (mm) 51
- Wall: (inch) 0.25 / (mm) 6.4
- Working Pressure: (psi) 60 / (mpa) 0.41
- Bend Radius: (inch) 5.5" / (mm) 140
*The #327 series exceeds ABYC H-24 & H-33, SAE J1527, ISO 7840, & USCG Type A2; and is NMMA Type Accepted, CE certified, and Lloyds Registry Type Approved
