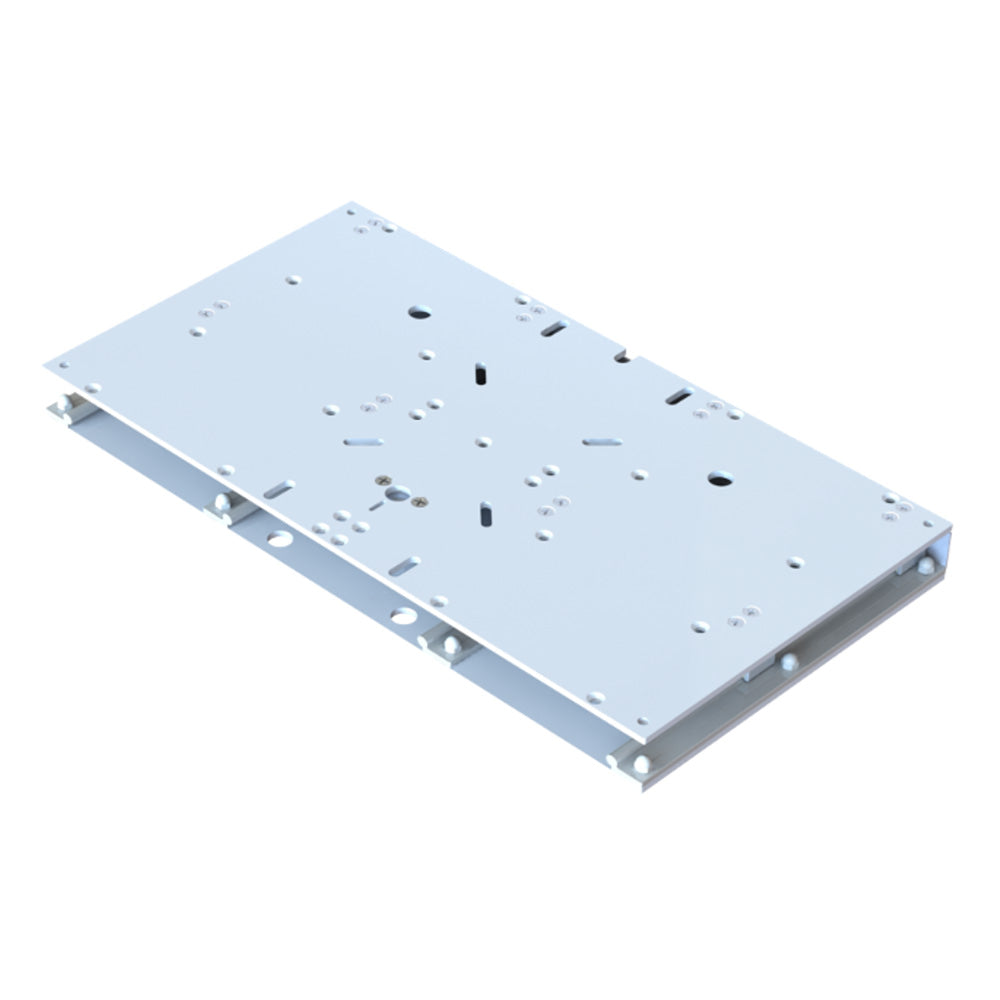

TACO 13-1/8" x 24" Electric Seat Slide
13-1/8" x 24" Electric Seat SlidePerfect for seats and benches 29" to 40" wide, this 13-1/8" X 24" electric seat slide travels up to 5" and can be stopped anywhere between its fully extended and retracted positions. C...
Size it to your vessel first
Run your loads through the Energy Planner to confirm this gear covers your daily draw — and see if you need more panels or battery.
Open the Energy Planner →13-1/8" x 24" Electric Seat Slide
Perfect for seats and benches 29" to 40" wide, this 13-1/8" X 24" electric seat slide travels up to 5" and can be stopped anywhere between its fully extended and retracted positions. Contact your TACO Sales or Customer Service Representative for more information.
Features:
- Ideal for seats 29" to 40"
- Features 5" of travel distance (stroke length)
- Water-resistant IP66 rating
- Meets H31 testing standards for seat applications
- Precision-machined 6000-series aluminum chassis
- Rail/Linear Glide systems are self-lubricating, dirt-resistant, quiet, corrosion-free, lightweight, and shock resistant
- Low profile with secure fit with universal mounting bolt pattern on both pedestal and box applications
- Quite an operation ≤ 58dB
- Electric actuator
- Self-locking at any given position (at rated loads)
- No racking in any direction due to precision tolerances in the track/glide system
- All electric seat slides and components are acid-etched clear anodized
- Made in the USA
- 3-year limited warranty
Specifications:
- 12V DC 9 AMP Max current
- Max load 3500N
- Push and pull force of 1500N
- IP66 Rated
- Speed 13.5 mm/Sec @ 1500N
