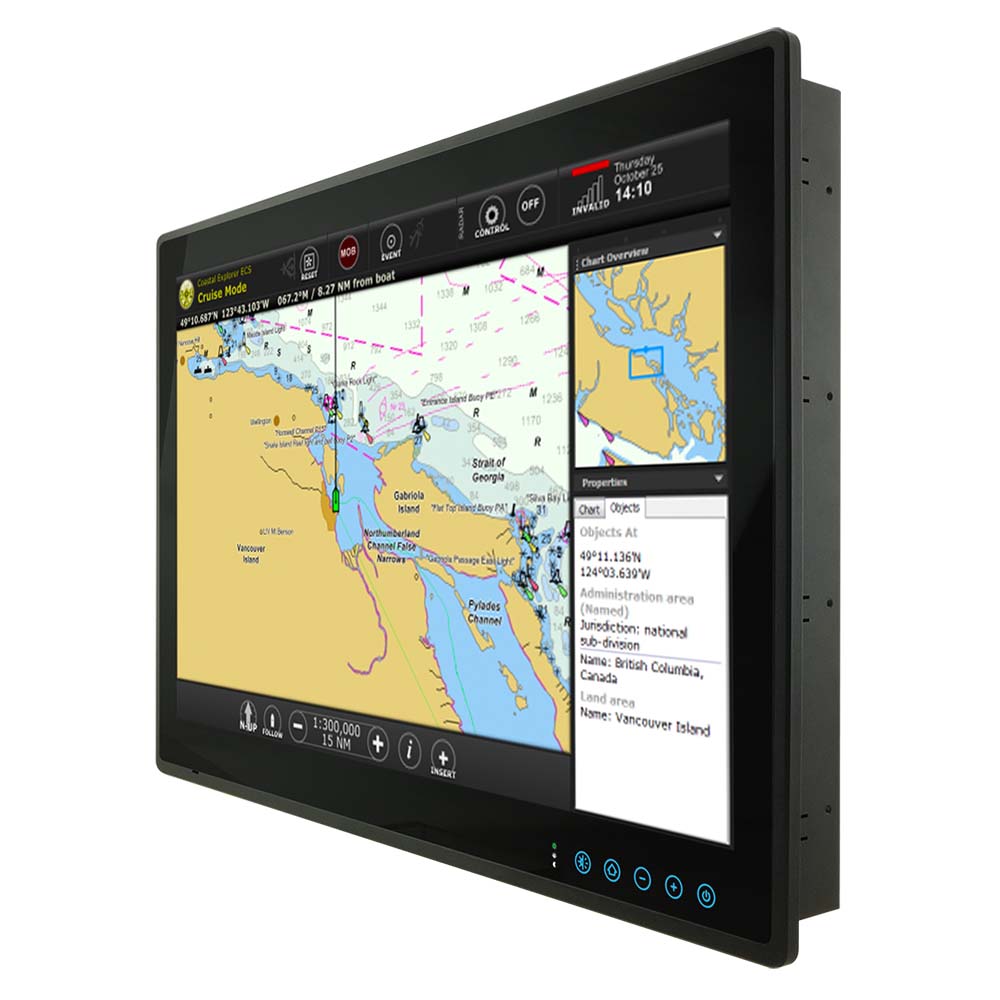

Seatronx 24" Commercial Touch Screen Display
24" Commercial Touch Screen DisplayElectronic Chart Display and Information Systems (ECDIS) are designed to meet International Maritime Organization (IMO) compliance regulations. These displays are color calibrated fo...
Size it to your vessel first
Run your loads through the Energy Planner to confirm this gear covers your daily draw — and see if you need more panels or battery.
Open the Energy Planner →24" Commercial Touch Screen Display
Electronic Chart Display and Information Systems (ECDIS) are designed to meet International Maritime Organization (IMO) compliance regulations. These displays are color calibrated for optimal electronic chart viewing and feature capacitive touch keys for quick function access and display control (support ECDIS day, dusk, and night mode switching).
Features:
- Mounting - Panel Mount , Vesa Mount
- Dimensions - 23.43" x 15.16" x 2.51"
- Cutout Dimensions - 22.51" x 14.29"
- Projected Capacitive touch
- Optional ECDIS Color Calibration
- 2x 2W Speakers
- 76 dB - 80 dB buzzer
Technical Specifications:
- Diagonal (active area) Inch - 24"
- Native Resolution (Pixels) - 1920x1080
- Contrast Ratio - 5000:1
- Brightness - 350
- Viewing Angle (left, right) - 89, 89
- Viewing Angle (up, down) - 89,89
- Backlight Dimming - -0 (3 Stage ECDIS Option)
- Inputs - 2 x VGA, 1 x DVD-D, 1 x HDMI 2.0, 1 x HDMI 1.4, 1 x Display Port 1.2
- Power Source - 9-36VDC Isolated power supply 70W (Max)
- Power on/off dimming control - Front Bezel
- IP Rating - IP65 Front
- Operating Temperature (°C) - -15 to 55
Good to know
- Genuine Seatronx product from an authorized dealer.
- Ships from US distribution.
- Questions about fit or installation? Contact us before you order.
