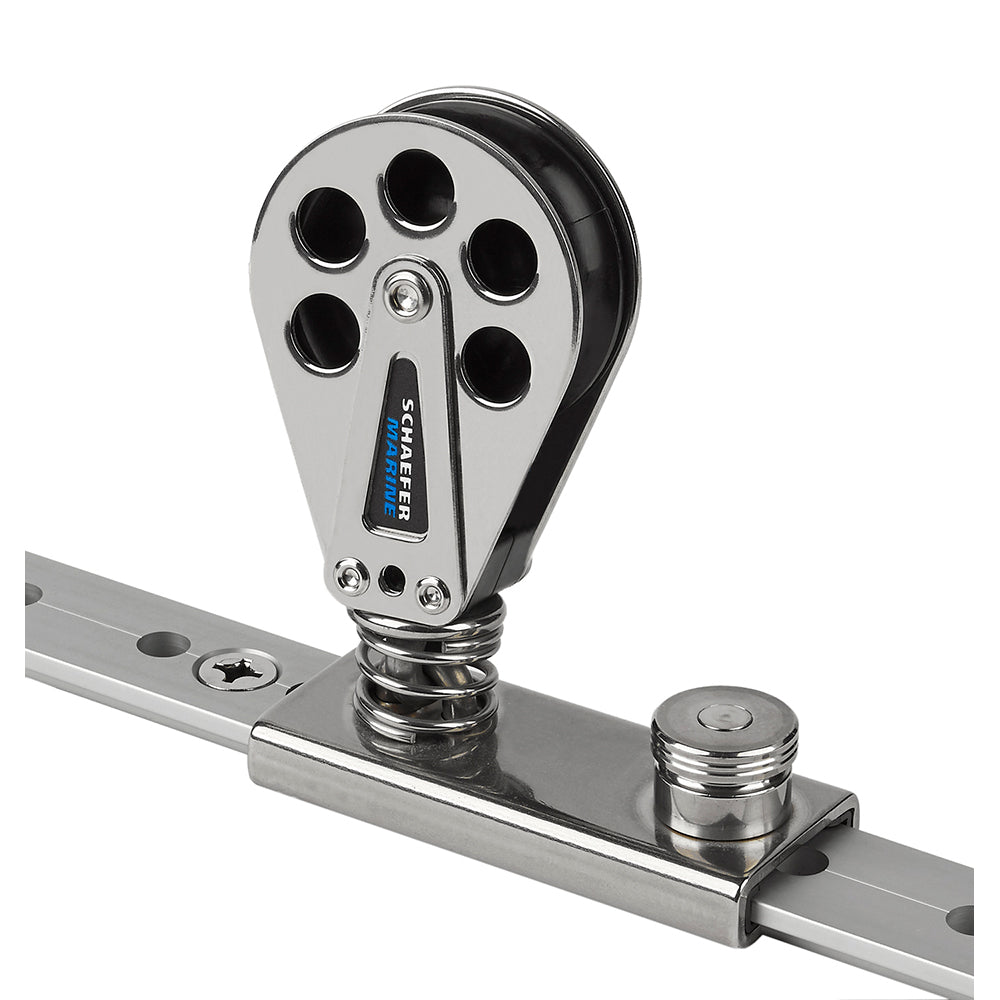

Schaefer Spring Loaded/Lined Slide/Stainless Steel f/1-1/4" T-Track
Spring Loaded/Lined Slide/Stainless Steel for 1-1/4" T-TrackDelrin™ sheave ensures smooth operation and high safe working load. Stainless Steel cheeks and stainless steel slider ensure reliability. Polyethylene liner ...
Size it to your vessel first
Run your loads through the Energy Planner to confirm this gear covers your daily draw — and see if you need more panels or battery.
Open the Energy Planner →Spring Loaded/Lined Slide/Stainless Steel for 1-1/4" T-Track
Delrin™ sheave ensures smooth operation and high safe working load. Stainless Steel cheeks and stainless steel slider ensure reliability. Polyethylene liner and pin stop allow for easy adjustment.
Specifications:
- Track Size 1-1/4" x 3/16" (32 mm x 5 mm)
- Max. Boat Length 33' (10 m)
- Max. Boat Weight 12000 lbs. (5455 kg)
- Max. Sail Area 520 sq. ft. (48 m2)
- Sheave Diameter 2-3/8" (60 mm)
- Max Line 1/2" (12 mm)
- Length 4" (102 mm)
- Width 1-9/16" (39 mm)
- Height 4-15/16" (126 mm)
- Bearing Height 2-3/8" (67 mm)
- SWL 2250 lbs. (1020 kg)
- Weight 14 oz. (397 g)
