Schaefer Marine

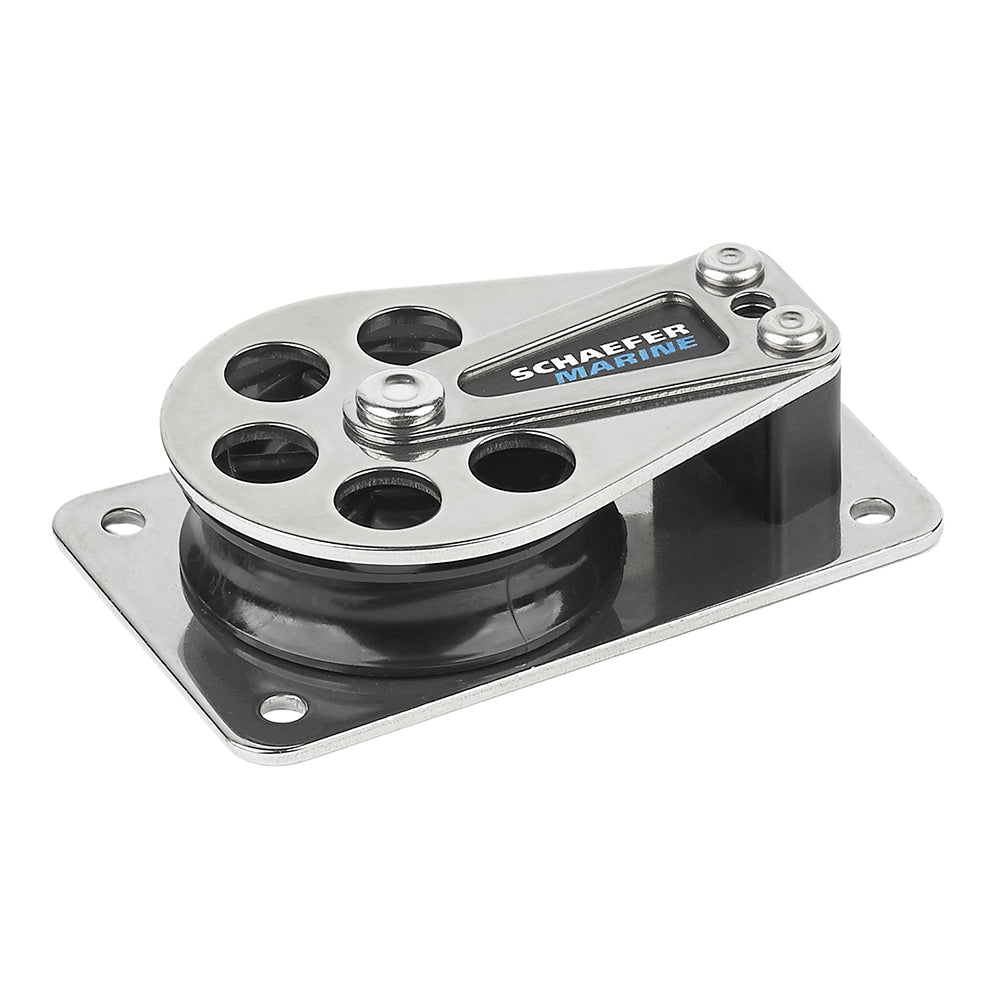

Schaefer Series 5 Flat Base Cheek Block - Stainless Steel Cheeks
SKU 74727·Blocks
$126.55
Series 5 Flat Base Cheek Block - Stainless Steel CheeksSeries 5 Cheek Block with Stainless Steel cheek. Delrin™ sheave ensures smooth operation and high safe working load. Stainless steel base distributes loads to a l...
1
In stock
·Ships from US distribution
Authorized dealerGenuine Schaefer Marine
Secure checkoutPowered by Shopify
Expert supportTalk to a rigger
Will it fit your boat?
Size it to your vessel first
Run your loads through the Energy Planner to confirm this gear covers your daily draw — and see if you need more panels or battery.
Open the Energy Planner →Series 5 Flat Base Cheek Block - Stainless Steel Cheeks
Series 5 Cheek Block with Stainless Steel cheek. Delrin™ sheave ensures smooth operation and high safe working load. Stainless steel base distributes loads to a large surface area.
Specifications:
- Sheave Diameter 2" (51 mm)
- Max. Line 7/16" (11 mm)
- Length 3-5/8" (92 mm)
- Width 2-7/32" (57 mm)
- Height 7/8" (22 mm)
- Fasteners (4) #10 - RH (5 mm)
- C/C 3" (76 mm)
- SWL 1750 lbs. (795 kg)
- Weight 6.9 oz. (196 g)
- Max Line 7/16" (11mm)
BrandSchaefer Marine
SKU74727
UPC740507011962
TypeBlocks
Weight0.5 lb
