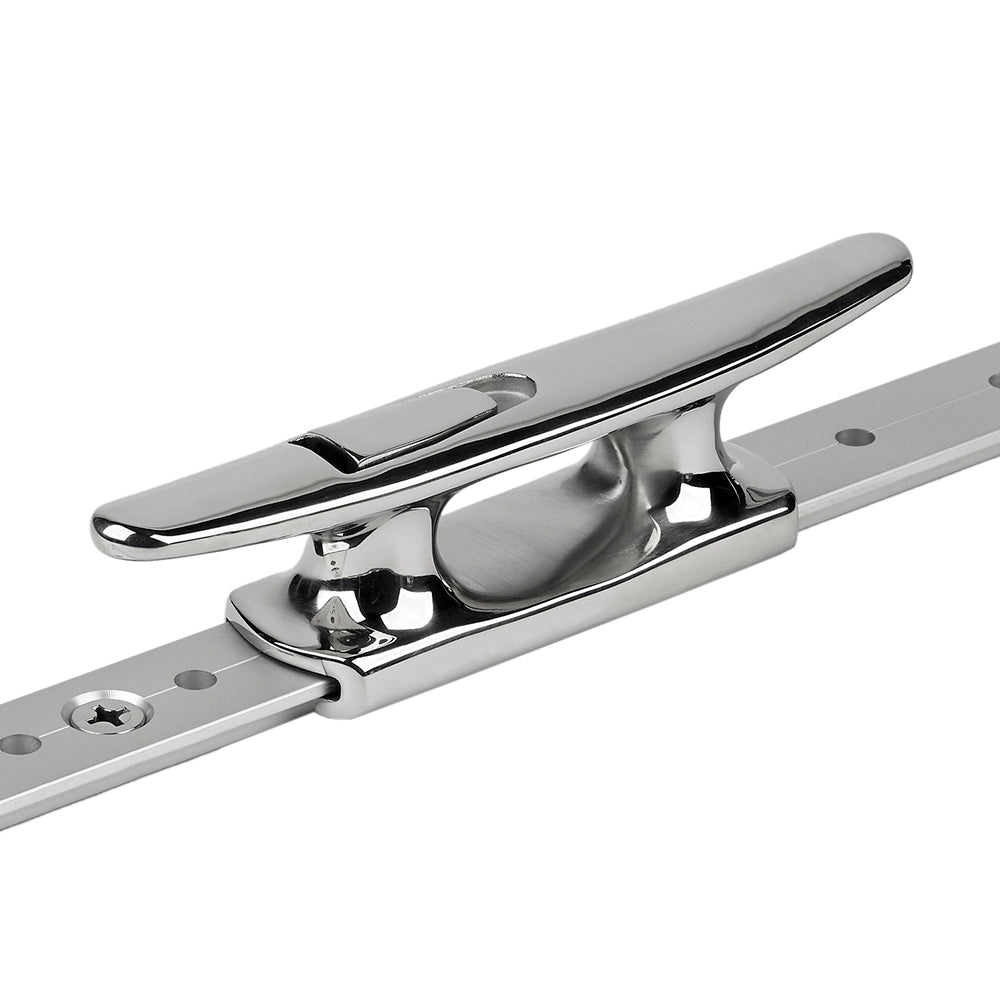

Schaefer Mid-Rail Chock/Cleat Stainless Steel - 1-1/4"
Mid-Rail Chock/Cleat Stainless Steel - 1-1/4"Chock cleats will fit Schaefer T-Track measuring 1-1/4" wide, 7/16" overall height, 3/16" "T" thickness and a base width of 11/16". They will not fit earlier versions of T-...
Size it to your vessel first
Run your loads through the Energy Planner to confirm this gear covers your daily draw — and see if you need more panels or battery.
Open the Energy Planner →Mid-Rail Chock/Cleat Stainless Steel - 1-1/4"
Chock cleats will fit Schaefer T-Track measuring 1-1/4" wide, 7/16" overall height, 3/16" "T" thickness and a base width of 11/16". They will not fit earlier versions of T-Track or some competitors models.
Specifications:
- Length 7-1/2" (190 mm)
- ID 1-3/4" (45 mm)
- Line Size 5/8" (16 mm)
- Track 1-1/4" x 3/16" (31 mm x 4.6 mm)
- Pin. Size .355
- SWL 4500 lbs. (2045 kg)
- Weight 1.5 lbs. (.68 kg)
Good to know
- Genuine Schaefer Marine product from an authorized dealer.
- Ships from US distribution.
- Questions about fit or installation? Contact us before you order.
What's in the box
