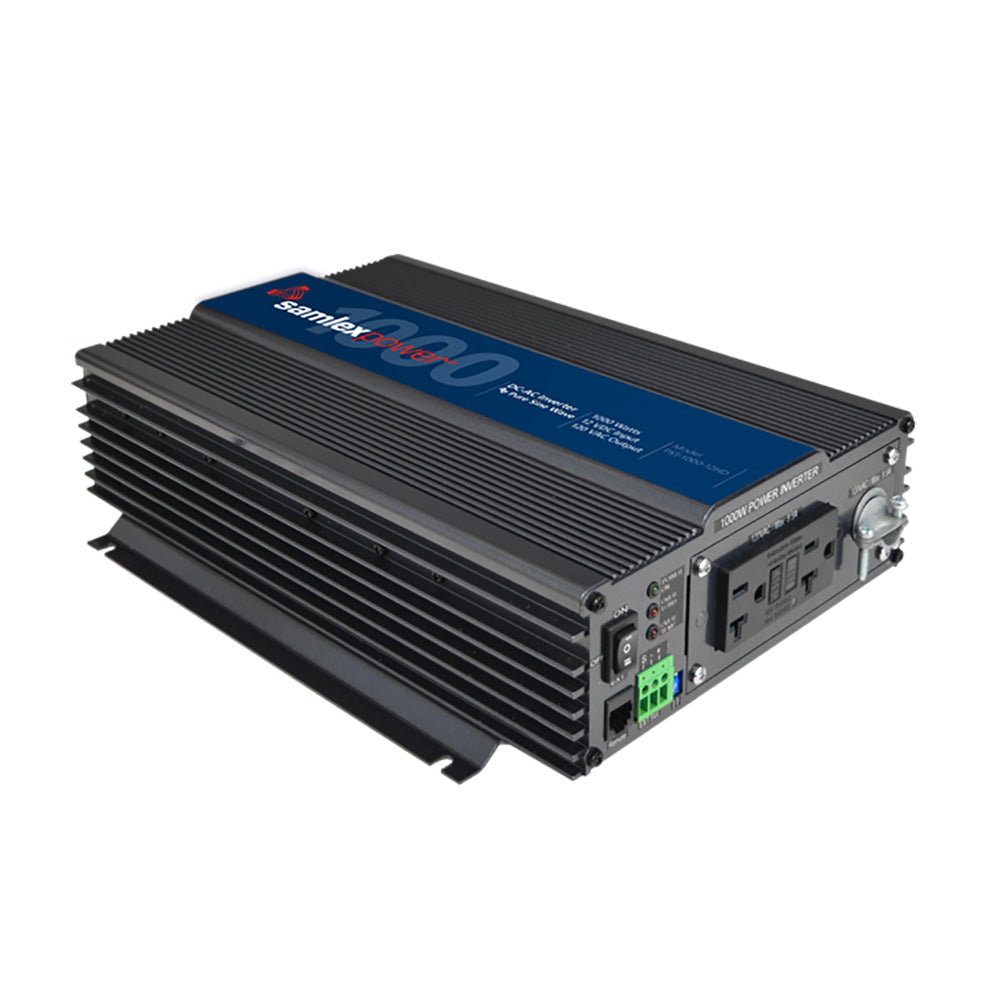

Samlex PST-1000-12HD Pure Sine Wave Inverter 12V Input 120 VAC Output 1000W
PST-1000-12HD Pure Sine Wave Inverter 12V Input 120 VAC Output 1000WPST-1000-12HD is a pure sine inverter and features a hardwire connection for flexibility in installation, selectable low voltage shutdown (battery pr...
Size it to your vessel first
Run your loads through the Energy Planner to confirm this gear covers your daily draw — and see if you need more panels or battery.
Open the Energy Planner →PST-1000-12HD Pure Sine Wave Inverter 12V Input 120 VAC Output 1000W
PST-1000-12HD is a pure sine inverter and features a hardwire connection for flexibility in installation, selectable low voltage shutdown (battery protection), and a low voltage alarm and alarm buzzer disable switch. PST-1000-12HD is user-friendly, easy to install, and has a small footprint. AC power is available from a NEMA-20R GFCI duplex outlet on the front panel. Safety certified to UL standards.
All Samlex PST series pure sine inverters are high-efficiency, offer quiet operation, low-idle power draw, GFCI-protected outlets, and a universal protection circuit – low voltage, over temperature, overload, and short circuit.
Features:
- Selectable low voltage shutdown settings
- Enable/ Disable Buzzer DIP Switch
- Low voltage alarm and alarm buzzer disable switch
- Commercial-grade, suitable for heavy-duty loads, long periods of continuous operation and emergency backup
- Hardwire connection for choice & flexibility in installation
- GFCI-protected AC outlets
- Compact design, ideal for small spaces
- Wide operating DC input range: 10.0 – 18.0 VDC
- Wide operating temperature range: -13°F to 131°F / -25°C to +55°C
- Ignition ON/OFF – 1 wire input
- Temperature-controlled cooling fan – reduces energy consumption
- Universal Protection Circuit – Low Voltage, Over Temperature, Overload, and Short Circuit
- Low idle power draw
- Optional remote control (sold separately): Model RC-15A
Specifications:
- Input: 12 VDC
- Output: 120 VAC
- Watts: 1000 Watts
- Surge: 2000 Watts
- Weight: 8.33 (lbs)
- Weight: 3.78 (kg)
- Dimensions: 13.11 x 9.37 x 3.23 (in)
- Dimensions: 333 x 238 x 82 (mm)
- Safety: ETL Listed. Conforms to UL Std.
- 3-Year Limited Warranty
Applications:
- Service vehicles
- Mobile Offices
- Boats
- Recreation Vehicles, Camping
- Telecommunication
- Fieldwork/Construction sites
- Solar power systems
- Emergency backup power
- Home electronics: TV, VCR, video games
- Computers, printers
