Samlex 20A Solar Charge Controller - 12/24V
20A Solar Charge Controller - 12/24VThe MSK-20A is a 3-stage intelligent series-type PWM charge controller. It is based on an advanced design using a microcontroller for digital accuracy and fully automatic operation....
Size it to your vessel first
Run your loads through the Energy Planner to confirm this gear covers your daily draw — and see if you need more panels or battery.
Open the Energy Planner →20A Solar Charge Controller - 12/24V

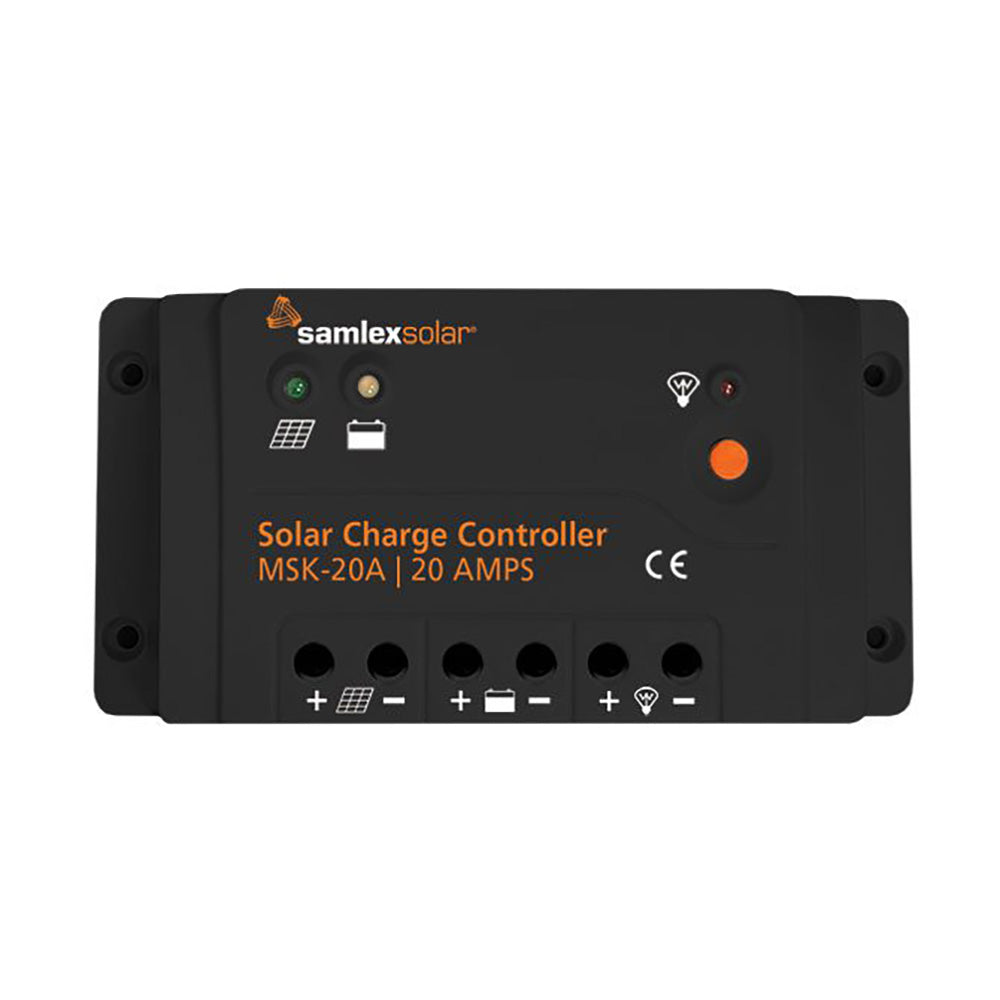

The MSK-20A is a 3-stage intelligent series-type PWM charge controller. It is based on an advanced design using a microcontroller for digital accuracy and fully automatic operation. It can be used for 12V or 24V battery systems.
Features:
- 3-stage intelligent Series Type PWM charging
- Automatic battery voltage detection: 12V / 24V
- 100% input and output within -35 degrees C to +50 degrees C
- Electronic protections: overheating, overcharging, over-discharge, overload, and short circuit
- Reverse protection: any combination of solar module and battery
- Optional MSK-TS External Temperature Sensor
Applications:
- Recreational and service vehicles
- Off-grid grid
- Portable charging kits
- Boats and marine crafts
- Fieldwork or mobile offices
- Telecommunications
Specifications:
- Input: 12V / 24V
- Amps: 20 amps
- Weight: 0.66 (lbs)
- Weight: 0.3 (kgs)
- Dimensions: 6.28 x 3.2 x 1.89 in.
- Dimensions: 159.6 x 81.4 x 47.88 (mm)
Good to know
- Genuine Samlex America product from an authorized dealer.
- Ships from US distribution.
- Questions about fit or installation? Contact us before you order.
What's in the box
