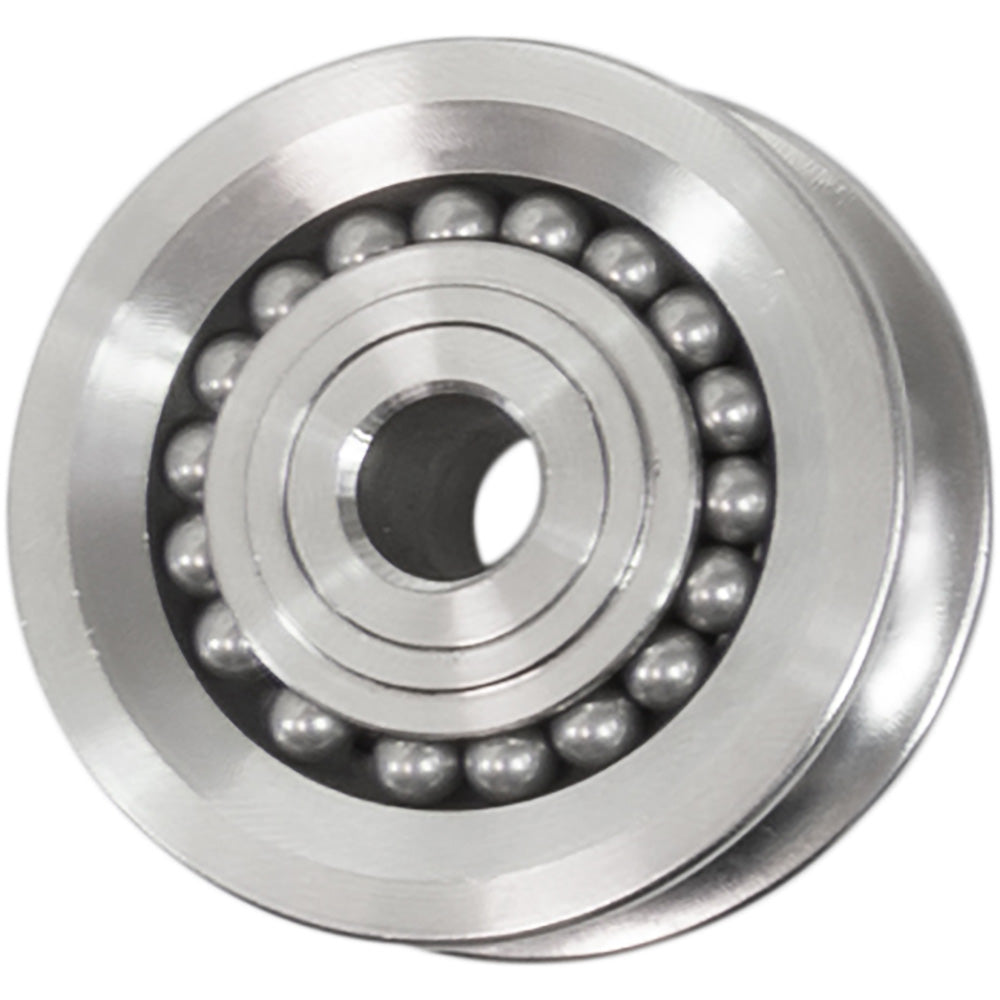

Ronstan Series 40 Orbit BB Sheave HHL
Series 40 Orbit BB Sheave HHLHigh Load versions are designed specifically for any application where high dynamic or static loads are expected. They feature a high-strength grade 2205 stainless steel sheave & hub t...
Size it to your vessel first
Run your loads through the Energy Planner to confirm this gear covers your daily draw — and see if you need more panels or battery.
Open the Energy Planner →Series 40 Orbit BB Sheave HHL
High Load versions are designed specifically for any application where high dynamic or static loads are expected. They feature a high-strength grade 2205 stainless steel sheave & hub together with a triple bearing race to maintain low friction at very high loads.
Specifications:
- Sheave
- Captive HHL
- Width: 15.5mm/5/8"
- Sheave Diameter: 40mm/1-9/16"
- Maximum Rope: 10mm/3/8"
- M.W.L.: 1500kg/3310lbs
- Weight: 77g/2.7oz
