Ronstan

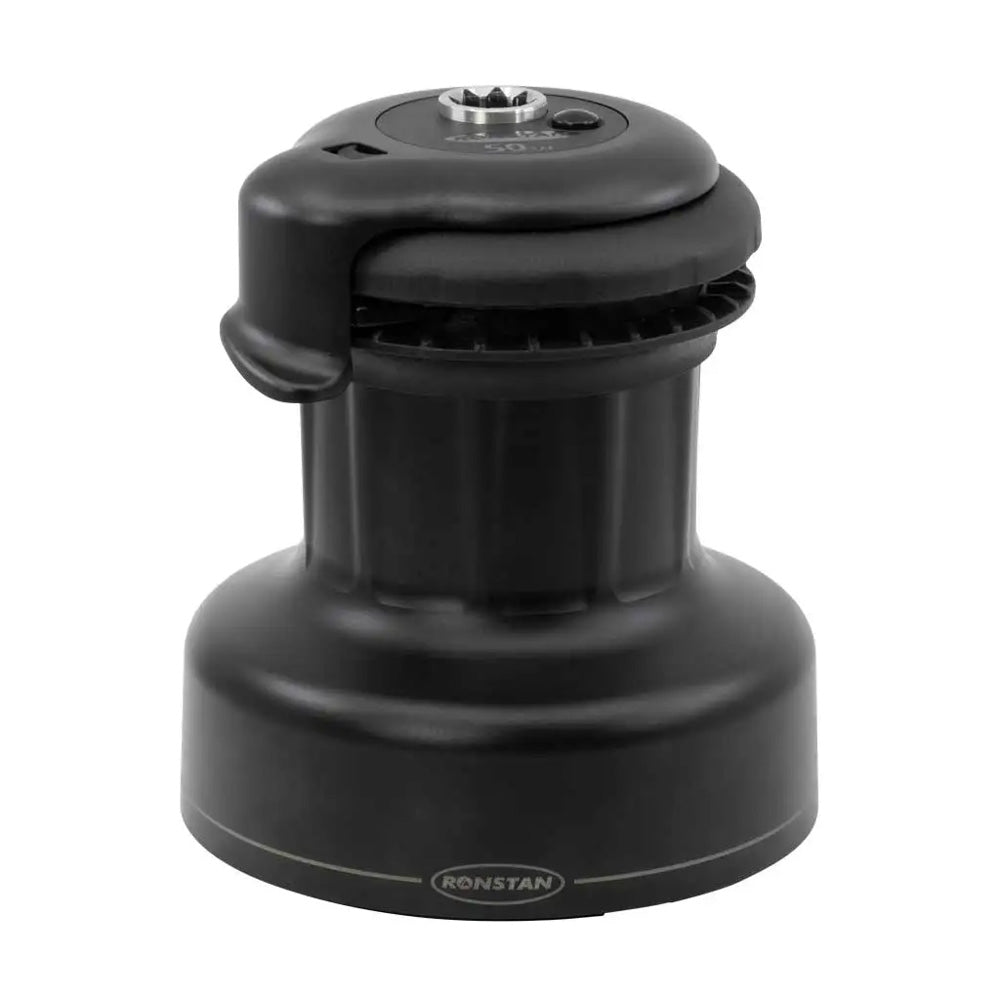

Ronstan 50QT Orbit Winch, 3-Speed, QuickTrim
SKU 111670·Winches
$3,329.10
50QT Orbit Winch, 3-Speed, QuickTrimLightweight aluminium winch with QuickTrim™ self-tailer, 3 speeds, and Power Ribs™ for controlled grip on the line at all times.FEATURES Sprung self-tailing jaws to accept 8 - 14mm ...
1
Sold out
·Ships from US distribution
Authorized dealerGenuine Ronstan
Secure checkoutPowered by Shopify
Expert supportTalk to a rigger
Will it fit your boat?
Size it to your vessel first
Run your loads through the Energy Planner to confirm this gear covers your daily draw — and see if you need more panels or battery.
Open the Energy Planner →50QT Orbit Winch, 3-Speed, QuickTrim
Lightweight aluminium winch with QuickTrim™ self-tailer, 3 speeds, and Power Ribs™ for controlled grip on the line at all times.
FEATURES
- Sprung self-tailing jaws to accept 8 - 14mm line.
- QuickTrim™ patented self-tailing feature for rapid sail trim and smooth adjustment.
- Ball bearings carry the thrust loads, roller bearings carry the radial loads of the drum to minimise rotational friction.
- Proven gearing configuration.
- Power Rib™ ensures a controlled grip on the line at all times, whether trimming or easing. Minimal rope wear compared to more abrasive drum surface finishes/
- Machined aluminium drum – stronger and lighter than traditional cast aluminium drums.
- Lightweight aluminium centre stem provides significant weight savings over traditional bronze stems.
- Low line entry due to gearing configuration geometry.
Specifications
- Weight (lb) 13.01
- Max Pull (lb) 2980
- Gear ratio 1st speed 1.4 : 1
- Gear ratio 2nd speed 3.0 : 1
- Gear ratio 3rd speed 10.8 : 1
- Power ratio 1st speed 6.3 : 1
- Power ratio 2nd speed 13.4 : 1
- Power ratio 3rd speed 49.3 : 1
BrandRonstan
SKU111670
TypeWinches
