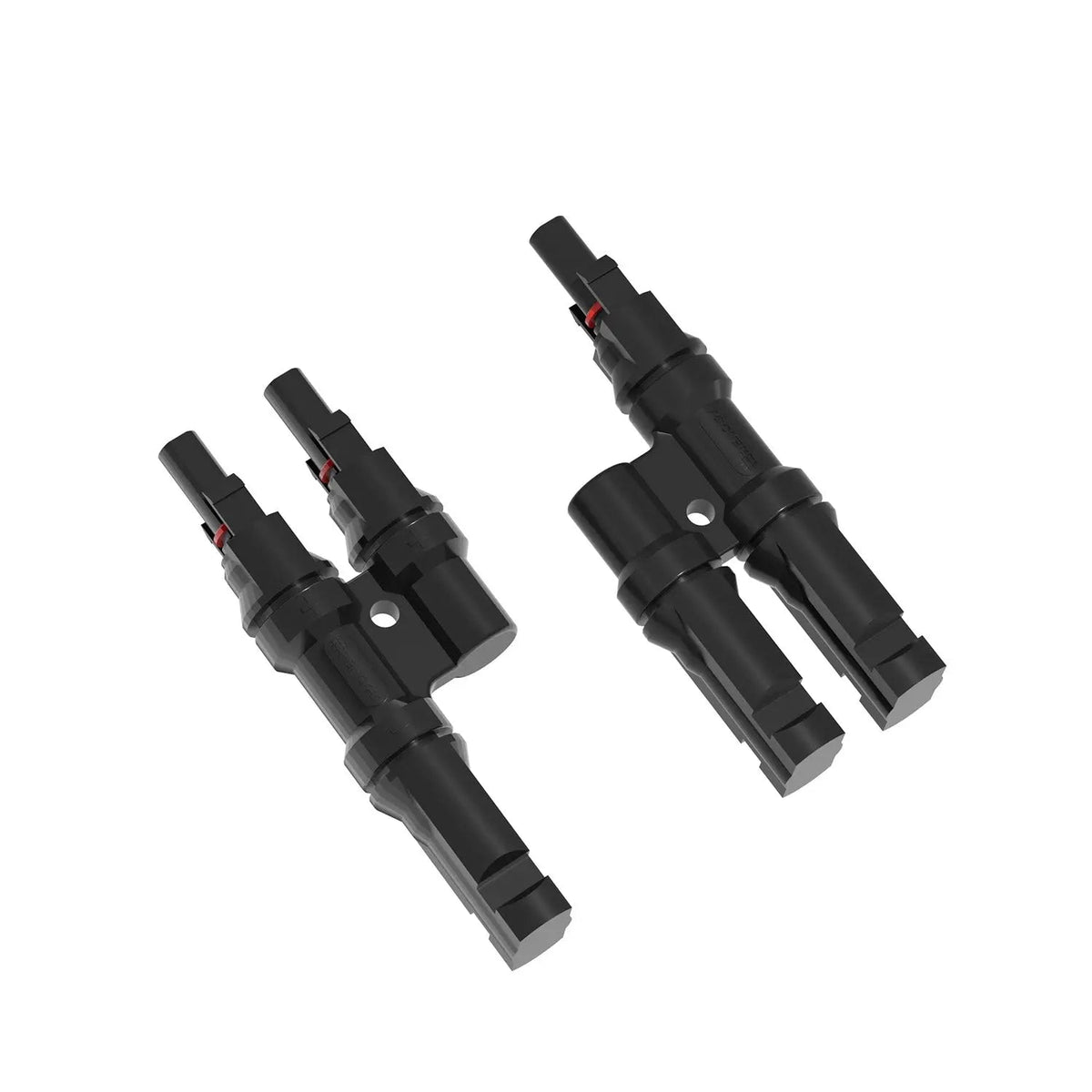

Solar Y Branch Connectors MMF+FFM Pair

Solar Y Branch Connectors are used for parallel wiring solar panels (PV modules). Sold as a pair, these “Y-Connectors” will maintain the voltage of the solar panel configuration to match the battery size. These connectors are solely compatible with Solar connectors and come with one male (MMF) and one female (FFM) connector.

Description

Solar Y Branch Connectors are used for parallel wiring solar panels (PV modules). Sold as a pair, these “Y-Connectors” will maintain the voltage of the solar panel configuration to match the battery size. These connectors are solely compatible with Solar connectors and come with one male (MMF) and one female (FFM) connector. Use these Solar Branch Connectors to make tight, waterproof connections.

NOTE

• If you have any questions regarding this product, please call us at 1 (909) 287-7111 or or contact us for troubleshooting assistance.
• More questions about your off-grid power system? Learn more from Renogy Learning Center

Key Features

• Hard plastic
• One FFM and one MMF

Package Includes

Solar Y Branch Connectors MMF+FFM Pair

1 x

Solar Y Branch Connectors MMF+FFM Pair Withstanding voltage: 1000V DC(TUV), 600V(UL) Contact Resistance: 1m Protection Class: Class II Temperature: -40°F to +194°F Protection Degree: IP67, mated Unmating Force:147.51Ft·lb Insulation Material: PC/PA Contact Material: Copper, silver plated Flame Class: UL94-V0 or UL94-5VA Rated Current: 50A Warranty Information: Accessories 1-year material warranty
