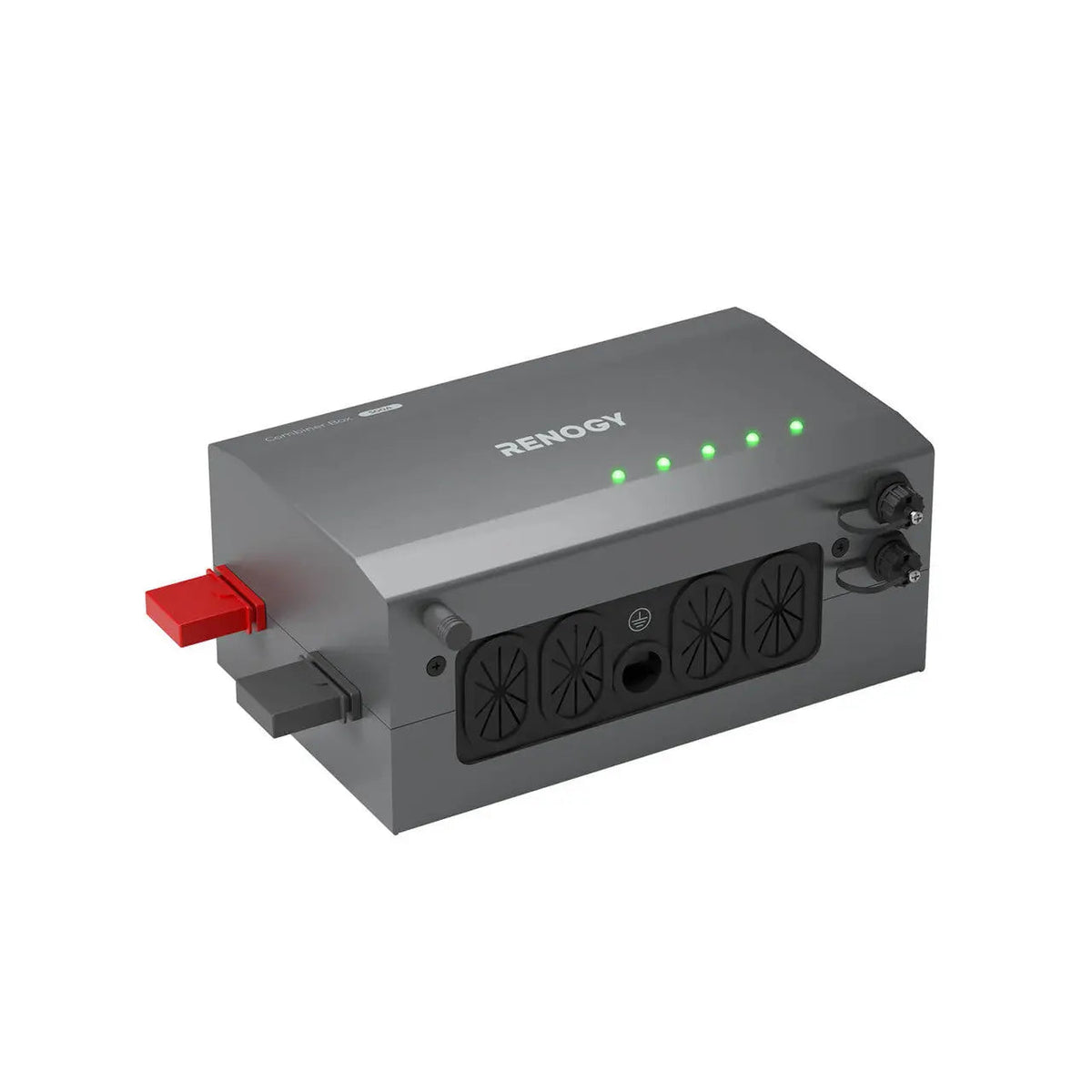

Renogy 500A Combiner Box (Communication Version)

-Tin-plated copper busbars for long-term performance. -Streamlined system monitoring with built-in Bluetooth. -Lightweight design with ample internal space. -Durable enclosure for secure connections. -Hassle-free installation of highly secure fuses. Renogy 500A Combiner Box (Communication Version) The most reliable, space-efficient cable hub for electrical connection and distribution. Streamline Vehicle Installations Renogy Combiner Box consolidates all electrical connections into one central location, offering users a more intuitive experience. Enhanced Electrical Security The Renogy Combiner Box prevents ring terminal slackening, which can otherwise lead to short circuits and reduced electrical performance during vehicle vibrations. Seamlessly Compatible with High-Power Systems 4/0 AWG wire is ideal for transmitting high-power currents, allowing for system upgrades. Monitoring Methods for RVs Built-in Bluetooth connectivity for onboard surveillance and one core connectivity for wireless long range monitoring and more customized settings. The Combination of Function and Style Organize your RV's wiring for a spacious, neat, and stress-free interior. Connect with Renogy customers. Go to Power Plus Community Still have questions? Ask our specialist

Package Includes

• Renogy 500A Combiner Box (Communication Version)

Specifications

Model: REC500CB-98CM
Voltage range: 9 - 60Vdc
Rated Current: M8 Busbar
Enclosure material: Sheet metal Enclosure dimensions: 10.35 x 6.30 x 4.53 in/263 x 160 x 115 mm
Unit weight: 2.6kg/5.7lbs
Busbar material: Tinned copper
Busbar dimensions: 4 x 30mm
Recommended terminal torque: 70.8 in·lbs / 8 N·m
Operating temperature range: -4°F to 140°F / -20°C to 60°C
Storage temperature range: -40°F to 176°F / -40°C to 80°C
Humidity: 0-99% RH (non-condensing)
Protection class: IP22
Communication: CANbus and Modbus（Bluetooth）

Warranty

Material and workmanship warranty: One Year Adhesive Tape (8 m/351 in): X 1

Certifications
