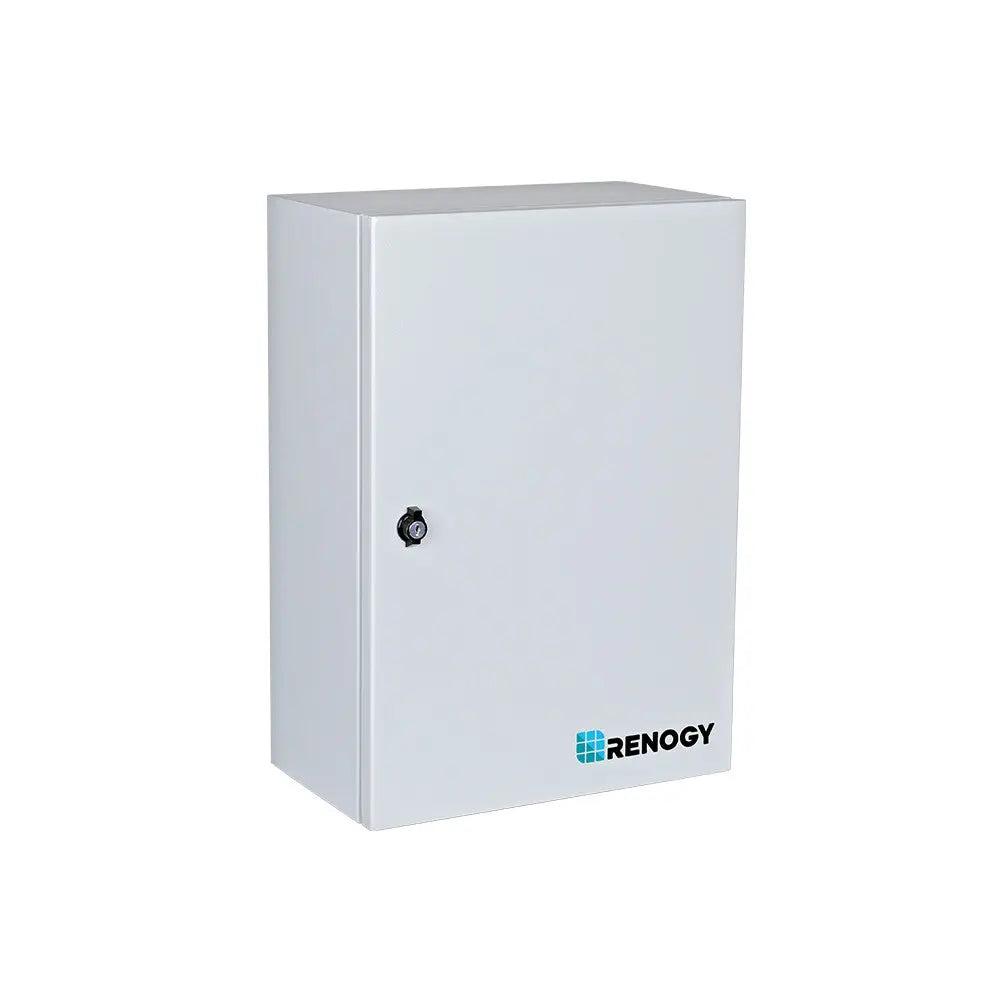

DC Circuit Breaker Box

DESCRIPTION 【Centralized Management】 Enables sectional system control. 【Safety Protection】 Built-in DIN rail and mount holes. 【Easy Installation】 Simple setup with DIN rail design. 【Reliable Quality】 Steel box with copper busbars. 【Worry-Free Use】 IP54 rated with 1-year warranty.

The Renogy DC Circuit Breaker Box is an indoor-rated enclosure that offers centralized installation and protection for devices in the residential and commercial solar system. For solar energy systems, we suggest combining two 1P miniature circuit breakers, one 2P molded case circuit breaker, one 2P surge protection device, and one 2P ground fault circuit breaker to provide comprehensive protection and disconnection methods for the system. The built-in DIN rail enables easy installation of the protection devices.

CENTRALIZED MANAGE

Realizing the disconnection of different devices in the solar energy system. Each pair of devices will be equipped with a circuit breaker to realize the system's section management and comprehensive protection.

When the equipment needs maintenance or inspection, the relevant circuit can be disconnected to ensure safety.

SAFETY PROTECTION

Surge protection devices and ground fault protection devices can be installed to protect equipment from lightning protection and ground faults.

For solar panel system, we suggest the following combination:

two 1P miniature circuit breakers

one 2P molded case circuit breaker

one 2P surge protection device

one 2P ground fault circuit interrupter

Please note all the breakers, interrupter and surge protection device are not included.

RELIABLE QUALITY

The box is made of cold-formed steel which is durable and resistant to corrosion. Built-in Copper Busbars have good electrical conductivity to ensure the stable operation of the system.

Material and workmanship warranty for 1 year.

PRODUCT DISPLAY

The diagram detailed shows all components of the box, besides these, waterproof strain reliefs or conduits are reserved for installation.
