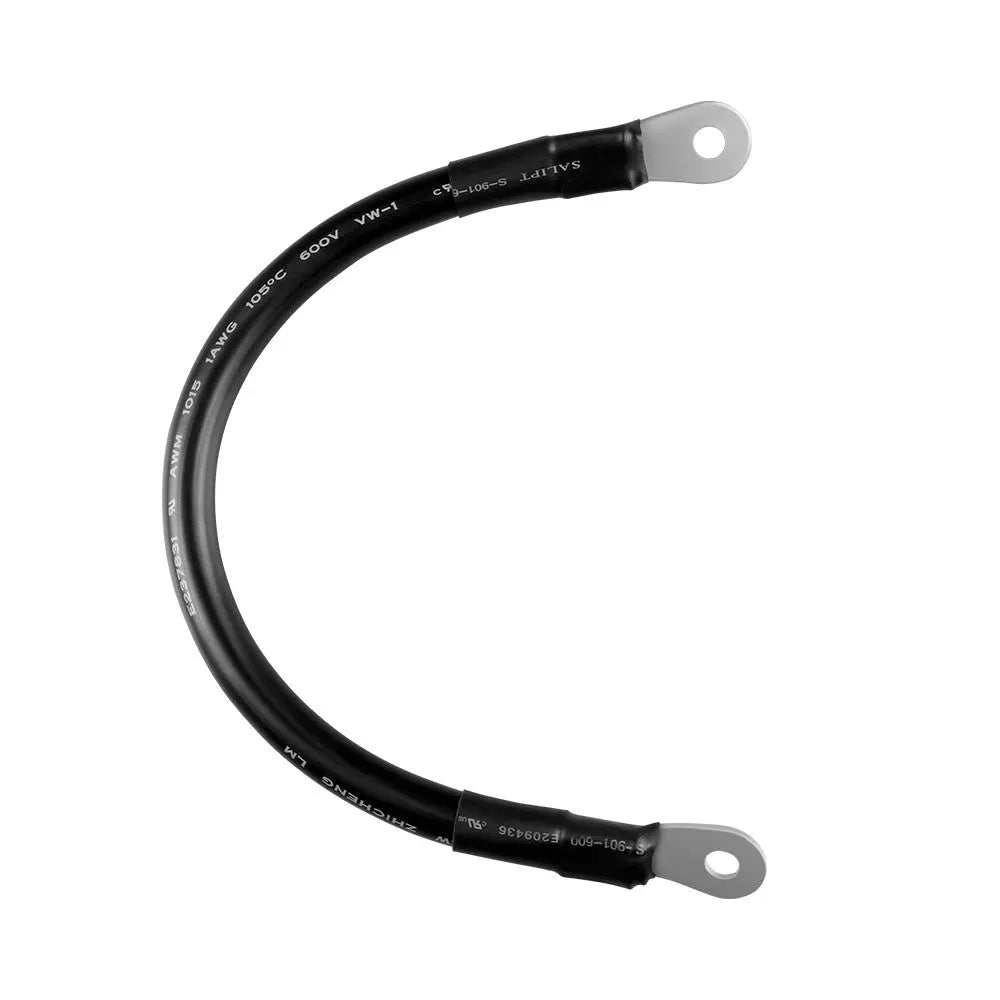

Copper Battery Interconnect Cable for 5/16 in Lugs

DESCRIPTION CONNECT THE BATTERIES: Connect your batteries series/parallel connection with a high-quality Renogy Battery Cable with a 5/16" M8 lugs. TUV LISTED: The cable meets TUV standards for PV solar application.UV resistant and waterproof. Produce optimal power output even in high-temperature conditions. RELIABLE QUALITY: Heat-shrink tubing insulates wires, provides abrasion resistance and electrical safety to resist water and humidity. An excellent option for use in your off-grid system. OUTSTANDING CONDUCTIVITY: Outstanding electrical conductivity, thermal conductivity, stability, tin-plated copper can increase heat dissipation, improve electrical conductivity and improve wire performance.

Connect your batteries in series (x1) or parallel (x2) with the Renogy high-quality battery cables. Specialized with 5/16'' tin-plated copper lugs on both ends, it provides abrasion resistance and electrical safety for your system.

Series Connection

To connect a group of batteries in series, you connect the negative terminal of one battery to the positive terminals of another, and so on until all batteries are connected.

Wiring batteries together in series will increase the voltage while keeping the amp hour capacity the same.

For example:

2 x 12V 100Ah batteries wired in series will give you 24V, but only 100Ah capacity.(24V*100AH=2400WH=2.4kwh)

Parallel Connection

When connecting batteries in a parallel, the negative terminal of one battery is connected to the negative terminal of the next and so on through the string of batteries.

Wiring batteries together in parallel has the effect of doubling capacity while keeping the voltage the same.

For example:

2 x 12V 100Ah batteries wired in parallel will give you only 12V, but increases capacity to 200Ah. (12V*200AH=2400WH=2.4kwh)

Series/Parallel Connection

Series-parallel connection is when you connect a string of batteries to increase both the voltage and capacity of the battery system.

This is a combination of the above methods and is used for 2V, 6V or 12V batteries to achieve both a higher system voltage and capacity.
