Communication Hub

Description

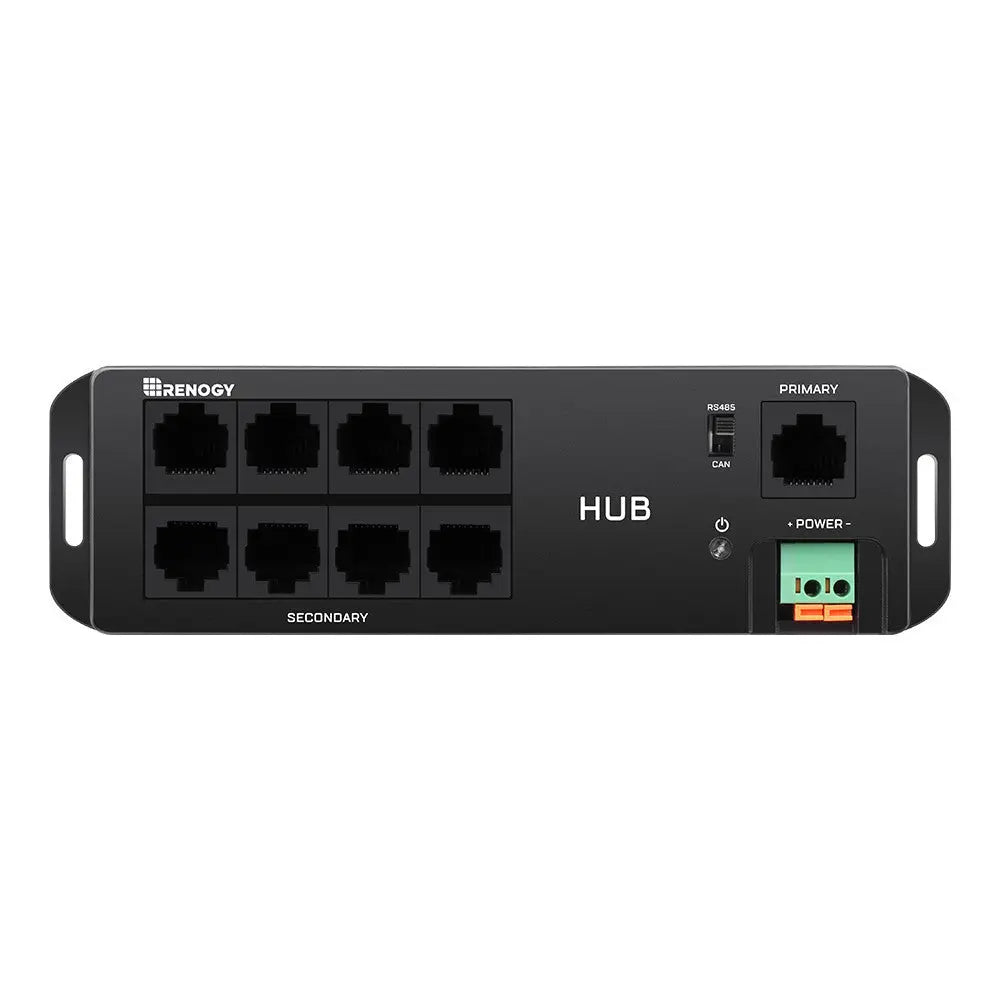

The Renogy Communication Hub allows you to connect multiple Renogy appliances with an RJ45 port and RS485 communication protocol to just one BT-2 Bluetooth module . Now you can use your phone to monitor multiple devices at the same time! The Renogy Communication Hub also supports both RS485 and CAN communication protocols – giving you a wider selection of compatible devices.

If you have any questions regarding this product, please call us at 1 (909) 287-7111 or contact us .

Key Features

• Monitor multiple devices at the same time with a single Bluetooth module.

• Connect to our user-friendly smart phone App, Renogy DC Home, to keep track of your system.

• Supports both RS485 and CAN communication protocol.

• Green LED lights indicate which communication protocol is currently on.

Package Includes

Renogy Bluetooth Hub

1 x

Power Cable

1 x

Specifications Input Voltage: 9V - 60V Port Type: RJ45 Standby Power Consumption: 0.324W Cable Length: 5.00m (16.4ft) Operating Power Consumption: <0.35W Dimension: 6.29 X 1.89 X 0.91in (160 x 48 X 23mm) Communication Range: ≤82ft Installation Dimension: 151.4 φ3.5mm (5.96 φ 0.14in) Serial Baud Rate: RS485-9600 bps CAN-500 kbps Operation Temperature: -20°C~85°C;(-4°F to 185°F) Communication Protocol: RS485 CAN Weight: 125g (4.41oz)

Warranty Information

Accessories 1-year material and workmanship warranty
