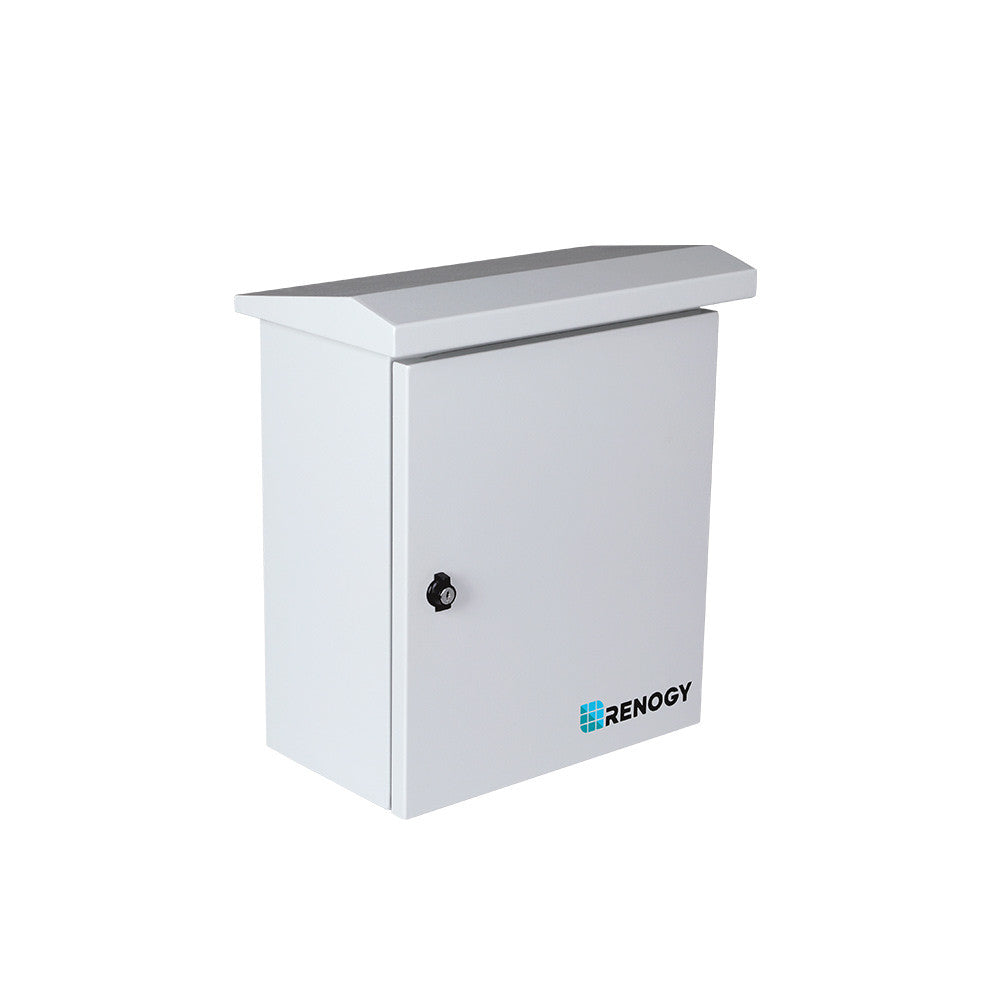

5 Strings Solar Combiner Box

SKU RPVCOM5SMN7P-US
$142.99 $179.99 Save $37.00

DESCRIPTION 【5 TO 1 CONNECTION】 Combining up to 5 solar panel inputs into one, and each input can be equipped with a circuit breaker. 【SAFETY PROTECTION】 Circuit breaker and surge protection device can be installed to...

1
In stock ·Ships from US distribution
Authorized dealerGenuine Renogy
Secure checkoutPowered by Shopify
Expert supportTalk to a rigger
DESCRIPTION 【5 TO 1 CONNECTION】 Combining up to 5 solar panel inputs into one, and each input can be equipped with a circuit breaker. 【SAFETY PROTECTION】 Circuit breaker and surge protection device can be installed to provide overload/short circuit protection and lightning protection. 【EASY TO INSTALL】 Offers built-in standard DIN rail for easy installation. 【IDEAL FOR OUTDOOR】 Protection level at IP55. The double slope top design and rubber seals on door make it more suitable for outdoor environments. 【WORRY-FREE USE】 Suitable for both On-Grid and Off-Grid Solar Systems. Material and workmanship warranty for 1 year.

The Renogy 5 Strings Solar Combiner Box is the ideal solution to combine inputs from up to 5 strings of solar panels into a single output. It accepts up to five 1P miniature circuit breakers and one 2P surge protection device for improved safety of the solar system. The built-in standard DIN rail enables easy installation of the protection devices. Equipped with a rain cap and rubber seals, the grey steel enclosure is designed to survive in outdoor environments. The knockouts are reserved for waterproof strain reliefs or conduits.

5 TO 1 CONNECTION

Combining up to 5 solar panel inputs into one, and each input can be equipped with a circuit breaker which can protect wires and devices.

SAFETY PROTECTION

The product accepts up to five 1P miniature circuit breakers and one 2P surge protection device. They can provide overload/short circuit protection and lightning protection for improving the safety of the solar system.

Please note all the breakers, interrupter and surge protection device are not included.

IDEAL FOR OUTDOOR

Protection level at IP55. It is designed with a rain cap, the double slope design can be more effective to prevent from wind and rain, and makes the outdoor system use safer. The door is equipped with rubber seals which can prevent rain from entering the box.

PRODUCT DISPLAY

The diagram detailed shows all components of the box, besides these, waterproof strain reliefs or conduit are reserved for installation.

BrandRenogy
SKURPVCOM5SMN7P-US
Weight20.94 lb
