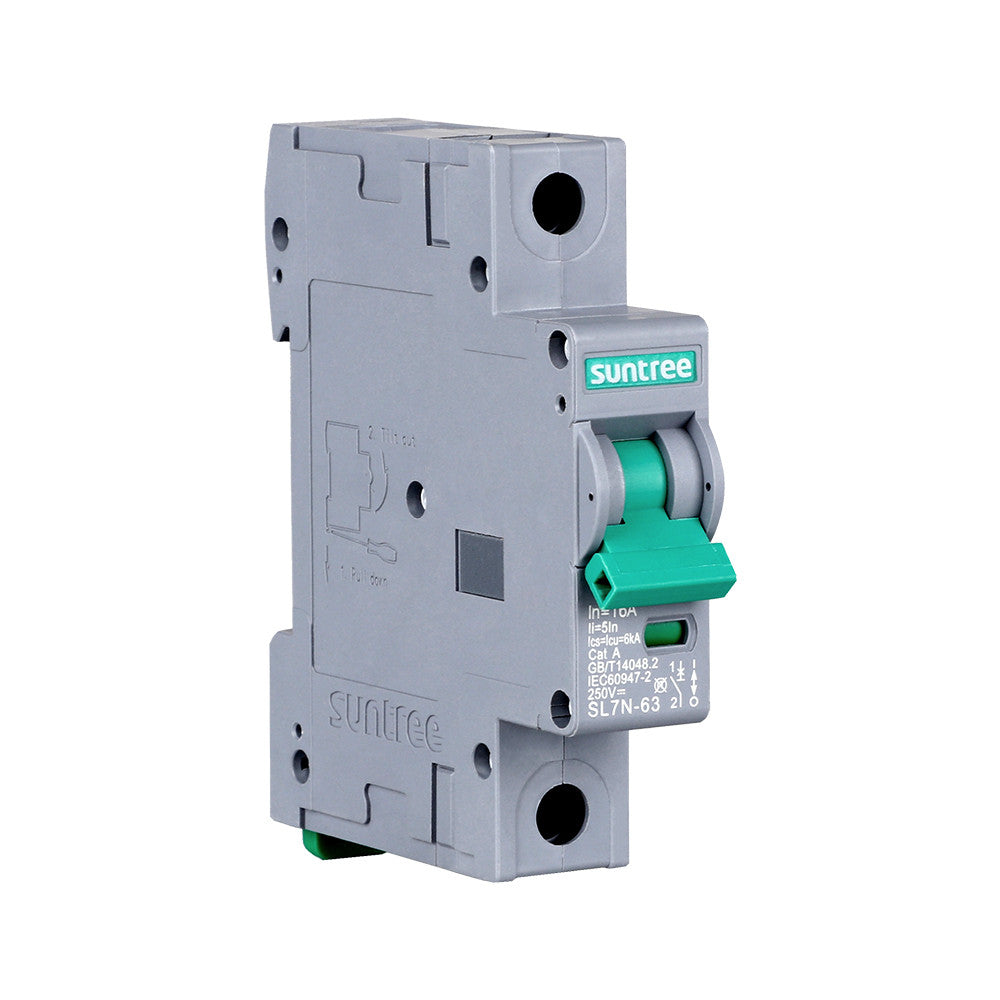

10A/16A/32A/50A/63A 1P DC Miniature Circuit Breaker

DESCRIPTION [DOUBLE SECURITY] Equipped with both the thermal and magnetic tripping mechanism for reliability and safety. [SAFE TO USE] Designed for reversible connection and can work under bidirectional current. [DURABLE FOR USE] After the circuit breakers is disconnected, only reset is needed and there will be no damage. [CLEARLY MARK] Built-in indicator window helps identify the contact position. [QUICK TO INSTALL] Easily install on the standard DIN rail with the buckle design.

The Suntree DC Miniature Circuit Breaker is designed to protect DC electrical installations against overloads and short circuits with both the thermal and magnetic tripping mechanism equipped. Once a fault is detected, the circuit breaker automatically switches off the electrical circuit to prevent damage to wires and avoid the risk of fire. The circuit breaker can also be manually opened under the full rated load without any damage when electrical maintenance needs to be performed. Engineered for reversible connection, the circuit breaker is allowed to be wired in either direction and functions under bidirectional current. The built-in indicator window helps identify the contact position of the circuit breaker at a glance. The buckle design enables easy installation on the standard DIN rail.

RELIABLE AND SAFETY

Equipped with both the thermal and magnetic tripping mechanism for reliability and safety, along with the certification of CE, RoHS, CB, TUV.

DURABLE FOR USE

Excellent product quality and strong service life. Material and workmanship warranty for 1.5 years.

SIZING TIPS

Advice of choosing suitable circuit breaker for different situations.

CONNECTION

Connected on positive and negative.

MARK CLEARLY

Built-in indicator window helps identify the contact position.

QUICK TO INSTALL

Easily install on the standard DIN rail with the buckle design.

For installation, snap it into the slot, then press the bottom part until the buckle snaps into the Din rail.

For disassembly, simply pull down the buckle.
