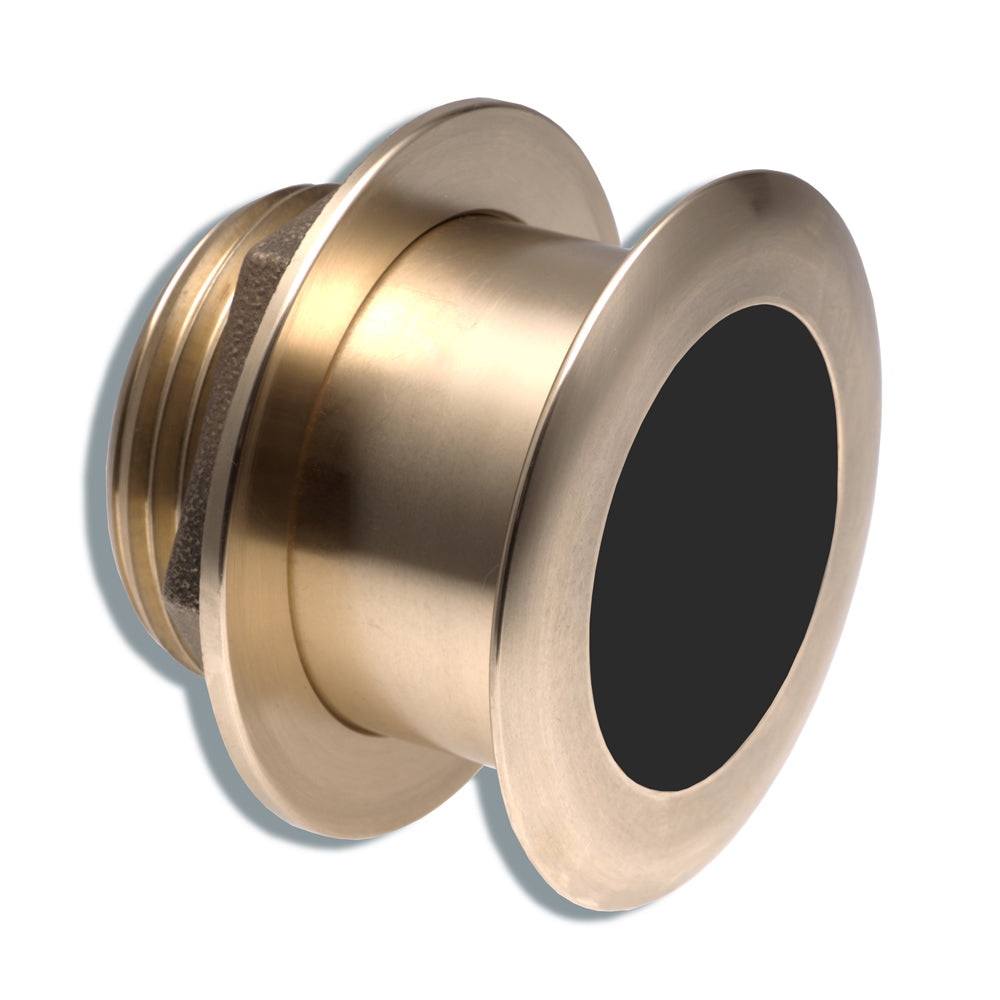

Raymarine B175L Bronze Low Profile Thru Hull 20 degree Tilted Element Transducer - 1kW
SKU 63723·Transducers
$1,699.00
B175L Bronze Low Profile Thru Hull 20° Tilted Element Transducer 1kWFeatures Material: Bronze For use with CP450C or CP470 Chirp Sonar Module Power (RMS): 1Kw Max Depth(ft): 2,500 Frequency (khZ): 40-60 Beam Widt...
1
Sold out
·Ships from US distribution
Authorized dealerGenuine Raymarine
Secure checkoutPowered by Shopify
Expert supportTalk to a rigger
Will it fit your boat?
Size it to your vessel first
Run your loads through the Energy Planner to confirm this gear covers your daily draw — and see if you need more panels or battery.
Open the Energy Planner →B175L Bronze Low Profile Thru Hull 20° Tilted Element Transducer 1kW
Features
Features
- Material: Bronze
- For use with CP450C or CP470 Chirp Sonar Module
- Power (RMS): 1Kw
- Max Depth(ft): 2,500
- Frequency (khZ): 40-60
- Beam Width(L/H): 32°-21°
- Records: Depth / Temperature
- Approved Hull Material: Fiberglass / Wood
- Cable Length (Ft/M): 33ft / 10M
- Supported Deadrise / Transom Angles: 16-24° Deadrise
- Note: Using a Single B175 or B75 requires the A80328 Single Operation Cable
BrandRaymarine
SKU63723
UPC723193729113
TypeTransducers
Weight11.6 lb
