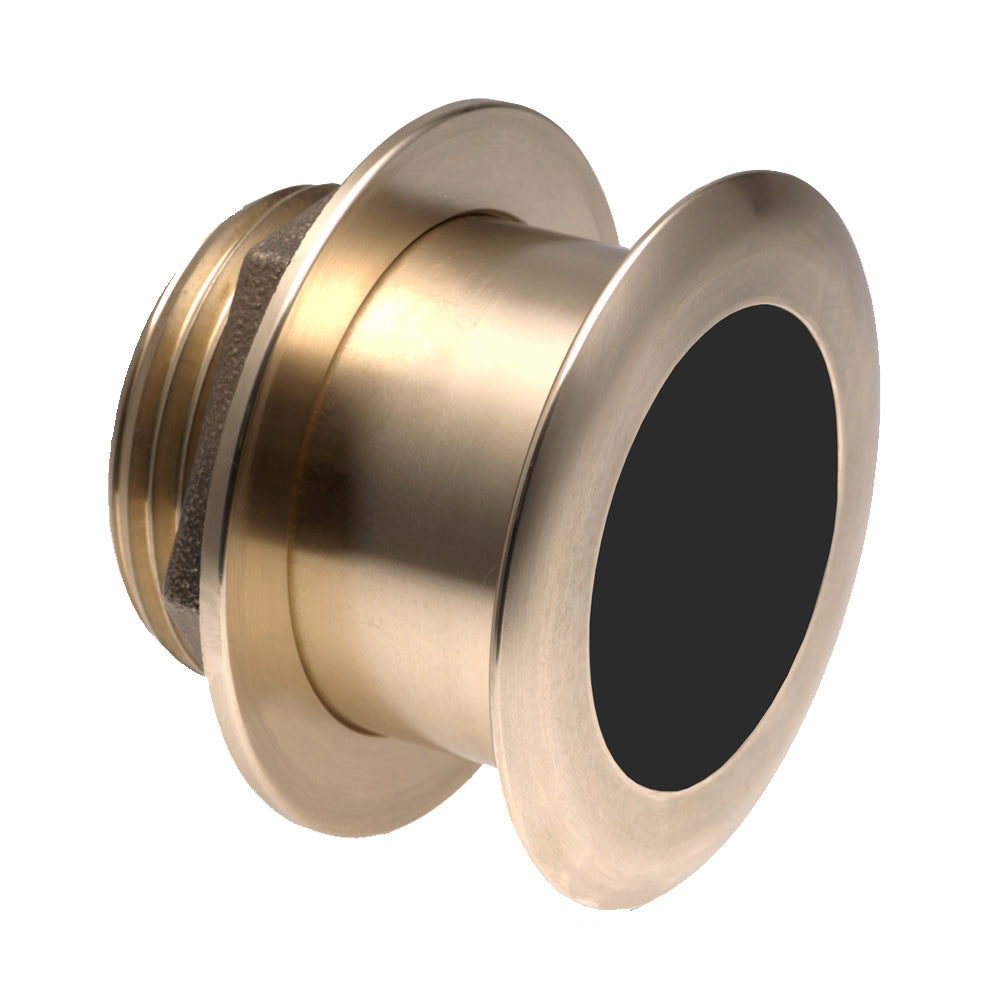

Raymarine B175H-W 20° Bronze Thru-Hull Tilted Element Transducer - 1kW
B175H-W 1KW Bronze Thru Hull 20° Tilted ElementInstallation: Thru HullMaterial: UrethanePower (RMS): 1kWMax Depth(ft): 800Frequency (KHz): 150-250Records: Depth and TemperatureApproved Hull Material: Fiberglass / Wood...
Size it to your vessel first
Run your loads through the Energy Planner to confirm this gear covers your daily draw — and see if you need more panels or battery.
Open the Energy Planner →B175H-W 1KW Bronze Thru Hull 20° Tilted Element
Installation: Thru Hull
Material: Urethane
Power (RMS): 1kW
Max Depth(ft): 800
Frequency (KHz): 150-250
Records: Depth and Temperature
Approved Hull Material: Fiberglass / Wood
Cable Length (ft/M): 6ft/2m
Supported deadrise: 16-24° Deadrise
ADDITIONAL NOTES: All wide beam products come with a 2M pigtail off the transducer. Requires a Transducer Extension cable for a Complete Transducer Installation. 10m Extension Cable part number A80327 and A80328 Single B75/B175 operation cable.
