Lopolight

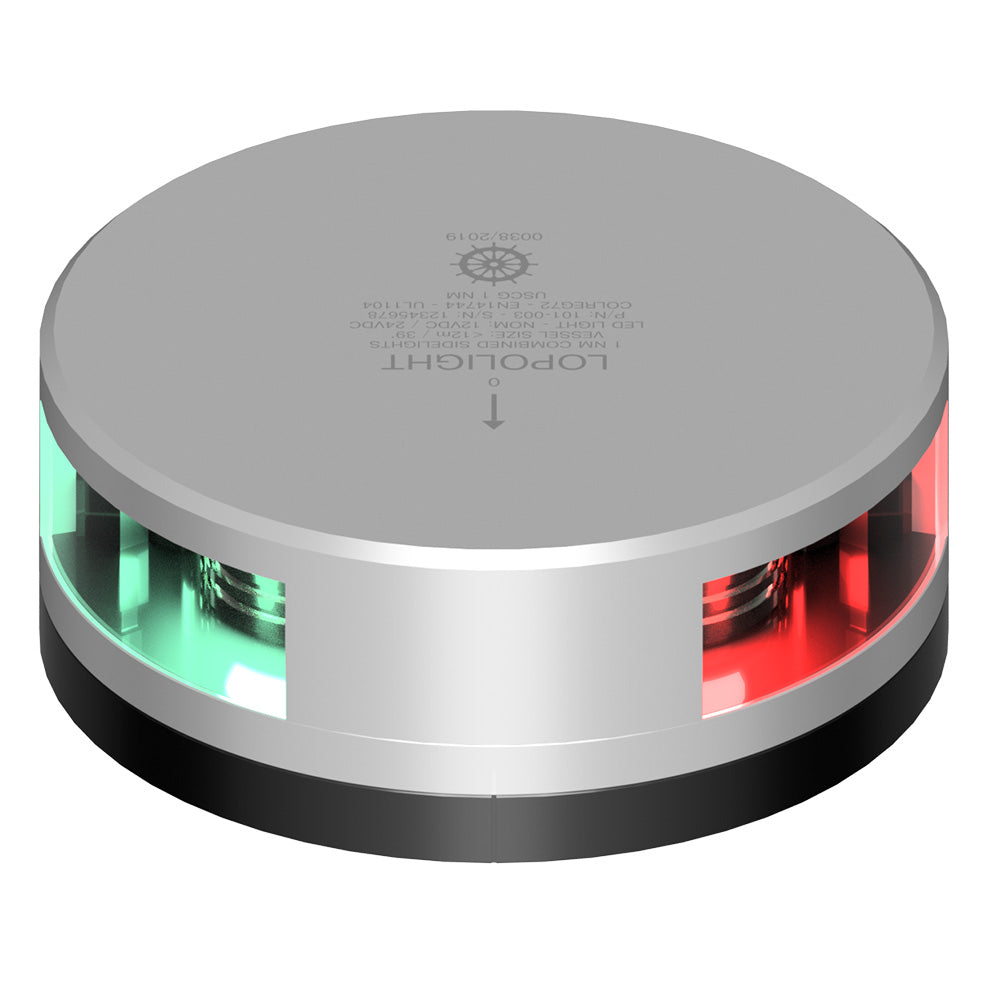

Lopolight Combined Sidelight - 1NM - Housing with FB Base

Name: Lopolight Combined Sidelight - 1NM - Housing with FB Base
Brand: Lopolight
SKU: 103271
Price: 523.24 USD
Availability: InStock

SKU 103271·Navigation Lights

$523.24

Combined Sidelight - 1NM - Silver Housing with FB BaseThis navigation light is horizontally mounted and has a one-nautical mile range. The FB base centers the wiring for antenna-type pole mountings. The base provides ...

Choose your option

1

In stock ·Ships from US distribution

Authorized dealerGenuine Lopolight

Secure checkoutPowered by Shopify

Expert supportTalk to a rigger

Combined Sidelight - 1NM - Silver Housing with FB Base

This navigation light is horizontally mounted and has a one-nautical mile range. The FB base centers the wiring for antenna-type pole mountings. The base provides a screw-down onto the deck solution as well as a from-below mounting. Essentially, the base provides a sleeker, reduced profile.

Features:

Silver anodized housing
2.5m cable is included

Specifications:

Approved To: COLREG72,EN14744,IEC 60945,IACS E10,USCG,ABS,M.E.D.,DNV,LR
Mounting: Horizontal
EAN: 5704438042605
Min. Feed Wire Gauge: 0.5mm² AWG22
Light Color: Red, green
Visibility: 1NM
Materials: Silver anodized aluminum 25µ, PMMA lens, A4 stainless steel screws, Epoxy, Polyurethane
IP rating: IP68
Connection: 2.5m cable
Current Consumption (mA @ 24VDC): 48
Current Consumption (mA @ 12VDC): 87
Dimensions Metric: Ø92,5mm x 58mm
Dimensions Imperial: Ø3.6" x 1.4"
Operating Temperature: -25 degrees C to 55 degrees C
Operating Voltage: 10-32VDC
Power Draw (W): 1,4
Vessel Size: Under 12 meters
