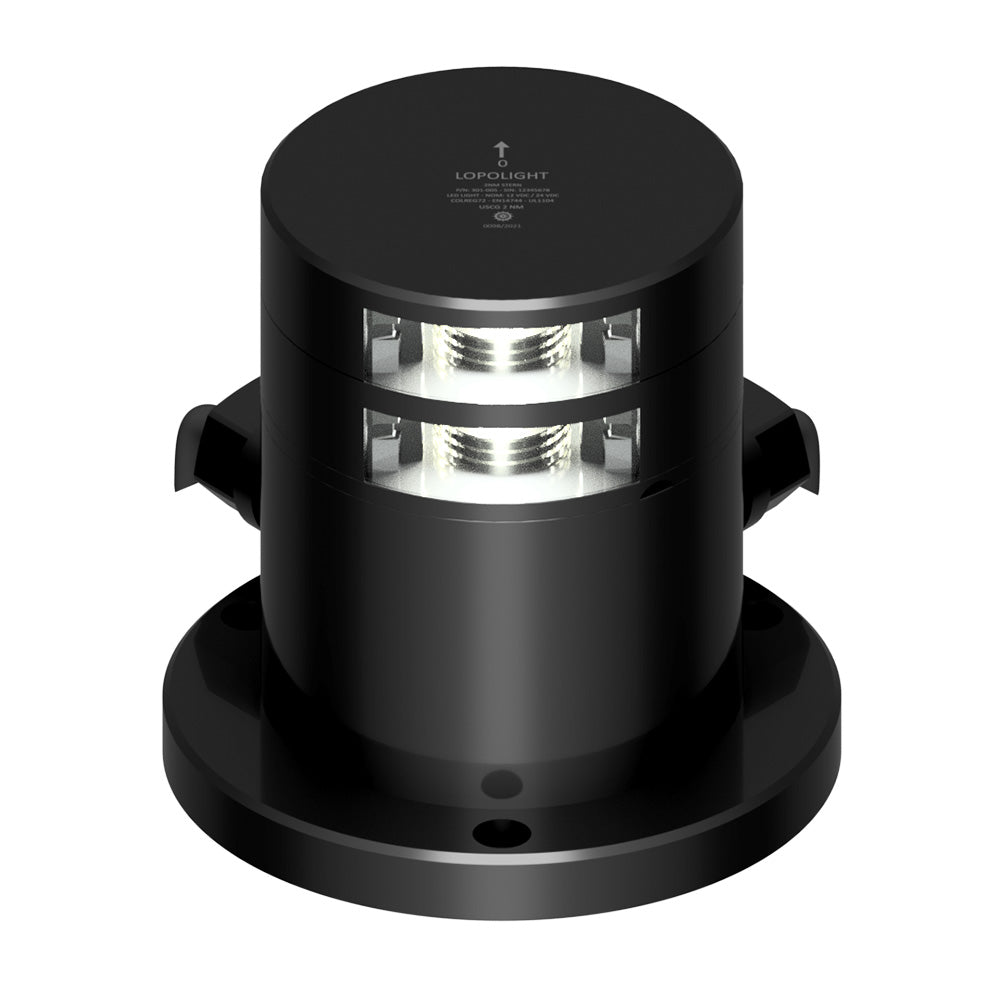

Lopolight 3nm Double Stacked Ice-Class Stern Light - Black

3nm Double Stacked Ice-Class Stern Light - Black

Features:

• Built-in De-icing function
• Horizontally mounted on 400-037 alu base (IP68)
• Cable direction side
• Includes HDPE base plate
• Quality cable glands - 3 sizes included:
• 9-17mm (3/8"-11/16") cable diameter
• 7-13mm (1/4"-1/2") cable diameter

Specifications:

• Light Color: White
• Dimensions metric: Ø92,5mm x 125,5mm
• Certification: This Navigation Light is certified by DNV, the Declaration of Conformity, and the certificates can be found on www.lopolight.com under Support<
• Intensity: >15cd
• Dimensions imperial: Ø3.6" x 4.9"
• Approved to: COLREG72,EN14744,IEC 60945,IACS E10,USCG,ABS,M.E.D.,DNV,LR
• Visibility: 3nm
• Included In Package: 1 Navigation light,2 Mounting screws (M6 * 8 mm), Installation guide
• Operating temperature: -60°C to 55°C
• Mounting: Horizontal
• Materials: Black hard coat anodized aluminum 50µ, PMMA lens, A4 stainless steel screws, Epoxy, Polyurethane
• Operating Voltage: 20-32VDC
• IP rating: IP68
• Power draw (W): 2W (normal), 19W (in de-icing mode, light on)
• Connection: Plug connector
• Current consumption (mA @ 12VDC): 130
• Current consumption (mA @ 24VDC): 72
• Vessel size: Over 50M
• Min. feed wire gauge: 1.5mm2 AWG18
• Weight (Kg): 1.4 Kg
• Weight (Oz): 49.38 Oz
