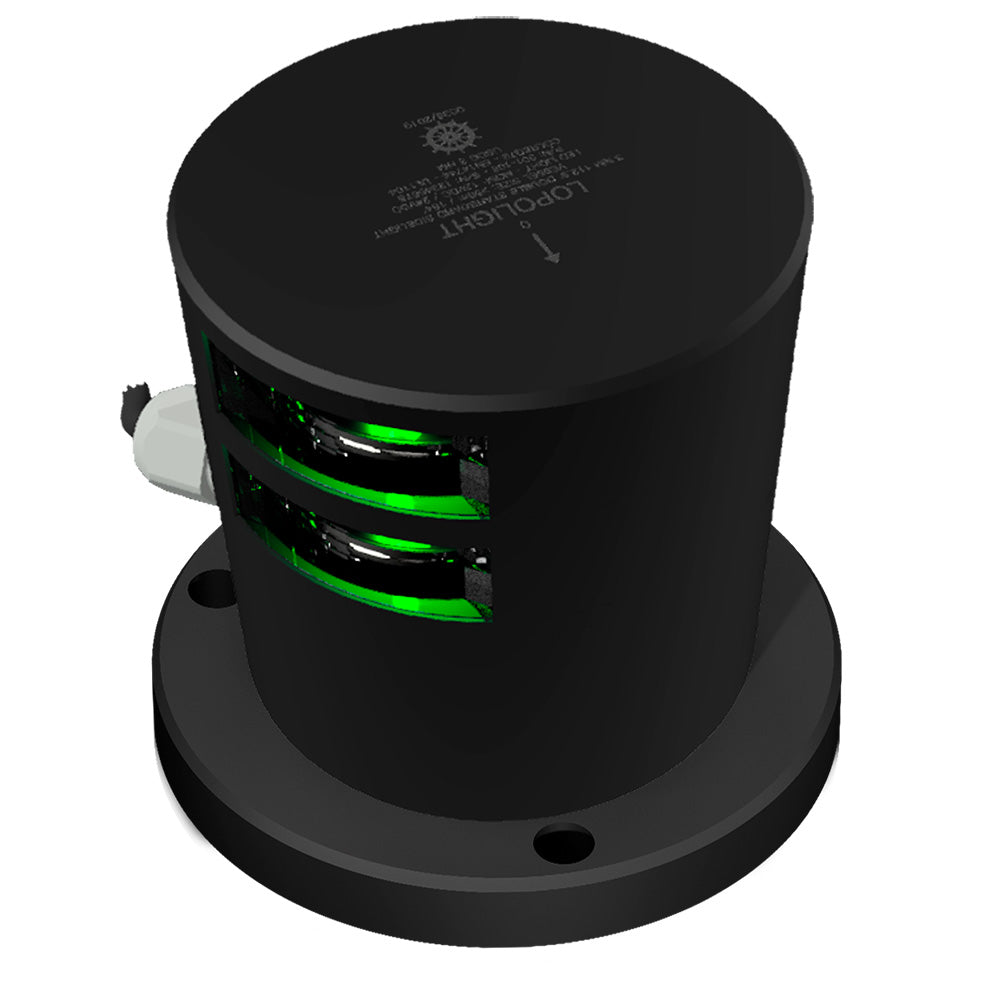

Lopolight 3NM Double Stacked Ice-Class Starboard Light
3NM Double Stacked Ice-Class Starboard LightThis double-stacked light has a visibility of 3NM and is meant for the starboard side of a vessel. The de-icing function is automatic and controlled by the sensor in the lig...
Size it to your vessel first
Run your loads through the Energy Planner to confirm this gear covers your daily draw — and see if you need more panels or battery.
Open the Energy Planner →3NM Double Stacked Ice-Class Starboard Light
This double-stacked light has a visibility of 3NM and is meant for the starboard side of a vessel. The de-icing function is automatic and controlled by the sensor in the light.
Includes Three Cable Glands:
- 9-17mm (3/8-11/16 in.) cable diameter
- 7-13mm (1/4-1/2 in.) cable diameter
- 4.5-10mm (5/32-3/8 in.) cable diameter
Specifications:
- Approved To: COLREG72,EN14744,IEC 60945,IACS E10,USCG,ABS,M.E.D.,DNV,LR
- Mounting: Horizontal
- EAN: 5704438014268
- Light Color: Green
- Intensity: >15cd
- IP rating: IP68
- Connection: Plug connector
- Visibility: 3NM
- Materials: Black hard coat anodized aluminum 50µ, PMMA lens, A4 stainless steel screws, epoxy, polyurethane
- Current Consumption (mA @ 12VDC): 183
- Current Consumption (mA @ 24VDC): 110
- Dimensions Metric: Ø92,5mm x 143mm
- Dimensions Imperial: Ø3.6" x 4.9"
- Certification: This navigation light conforms to USCG Commandant Instruction M16672.2.
- Operating Temperature: -60°C to 55°C
- Operating Voltage: 20-32VDC
- Power Draw (W): 2,6
- Vessel Size: Over 50M
- Min. Feed Wire Gauge: 1.5mm2 AWG18
- Weight (kg): 1.4 Kg
- Weight (oz): 49.38 Oz
Good to know
- Genuine Lopolight product from an authorized dealer.
- Ships from US distribution.
- Questions about fit or installation? Contact us before you order.
