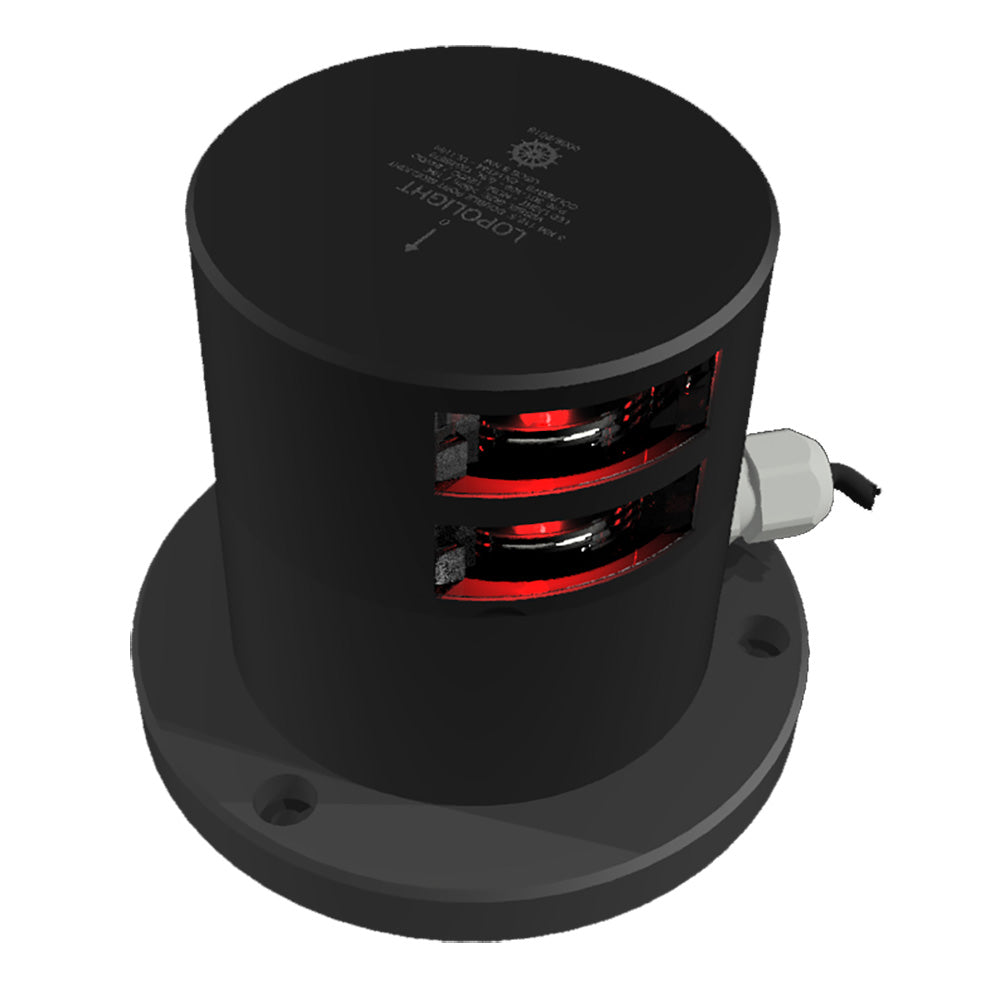

Lopolight 3NM Double Stacked Ice-Class Port Light
SKU 101186·Navigation Lights
$3,257.49
3NM Double Stacked Ice-Class Port LightThis double-stacked light has a visibility of 3NM and is meant for the port side of a vessel. The de-icing function is automatic and controlled by the sensor in the light. Incl...
1
Sold out
·Ships from US distribution
Authorized dealerGenuine Lopolight
Secure checkoutPowered by Shopify
Expert supportTalk to a rigger
Will it fit your boat?
Size it to your vessel first
Run your loads through the Energy Planner to confirm this gear covers your daily draw — and see if you need more panels or battery.
Open the Energy Planner →3NM Double Stacked Ice-Class Port Light
This double-stacked light has a visibility of 3NM and is meant for the port side of a vessel. The de-icing function is automatic and controlled by the sensor in the light.
Includes Three Cable Glands:
- 9-17mm (3/8-11/16 in.) cable diameter
- 7-13mm (1/4-1/2 in.) cable diameter
- 4.5-10mm (5/32-3/8 in.) cable diameter
Specifications:
- Approved To: COLREG72,EN14744,IEC 60945,IACS E10,USCG,ABS,M.E.D.,DNV,LR
- Mounting: Horizontal
- EAN: 5704438014114
- Light Color: Red
- Intensity: >15cd
- IP rating: IP68
- Connection: Plug connector
- Visibility: 3NM
- Materials: Black hard coat anodized aluminum 50µ, PMMA lens, A4 stainless steel screws, epoxy, polyurethane
- Current Consumption (mA @ 12VDC): 153
- Current Consumption (mA @ 24VDC): 92
- Dimensions Metric: Ø92,5mm x 125,5mm
- Dimensions Imperial: Ø3.6" x 4.9"
- Certification: This navigation light conforms to USCG Commandant Instruction M16672.2.
- Operating Temperature: -60°C to 55°C
- Operating Voltage: 20-32VDC
- Power Draw (W): 2,2
- Vessel Size: Over 50M
- Min. Feed Wire Gauge: 1.5mm2 AWG18
- Weight (kg): 1.4 Kg
- Weight (oz): 49.38 Oz
BrandLopolight
SKU101186
TypeNavigation Lights
