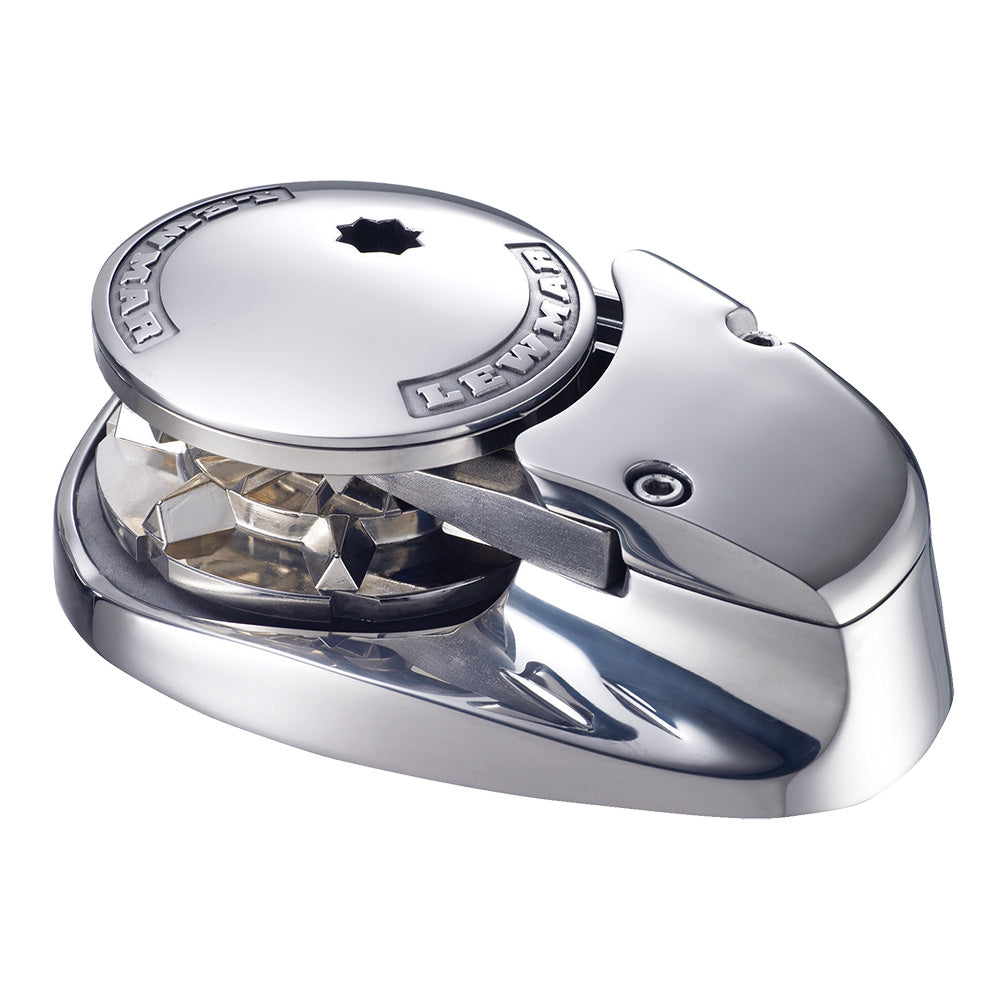

Lewmar V700 Vertical Windlass - 12V
V700 Vertical Windlass - 12V (Windlass only)With 100% 316 stainless steel housing and a sleek flush-mount design that hides the motor down below, the V700 is one of the most attractive and durable windlasses on the m...
Size it to your vessel first
Run your loads through the Energy Planner to confirm this gear covers your daily draw — and see if you need more panels or battery.
Open the Energy Planner →V700 Vertical Windlass - 12V (Windlass only)
With 100% 316 stainless steel housing and a sleek flush-mount design that hides the motor down below, the V700 is one of the most attractive and durable windlasses on the market. It works at the push of a button and has two built-in features that make it unique - motor protection and anchor lock.
The V700 comes with a gypsy able to accept 1/4 inch chains.
*Does not include contactor or circuit breaker. Windlass ONLY.
Features:
- For rope, chain, or combination rodes
- Built-in motor protection and fail-safe anchor lock
- Easy installation
- Fast line speed
- Manual recovery option
- Impact-resistant cover
Technical Specifications:
- Material - Stainless Steel
- Maximum Pull - 700lbs
- Maximum Line Speed - 82'/min
- Maximum Chain Size - 1/4"
- Maximum Rope Size - 1/2"
- Power - 12 V
- Maximum Boat Length - 35'
- Mounting Position - Vertical
- Weight - 14lbs
In the Box:
- Windlass
- Instruction manual
*Sold as an Individual
