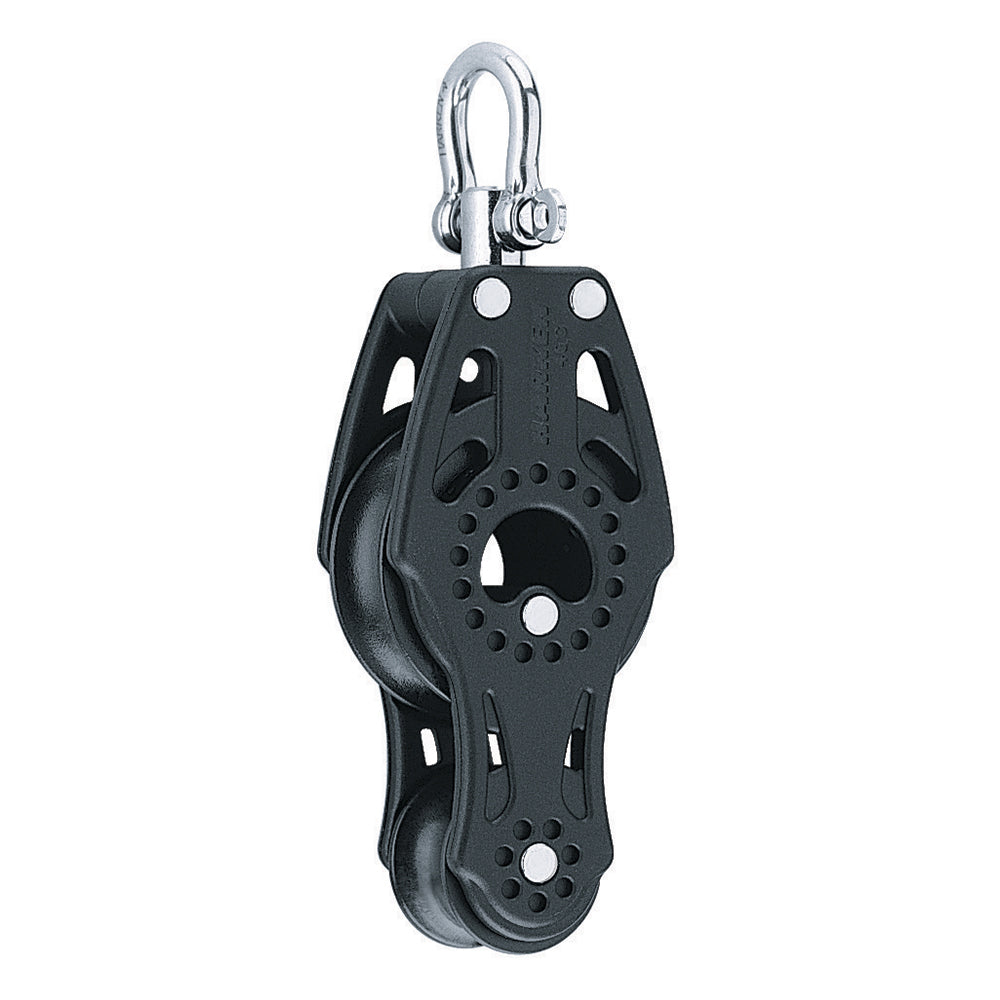

Harken 40mm Carbo Air Fiddle Block w/Swivel
40mm Carbo Air Fiddle Block with SwivelLow-friction Carbo Air blocks are lightweight, strong, reliable—and affordable. Companions to the popular Harken® Black Magic® line, these small, compact blocks have very high wo...
Size it to your vessel first
Run your loads through the Energy Planner to confirm this gear covers your daily draw — and see if you need more panels or battery.
Open the Energy Planner →40mm Carbo Air Fiddle Block with Swivel
Low-friction Carbo Air blocks are lightweight, strong, reliable—and affordable. Companions to the popular Harken® Black Magic® line, these small, compact blocks have very high working loads for safe, easy trimming. The 40 mm fiddle is an excellent choice for 3:1 and 4:1 tackles on dinghy vangs and mainsheets, as well as for controls such as cunninghams and internal boom outhauls on larger boats.
Specifications:
- Sheave: 40mm / 1-9/16in
- Length: 115mm / 4-1/2in
- Weight: 51g / 1.8oz
- Shackle pin: 4mm / 5/32in
- Maximum line: 10mm / 3/8in
- Maximum working load: 220kg / 485lb
- Breaking load: 735kg / 1620lb
