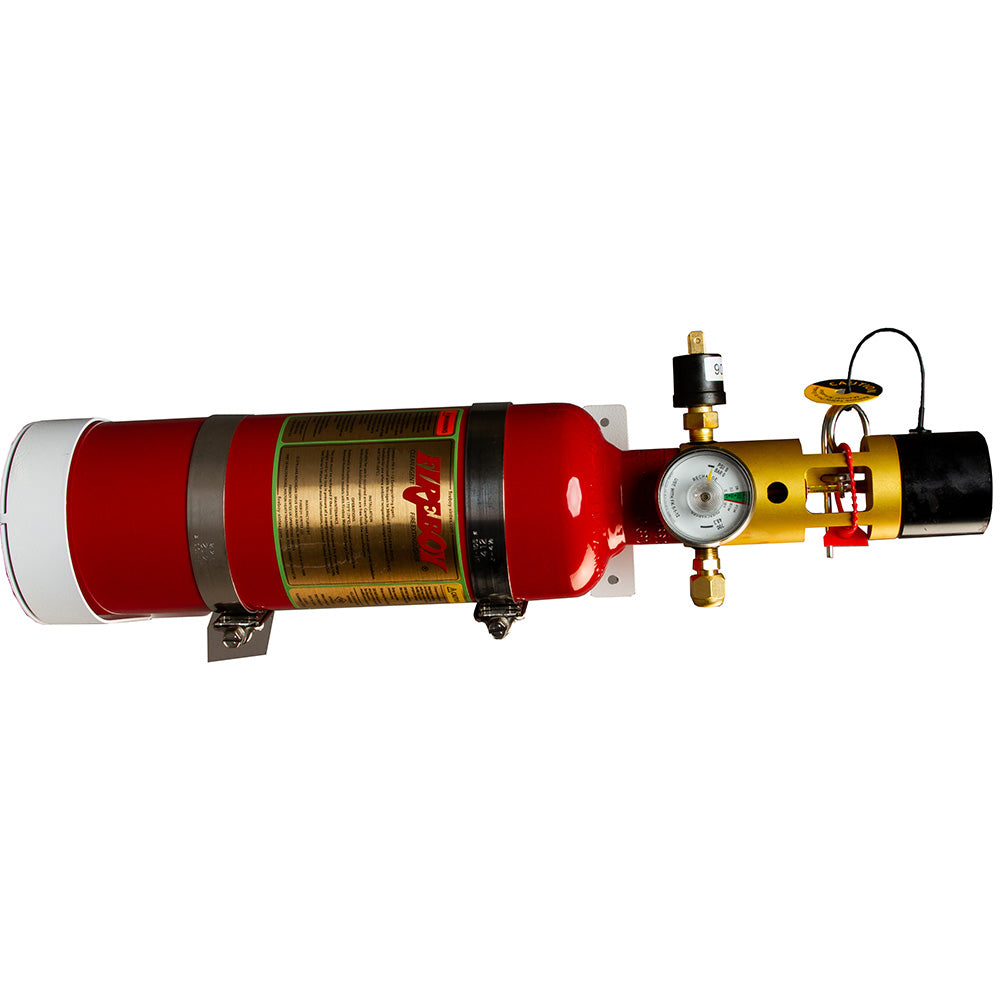

Fireboy-Xintex MU Series Horizontal Clean Agent Fire Extinguisher - 225 Cubic Feet

MU Series Horizontal Clean Agent Fire Extinguisher - 225 Cubic Feet

As an enhancement to Fireboy's product line, the company has added this manual/automatic extinguisher designed specifically for horizontal mounting.

This unit uses the FK-5-1-12 clean extinguishing agent and is designed for maximum firefighting efficiency when mounted in the horizontal position.

Why Fireboy-Xintex is Needed:

• Continuous protection
• Automatic operation
• Manual operation with pull cable
• Peace of mind
• Often detects and suppresses a fire before it is known
• International system approvals (FM, USCG, CE, RINA, BV)
• FK-5-1-12 Clean Extinguishing Agent approved for marine use worldwide (EPA SNAP and European)
• Approved for Class B fires in engine rooms, machinery spaces, and similar industrial applications

Applications:

• Fire protection fluid with very low global warming potential (GWP <1)
• Low toxicity in a properly designed system (no harm to personnel)
• No damage to sensitive equipment
• Not targeted for emission reduction or phase-out
• Coverage from 25-485 ft3 (0.7-13.7 m3) for engine rooms, machinery spaces, and other enclosed spaces for Class B fires
• Factory Mutual and USCG Approved

Don't Just Manage a Fire. Extinguish it.

FK-5-1-12 clean extinguishing agent is a highly effective clean fire suppressant designed to extinguish a fire in its incipient stage before it has a chance to spread.

The FK-5-1-12 clean extinguishing agent evaporates more than 50 times faster than water. Transitions from a liquid to a gaseous state very rapidly when discharged through a nozzle and readily achieves vapor-extinguishing concentrations in the air.

• Low toxicity (no harm to personnel)
• Extinguishes fires in less than half the time of CO2 and other inert gases
• No damage to sensitive equipment
• Not targeted for emission reduction or phase-out

Ready to Install

Each Fireboy system includes a heavy-duty powder-coated steel shelf bracket system, helm display, and owner’s manual.

Specifications:

• Volume Protected: 225 ft.^3 (6.4 m^3)
• Diameter: 6.3 in. (160 mm)
• Agent Weight: 12.7 lbs. (5.8 kgs)
• Shipping Weight: 17.2 lbs. (8 kgs)
• System Pressure: 360 psi @70 degrees F
