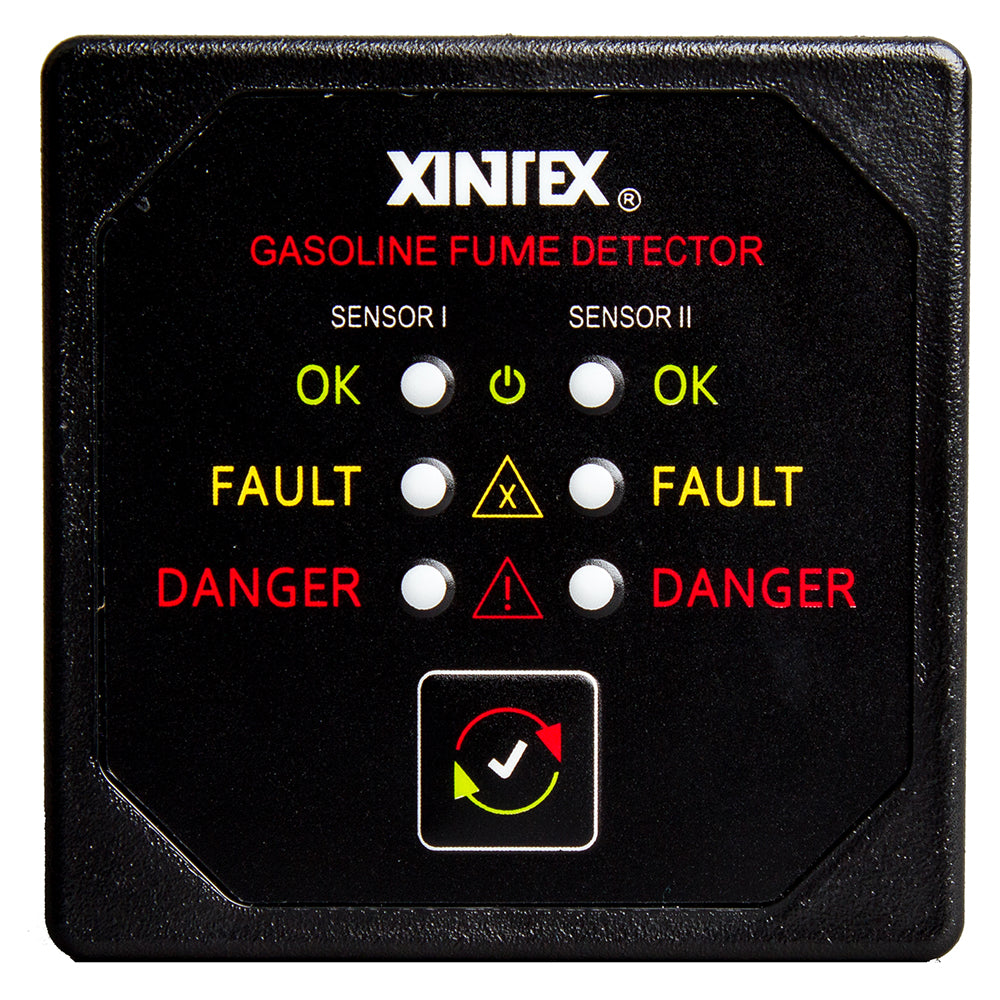

Fireboy-Xintex Gasoline Fume Detector w/Dual Channel - 12/24V
Gasoline Fume Detector with Dual Channel - 12/24VThe Dual Channel Gasoline Fume Detector is an effective means to monitor gasoline fumes in an engine compartment, fuel tank storage area or in other areas where gasolin...
Size it to your vessel first
Run your loads through the Energy Planner to confirm this gear covers your daily draw — and see if you need more panels or battery.
Open the Energy Planner →Gasoline Fume Detector with Dual Channel - 12/24V
The Dual Channel Gasoline Fume Detector is an effective means to monitor gasoline fumes in an engine compartment, fuel tank storage area or in other areas where gasoline fumes might accumulate.
Complete system with easy installation and precise monitoring.
Features:
- Simple Installation
- Audible and visual alarm to indicate LEL (Lower Explosive Level) presence
- Monitors two (2) separate areas simultaneously
Technical Specifications:
- Operating Temperature: -40° to 185°F (-40° to 85°C)
- Current Draw Nominal - 55mA
- Current Draw Maximum - 150mA
- Operating Voltage - 9 to 30V DC
- Alarm Horn - 68 dB
- Display Style - Square with Black Bezel
- Display Dimensions - 2-5/8" x 2-5/8" (6.7 x 6.7 cm)
- Cutout Dimension - 2-1/8" (5.4 cm) round hole
In the Box:
- Fume Detector
- Fuel sensors x two (2)
- 20' Extension Cable x two (2)
- Instruction manual
*Sold as an Individual
