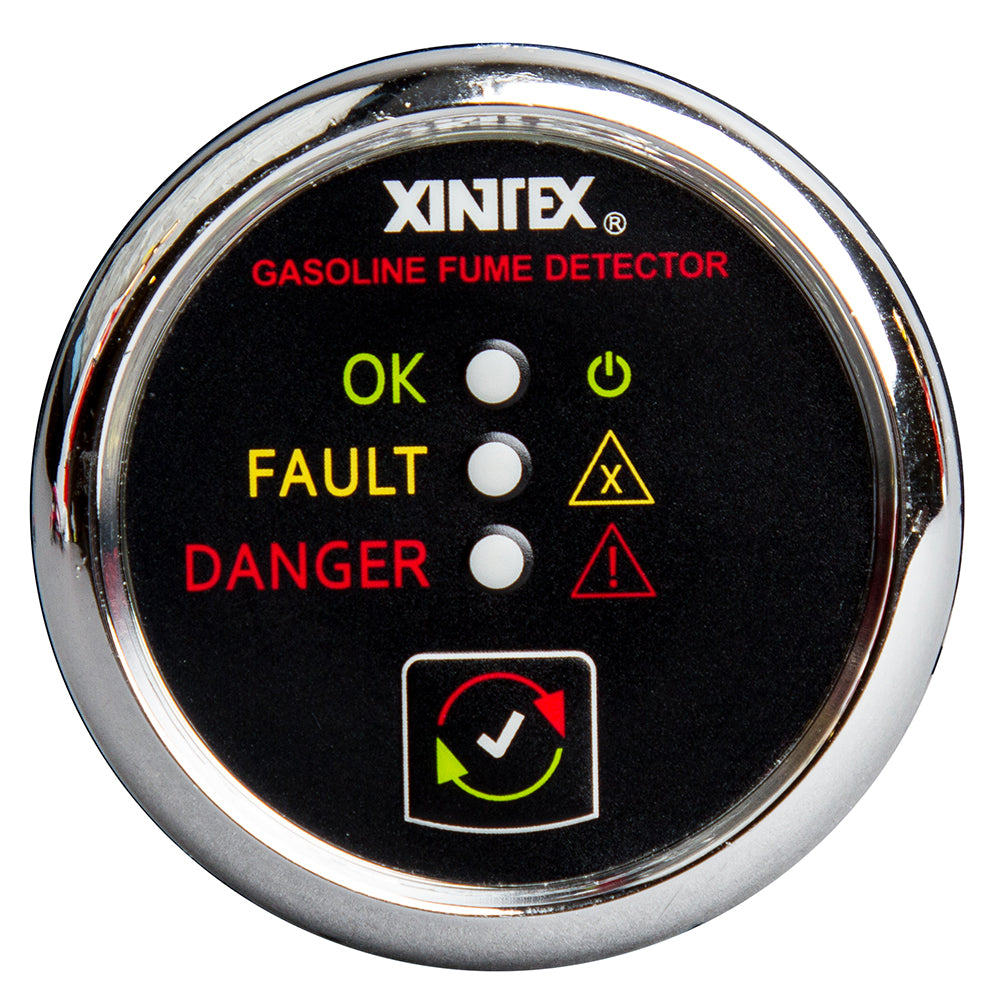

Fireboy-Xintex Gasoline Fume Detector - Bezel - 12/24V
Gasoline Fume Detector - Chrome Bezel - 12/24VThe Single Channel Gasoline Fume Detector is an effective means to monitor gasoline fumes in an engine compartment, fuel tank storage area or in other areas where gasoline...
Size it to your vessel first
Run your loads through the Energy Planner to confirm this gear covers your daily draw — and see if you need more panels or battery.
Open the Energy Planner →Gasoline Fume Detector - Chrome Bezel - 12/24V
The Single Channel Gasoline Fume Detector is an effective means to monitor gasoline fumes in an engine compartment, fuel tank storage area or in other areas where gasoline fumes might accumulate.
Features:
- Simple Installation
- Audible and visual alarm to indicate LEL (Lower Explosive Level) presence
- Monitors one (1) single area
Technical Specifications:
- Operating Temperature: -40° to 185°F (-40° to 85°C)
- Current Draw Nominal - 55mA
- Current Draw Maximum - 95mA
- Operating Voltage - 9 to 30V DC
- Alarm Horn - 68 dB
- Display Style - Round with Chrome Bezel
- Display Dimensions - 2-3/16" (5.6 cm) round
- Cutout Dimension - 2-1/16" (5.2 cm) round hole
In the Box:
- Fume Detector
- Fuel sensors x one (1)
- 20' Extension Cable x one (1)
- Instruction manual
*Sold as an Individual
