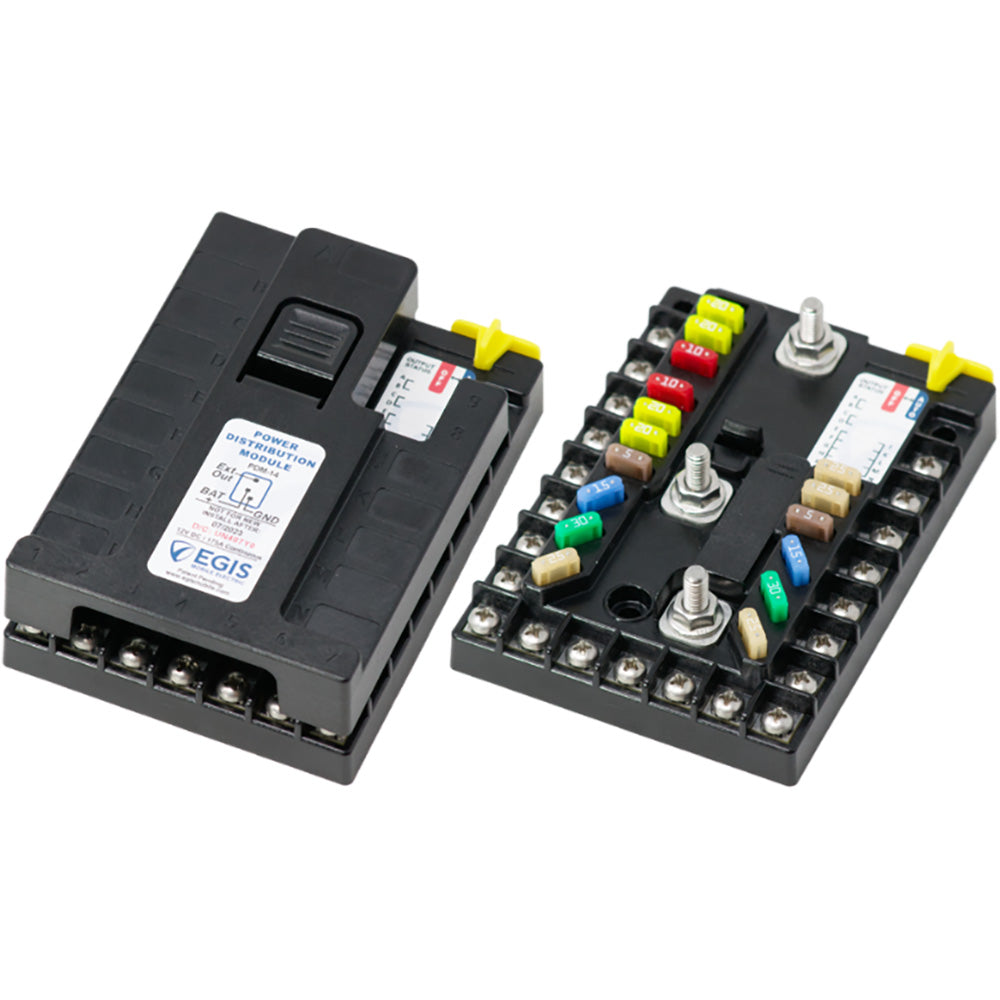

Egis PDM 14 Circuit + Ground 175A 12V w/Kill Switch
PDM 14 Circuit + Ground 175A 12V with Kill SwitchDesigned for professional installers, this is a compact solution that combines battery protection, power switching, circuit protection, a ground bus, and an optional ma...
Size it to your vessel first
Run your loads through the Energy Planner to confirm this gear covers your daily draw — and see if you need more panels or battery.
Open the Energy Planner →PDM 14 Circuit + Ground 175A 12V with Kill Switch
Designed for professional installers, this is a compact solution that combines battery protection, power switching, circuit protection, a ground bus, and an optional manual override switch. This includes three 45-amp high-power circuits and three output groups, which can be independently set to 24/7, ignition switched, or time delay. Expandable up to 31 fused outputs with RT or CT fuse blocks.
Features:
- For 12-volt systems, the allowed voltage range is 8-18 VDC
- Total continuous output limit: 175 amps
- Three load groups with a continuous output of 75-115 amps
- Optional time delay 0-10 hrs
- Optional low voltage protection 11-12.2 volts
- Offload current draw 1.3 mA
Good to know
- Genuine Egis Mobile Electric product from an authorized dealer.
- Ships from US distribution.
- Questions about fit or installation? Contact us before you order.
What's in the box
