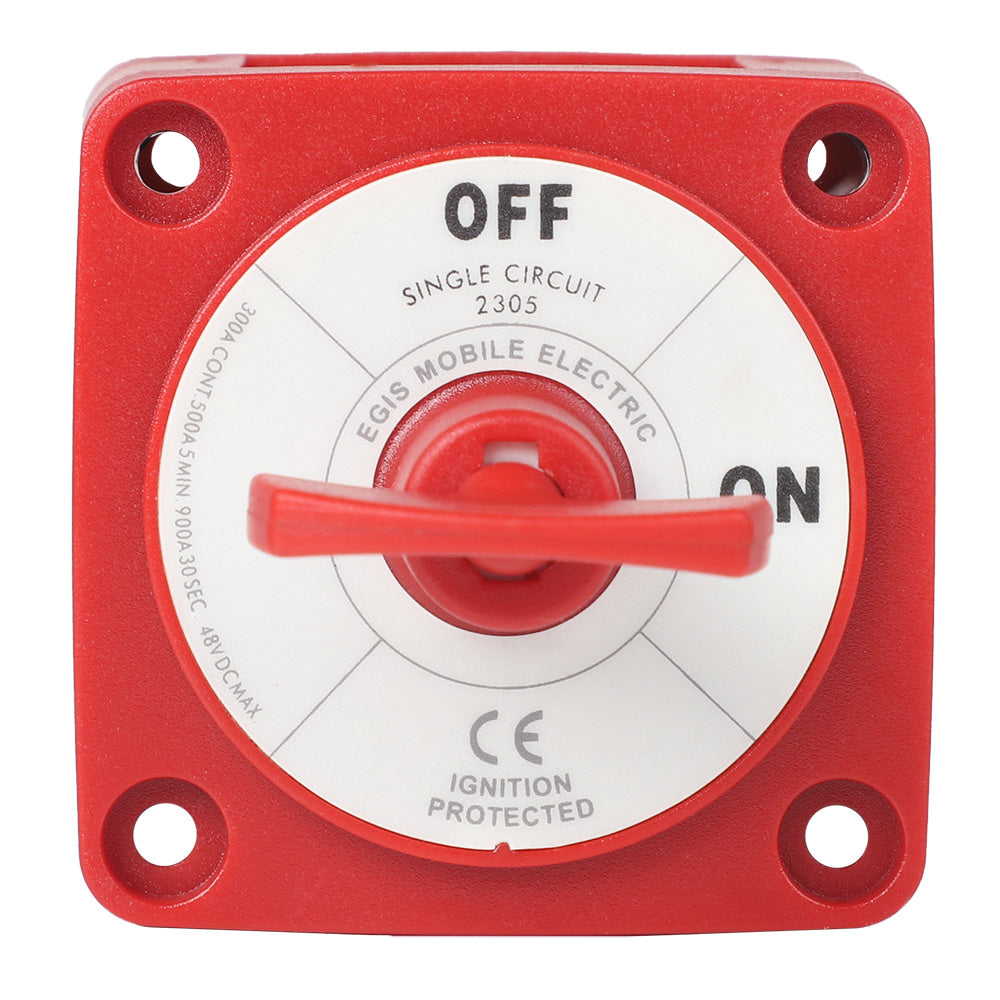

Egis M-Series 300A Battery Switch Off/On Key Actuator
M-Series 300A Battery Switch Off/On Key ActuatorSealed Against Dust & Water Intrusion - To ensure reliable circuit protection for the life of the electrical system installation.Ignition Protected - Safe for instal...
Size it to your vessel first
Run your loads through the Energy Planner to confirm this gear covers your daily draw — and see if you need more panels or battery.
Open the Energy Planner →M-Series 300A Battery Switch Off/On Key Actuator
Sealed Against Dust & Water Intrusion - To ensure reliable circuit protection for the life of the electrical system installation.
Ignition Protected - Safe for installation in closed compartments with potential explosive gases.
Serrated Flange Lock Nuts - Improves resistance to cable terminal loosening in high-vibration environments.
Flexible Mounting Options - Allow for multiple mounting configurations and a variety of installation types.
Harsh Environment Design - With stainless steel hardware, serrated flange nuts, and high-temperature materials.
Specifications:
- Maximum Voltage (Single Circuit): 48 Vdc
- Maximum Voltage (Selector / Dual Circuit): 32 Vdc
- Stud Size And Thread: 3/8”-16
- Terminal Stud Torque: 120 in-lbs (13.6 N-m)
- Ring Terminal Size Acceptance: 3/8” (M10)
- Mounting Holes: #10 Screw
- Live Switching Rating: 25 Amps
- Ignition Protection Rating: SAE J1171 / ISO 8846
- Bulkhead / Panel - Mounting Hole Size: 2-5/8" / 2-5/16"
- Cable Size to Meet Rating: 4/0 AWG
Good to know
- Genuine Egis Mobile Electric product from an authorized dealer.
- Ships from US distribution.
- Questions about fit or installation? Contact us before you order.
