Blue Sea Systems

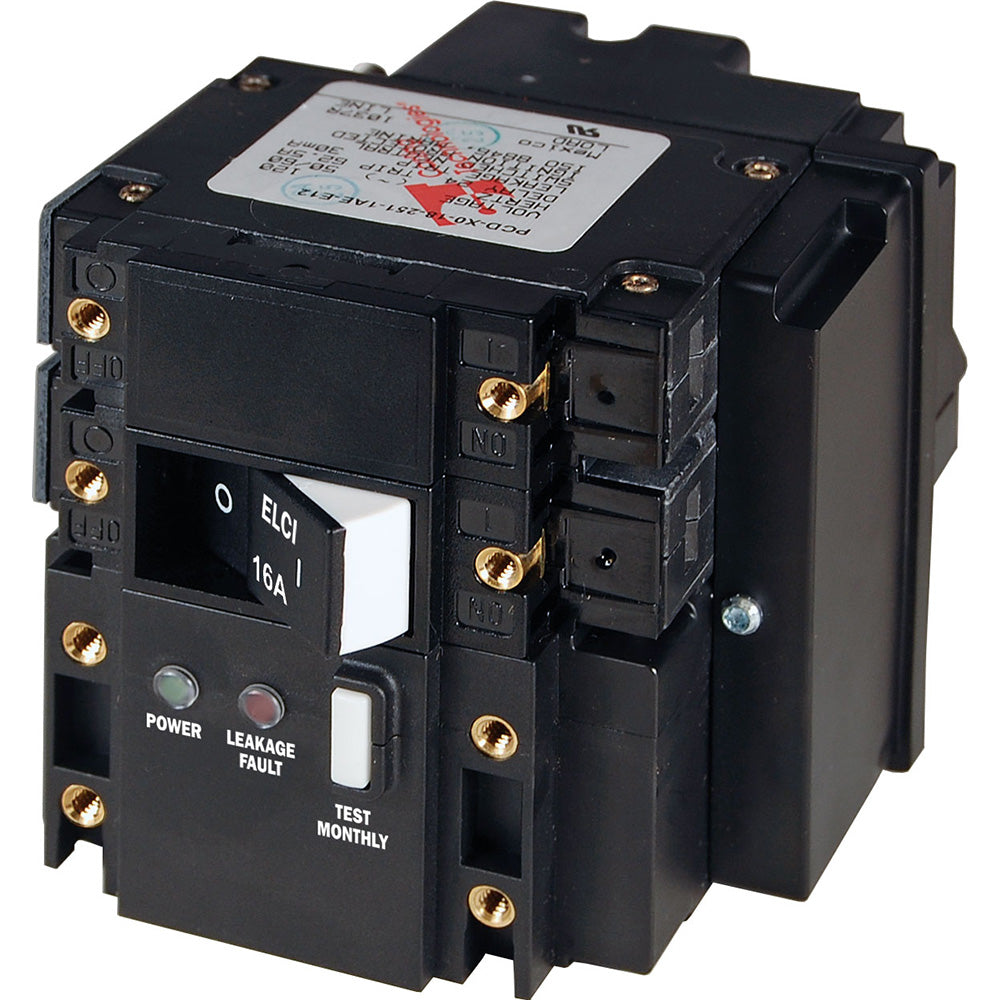

Blue Sea C-Series ELCI Main Circuit Breaker - Double Pole 230V AC
SKU 108094·Circuit Breakers
$1,114.99
C-Series ELCI Main Circuit Breaker - Double Pole 230V AC 16AFeatures: Trips on short circuit, overload, or leakage to ground Front panel mount—installed in a power distribution panel Specifications: Amperage: 16A Actu...
Choose your option
1
In stock
·Ships from US distribution
Authorized dealerGenuine Blue Sea Systems
Secure checkoutPowered by Shopify
Expert supportTalk to a rigger
Will it fit your boat?
Size it to your vessel first
Run your loads through the Energy Planner to confirm this gear covers your daily draw — and see if you need more panels or battery.
Open the Energy Planner →C-Series ELCI Main Circuit Breaker - Double Pole 230V AC 16A
Features:
- Trips on short circuit, overload, or leakage to ground
- Front panel mount—installed in a power distribution panel
Specifications:
- Amperage: 16A
- Actuator Style: Flat rocker
- Poles: 2
- Ignition Protected: Yes
- Maximum Voltage: 240V AC per pole
- Circuit Breaker Type: Magnetic Hydraulic - trip free
- Interrupt Capacity: 5000A
- Minimum Operating Temperature: -35 degrees C
- Maximum Operating Temperature: 66 degrees C
- Leakage Trip Amps: 30mA
- Mounting Screw: #6-32 Stainless Steel
- Mounting Screw Torque: 6in-lb (0.68 Nm)
- Switching Cycles: 10000
- Weight: 0.90 lbs (0.41kg)
BrandBlue Sea Systems
SKU108094
UPC632085030919
TypeCircuit Breakers
Weight1.2 lb
Amperage16A / 32A
Good to know
- Genuine Blue Sea Systems product from an authorized dealer.
- Ships from US distribution.
- Questions about fit or installation? Contact us before you order.
What's in the box
★★★★★
