Blue Sea Systems

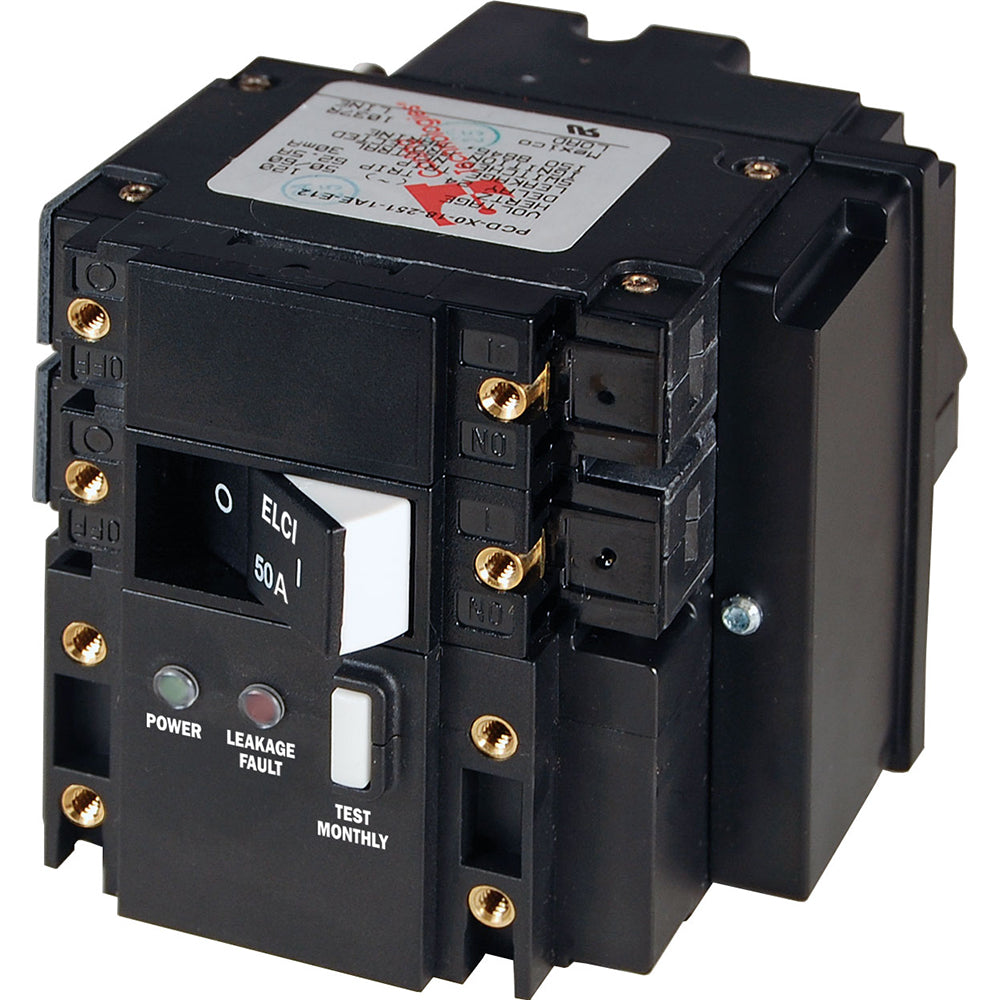

Blue Sea C-Series ELCI Main Circuit Breaker - Double Pole 120V AC 50A
SKU 85023·Circuit Breakers
$906.99
C-Series ELCI Main Circuit Breaker - Double Pole 120V AC 50AFeatures: Provides over current and leakage protection per ABYC E-11 for whole boat shore power protection Meets UL 1500 external ignition protection require...
1
Sold out
·Ships from US distribution
Authorized dealerGenuine Blue Sea Systems
Secure checkoutPowered by Shopify
Expert supportTalk to a rigger
Will it fit your boat?
Size it to your vessel first
Run your loads through the Energy Planner to confirm this gear covers your daily draw — and see if you need more panels or battery.
Open the Energy Planner →C-Series ELCI Main Circuit Breaker - Double Pole 120V AC 50A
Features:
- Provides over current and leakage protection per ABYC E-11 for whole boat shore power protection
- Meets UL 1500 external ignition protection requirements
- Trips on short circuit, overload, or leakage to ground
- Front panel mount—installed in a power distribution panel
Specifications:
- Amperage: 50A
- Actuator Style: Flat Rocker
- Poles: 2
- Ignition Protected: Yes
- Max Voltage: 120VAC per pole
- Circuit Breaker Type: Magnetic Hydraulic - trip free
- Interrupt Capacity: 5000A
- Minimum Operating Temperature: -35 degrees C
- Max Operating Temperature: 66 degrees C
- Leakage Trip Amps: 30mA
BrandBlue Sea Systems
SKU85023
UPC632085031039
TypeCircuit Breakers
Weight1.2 lb
