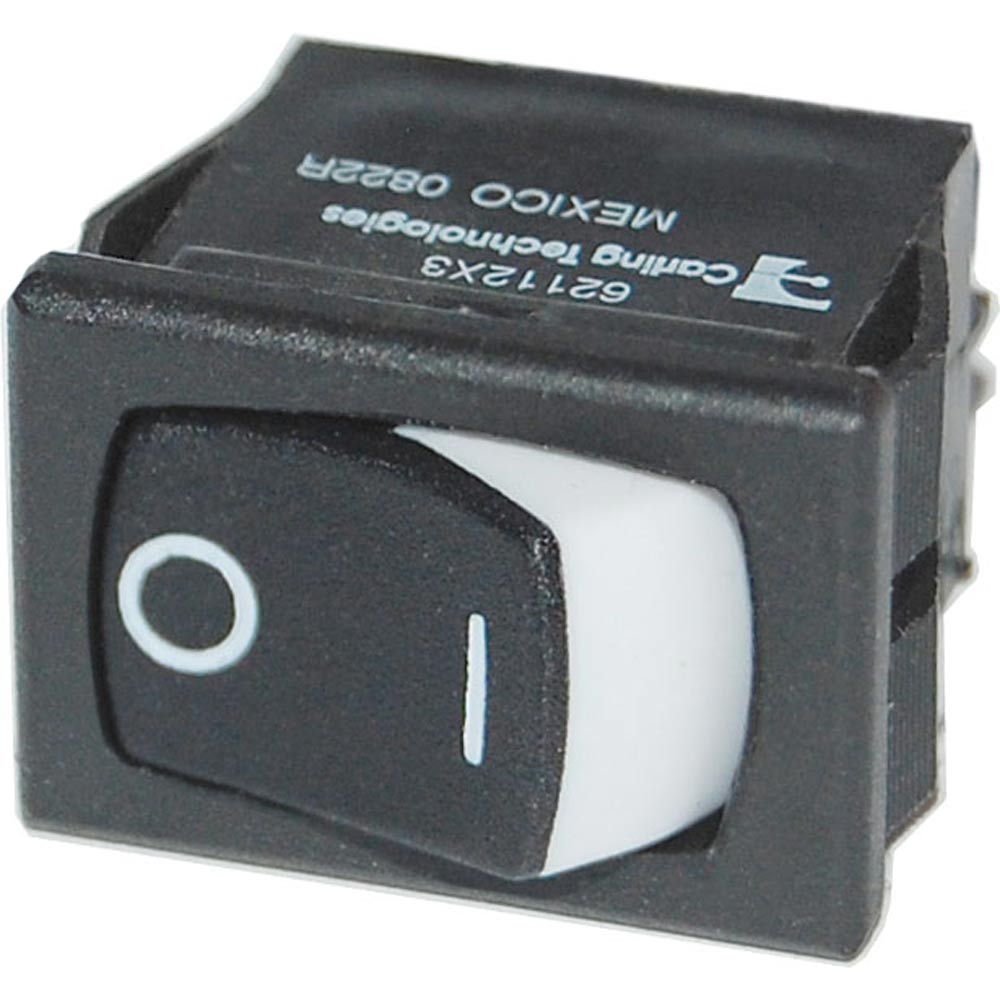

Blue Sea 7490 360 Panel - Rocker Switch DPST - ON-OFF
SKU 57259·Switches & Accessories
$13.99
360 Panel - Rocker Switch DPST - ON-OFFThe 360 Panel System uses an open frame to mount a broad selection of modules, allowing multiple functions to be combined in a single panel.This innovative design offers a wide c...
1
Sold out
·Ships from US distribution
Authorized dealerGenuine Blue Sea Systems
Secure checkoutPowered by Shopify
Expert supportTalk to a rigger
Will it fit your boat?
Size it to your vessel first
Run your loads through the Energy Planner to confirm this gear covers your daily draw — and see if you need more panels or battery.
Open the Energy Planner →360 Panel - Rocker Switch DPST - ON-OFF
The 360 Panel System uses an open frame to mount a broad selection of modules, allowing multiple functions to be combined in a single panel.
This innovative design offers a wide choice of panel features, can accommodate future changes and permits rapid assembly. With options ranging from battery management to source selection, the 360 Panel System provides unmatched design flexibility.
For use in 360 panels in the following modules: Gauge, DC Push Button + Switch, and DC Battery Management
Specifications:
*Action () = Momentary ON
**Pole/Throw:
SPST - Single Pole/Single Throw
SPDT - Single Pole/Double Throw
DPST - Double Pole/Single Throw
DPDT - Double Pole/Double Throw
***Maximum Amperage - Maximum amperage ratings are dependent on use of appropriately sized fuses and wire for a given application.
The 360 Panel System uses an open frame to mount a broad selection of modules, allowing multiple functions to be combined in a single panel.
This innovative design offers a wide choice of panel features, can accommodate future changes and permits rapid assembly. With options ranging from battery management to source selection, the 360 Panel System provides unmatched design flexibility.
For use in 360 panels in the following modules: Gauge, DC Push Button + Switch, and DC Battery Management
Specifications:
-
Action*: ON-OFF
-
Pole/Throw**: DPST
-
Maximum Amperage***:8A @ 125V AC / 5A @ 12V DC / 5A @ 24V DC / 4A @ 250V AC
-
Terminal Type: Wire Leads
-
Terminal Size: 6.00" (152.4mm)
- Weight:0.08lb (0.04kg)
*Action () = Momentary ON
**Pole/Throw:
SPST - Single Pole/Single Throw
SPDT - Single Pole/Double Throw
DPST - Double Pole/Single Throw
DPDT - Double Pole/Double Throw
***Maximum Amperage - Maximum amperage ratings are dependent on use of appropriately sized fuses and wire for a given application.
⚠ California Prop 65 Warning: This product may expose you to chemicals known to the State of California to cause cancer or reproductive harm. See P65Warnings.ca.gov.
BrandBlue Sea Systems
SKU57259
UPC632085074906
TypeSwitches & Accessories
Weight0.6 lb
