Blue Sea Systems

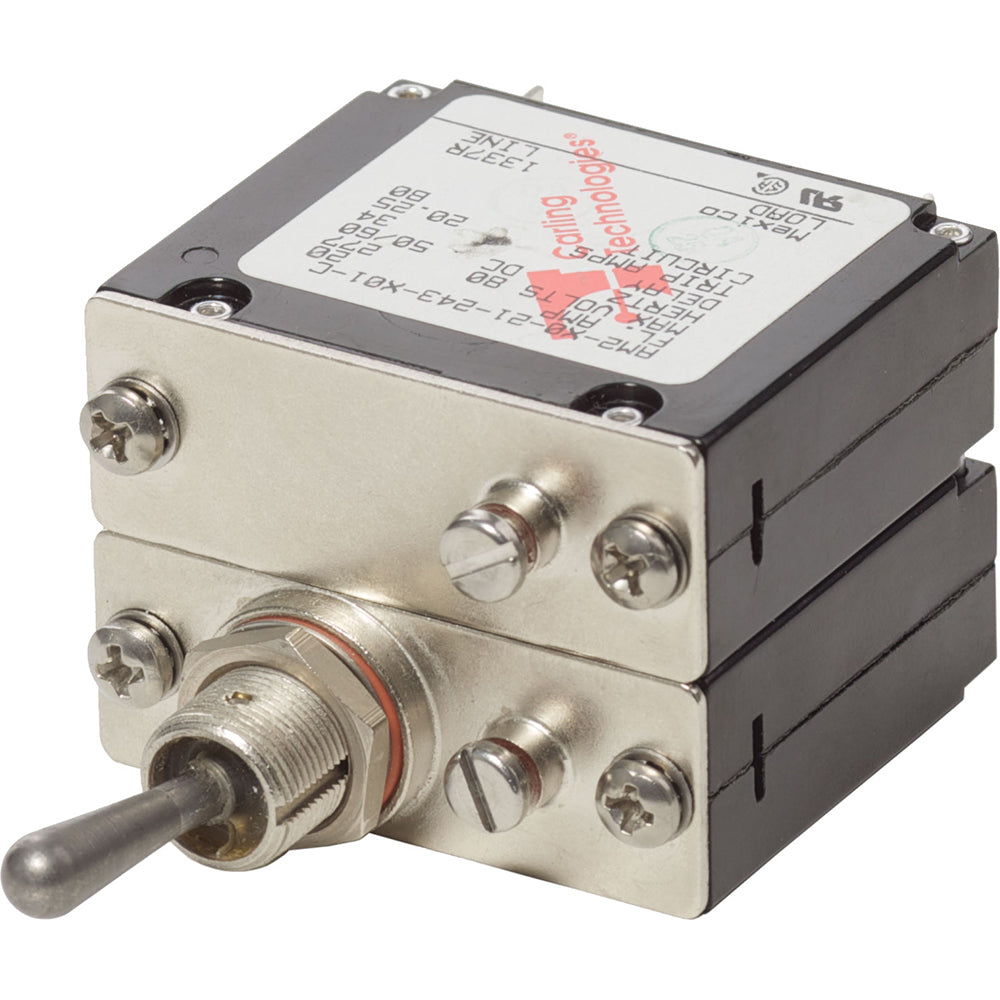

Blue Sea 7313 COTS Military Grade A-Series 20 Amp
SKU 78671·Circuit Breakers
$160.99
7313 COTS Military Grade A-Series 20 AmpMay be suitable for use when military specifications are required under CFR 46.Specifications: Amperage: 20A Actuator Style: Metal Toggle Poles: 2 Max Voltage: 277V AC, 65V DC C...
1
Sold out
·Ships from US distribution
Authorized dealerGenuine Blue Sea Systems
Secure checkoutPowered by Shopify
Expert supportTalk to a rigger
Will it fit your boat?
Size it to your vessel first
Run your loads through the Energy Planner to confirm this gear covers your daily draw — and see if you need more panels or battery.
Open the Energy Planner →7313 COTS Military Grade A-Series 20 Amp
May be suitable for use when military specifications are required under CFR 46.
Specifications:
- Amperage: 20A
- Actuator Style: Metal Toggle
- Poles: 2
- Max Voltage: 277V AC, 65V DC
- Circuit Breaker Type: Magnetic Hydraulic - Trip Free
- Interrupt Capacity: 1500 A AC, 7500A DC
- Min Operating Temp: -40°C
- Max Operating Temp: 85°C
- Mounting Boss: 1/2-32 Hex Nut SS
- Mounting Nut Torque: 30"-lb
- Screw Terminal Torque: 14"-lb
- Switching Cycles: 6000 Electrical/4000 Mechanical
- Terminal Screw: #10-32 SS
- Weight: 0.13lb (0.06 kg)
- UL 1077
BrandBlue Sea Systems
SKU78671
UPC632085173135
TypeCircuit Breakers
Weight0.4 lb
Good to know
- Genuine Blue Sea Systems product from an authorized dealer.
- Ships from US distribution.
- Questions about fit or installation? Contact us before you order.
