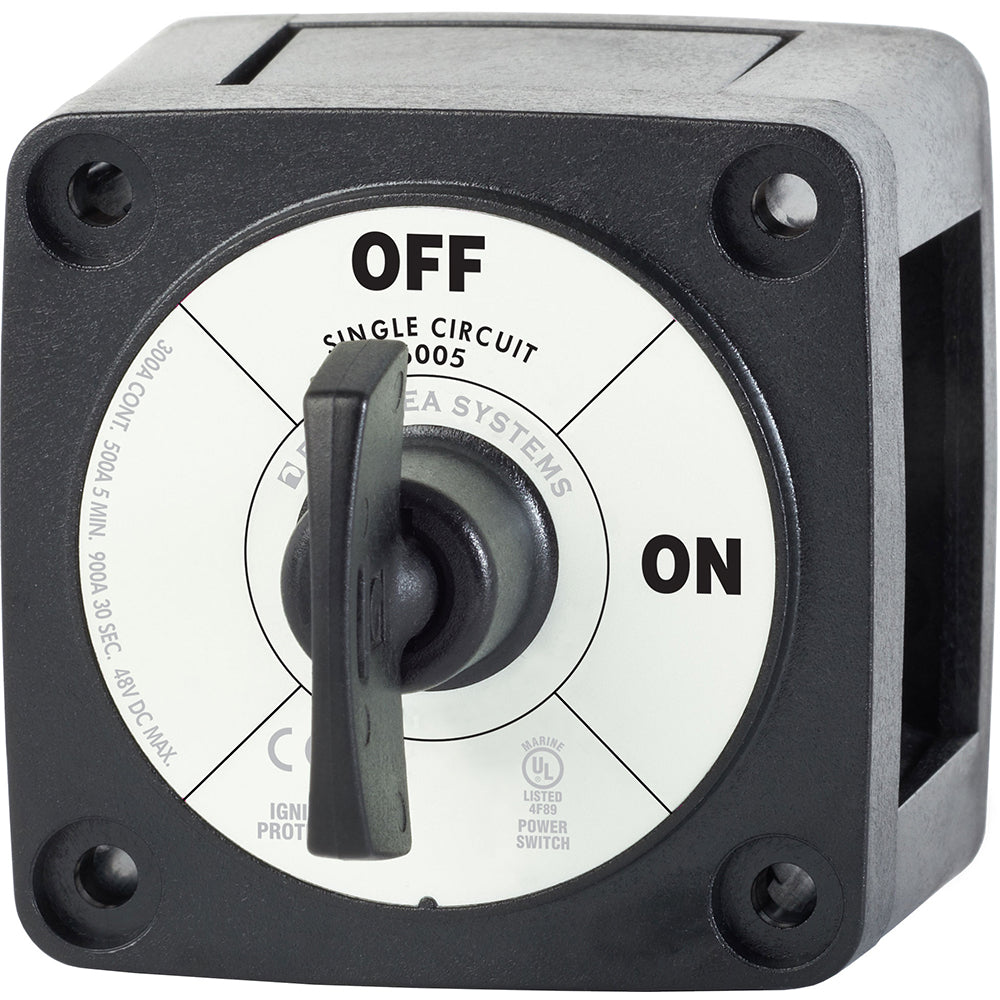

Blue Sea 6005200 Battery Switch Single Circuit ON-OFF - Black
SKU 49217·Battery Management
$44.99
m-Series Mini On-Off Battery Switch with Key - BlackSwitches a single battery to a single load group Ignition protected-safe for installation aboard gasoline powered boats.Case design allows surface, front panel, or r...
1
In stock
·Ships from US distribution
Authorized dealerGenuine Blue Sea Systems
Secure checkoutPowered by Shopify
Expert supportTalk to a rigger
Will it fit your boat?
Size it to your vessel first
Run your loads through the Energy Planner to confirm this gear covers your daily draw — and see if you need more panels or battery.
Open the Energy Planner →m-Series Mini On-Off Battery Switch with Key - Black
Switches a single battery to a single load group Ignition protected-safe for installation aboard gasoline powered boats.
Case design allows surface, front panel, or rear panel mounting Isolating cover with snap-on sections protects rear contacts.
Switch Type: Single Circuit ON-OFF
Color: Black
Switch Positions: 2
Battery Combine: No
Alternator Field Disconnect: No
Maximum Voltage: 48V DC
Continuous Rating : 300A
Intermittent Rating : 500A (5 min)
Cranking Rating 10 sec: 1500A
Cranking Rating 1 min: 775A
Battery Inputs: 1
Cable Clearance For 4/0 AWG Cables: 1.12in (28.45 mm)
Cable Size to Meet Ratings: 4/0 AWG (120mm²)
Mounting Holes: Accept #10 Screw
Terminal Stud Size: 3/8"-16 (M10)
Terminal Stud Torque: 120 in-lb (13.56 Nm)
Weight: 0.62lb (0.28/ kg)
Switches a single battery to a single load group Ignition protected-safe for installation aboard gasoline powered boats.
Case design allows surface, front panel, or rear panel mounting Isolating cover with snap-on sections protects rear contacts.
Switch Type: Single Circuit ON-OFF
Color: Black
Switch Positions: 2
Battery Combine: No
Alternator Field Disconnect: No
Maximum Voltage: 48V DC
Continuous Rating : 300A
Intermittent Rating : 500A (5 min)
Cranking Rating 10 sec: 1500A
Cranking Rating 1 min: 775A
Battery Inputs: 1
Cable Clearance For 4/0 AWG Cables: 1.12in (28.45 mm)
Cable Size to Meet Ratings: 4/0 AWG (120mm²)
Mounting Holes: Accept #10 Screw
Terminal Stud Size: 3/8"-16 (M10)
Terminal Stud Torque: 120 in-lb (13.56 Nm)
Weight: 0.62lb (0.28/ kg)
⚠ California Prop 65 Warning: This product may expose you to chemicals known to the State of California to cause cancer or reproductive harm. See P65Warnings.ca.gov.
BrandBlue Sea Systems
SKU49217
UPC632085600525
TypeBattery Management
Weight0.6 lb
