Blue Sea Systems

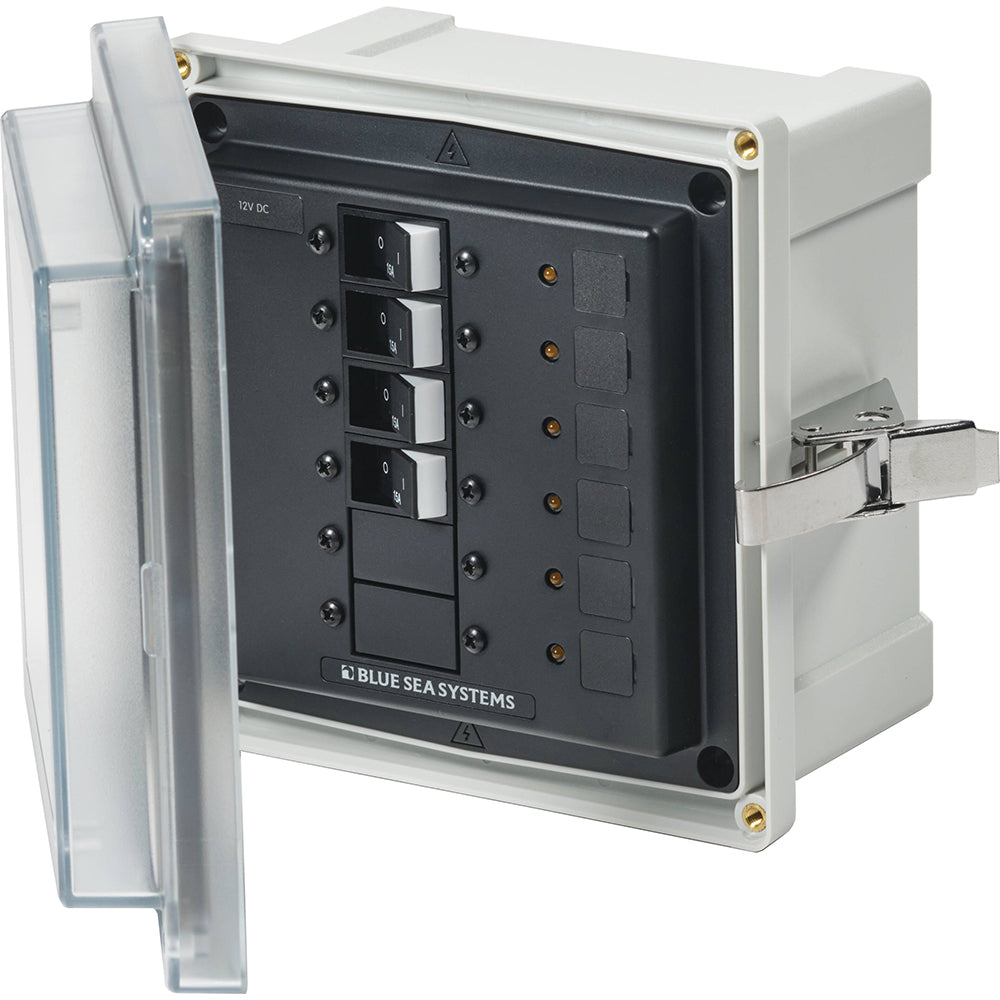

Blue Sea 3134 - SMS Panel Enclosure w/4 Branch (12/24V) - 12/24V DC
SKU 94740·Circuit Breakers
$595.99
3134 - SMS Panel Enclosure with 4 Branch (12/24V) - 12/24V DC The 3134-panel enclosure for DC circuit breakers and other large frame devices.Features: Blank apertures for custom breaker loading Glass-filled polycarbo...
1
In stock
·Ships from US distribution
Authorized dealerGenuine Blue Sea Systems
Secure checkoutPowered by Shopify
Expert supportTalk to a rigger
Will it fit your boat?
Size it to your vessel first
Run your loads through the Energy Planner to confirm this gear covers your daily draw — and see if you need more panels or battery.
Open the Energy Planner →3134 - SMS Panel Enclosure with 4 Branch (12/24V) - 12/24V DC
The 3134-panel enclosure for DC circuit breakers and other large frame devices.
Features:
- Blank apertures for custom breaker loading
- Glass-filled polycarbonate base
- Clear cover allows easy view of circuit breaker status
- Overlapping cover for strength and increased gasket protection
- Oversized, formed in place seamless PUR gasket
- Easily removable stainless steel hinge pin for unobstructed installation
- Stainless steel latch secures cover without penetrating the enclosure
- Blank circuit positions accommodate Carling Technologies™ A and C Series Flat Rocker and ELCI Main circuit breakers
- Includes waterproof glands
- LED lights for backlighting and ON indication
Technical Specifications:
- Circuit Breaker Type - 4 x Branch 12/24V DC (15A)
- Dimensions (Overall) (H x W x D) - 7.6" x 7.4"" x 4.7" (192 x 188 x 120mm)
- Dimensions (Enclosure) (H x W x D) - 6" x 6" x 4" (152 x 152 x 102mm)
- LEDs Installed - 6 x Amber ON indicating 12/24V DC
In the Box:
- 3134 Enclosure
- Glands x 6
- Labels
- Mounting hardware
- Instruction manual
*Sold as an Individual
BrandBlue Sea Systems
SKU94740
UPC632085031343
TypeCircuit Breakers
Weight4.1 lb
