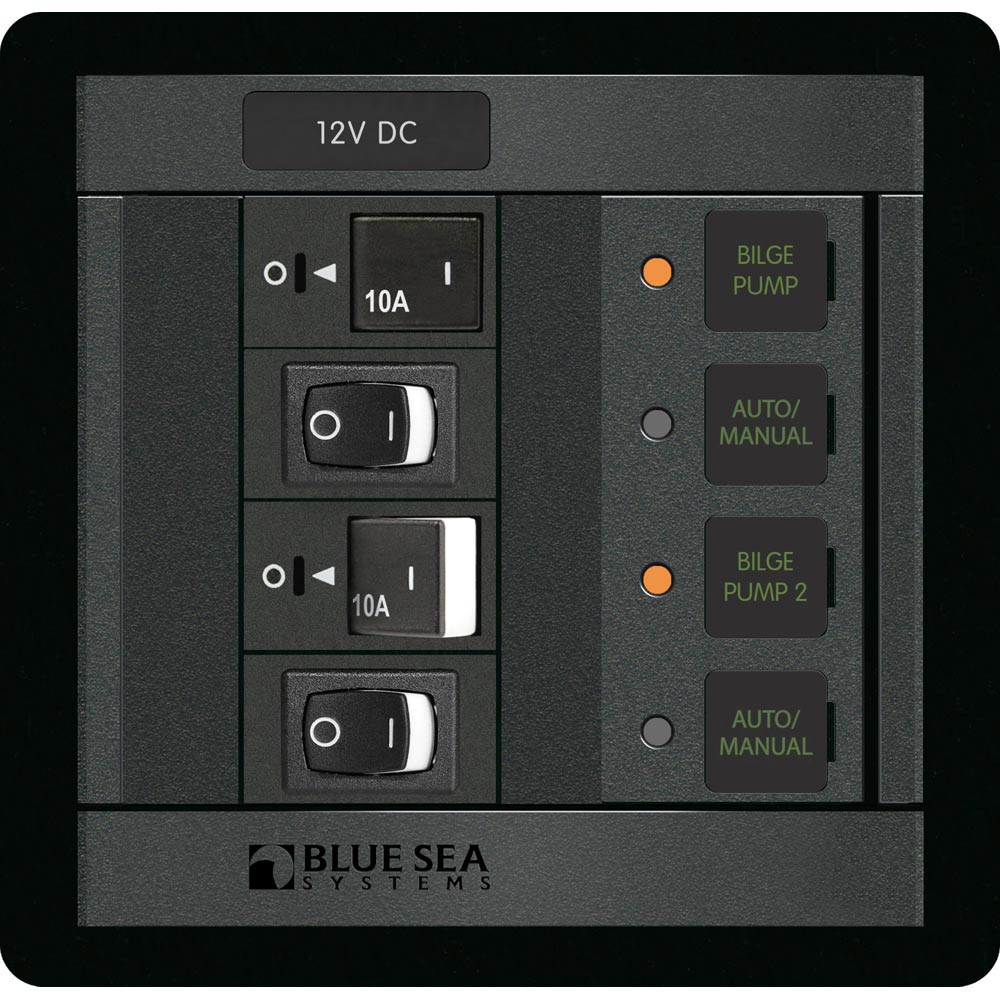

Blue Sea 1522 360 Panel Dual Bilge Pump Control
SKU 57216·Electrical Panels
$441.99
360 Panel Dual Bilge Pump ControlControls two bilge pumpsRestricted-off circuit breakers and manual override switches On-indicating LED indicates power is available at the bilge pump float switch Restricted-off circu...
1
In stock
·Ships from US distribution
Authorized dealerGenuine Blue Sea Systems
Secure checkoutPowered by Shopify
Expert supportTalk to a rigger
Will it fit your boat?
Size it to your vessel first
Run your loads through the Energy Planner to confirm this gear covers your daily draw — and see if you need more panels or battery.
Open the Energy Planner →360 Panel Dual Bilge Pump Control
Controls two bilge pumps
Restricted-off circuit breakers and manual override switches
Specifications:
Includes:
(2) - 7427 - A-Series Restricted Off Flat Rocker Circuit Breaker - Single Pole 10A
(2) - 7480 - Rocker Switch SPST - ON-OFF
Controls two bilge pumps
Restricted-off circuit breakers and manual override switches
- On-indicating LED indicates power is available at the bilge pump float switch
- Restricted-off circuit breakers provide 24-hour circuit protection to the bilge pump float switch
- Manual Override switch with On-indicating LED provides visual indication pump is running; also illuminates when pump is running as a result of float switch operation
Specifications:
-
Nominal Voltage: 12V DC
-
Height: 4.75" (120.65mm)
- Width: 4.88" (123.95mm)
Includes:
(2) - 7427 - A-Series Restricted Off Flat Rocker Circuit Breaker - Single Pole 10A
(2) - 7480 - Rocker Switch SPST - ON-OFF
⚠ California Prop 65 Warning: This product may expose you to chemicals known to the State of California to cause cancer or reproductive harm. See P65Warnings.ca.gov.
BrandBlue Sea Systems
SKU57216
UPC632085015220
TypeElectrical Panels
Weight1.3 lb
