Blue Sea Systems

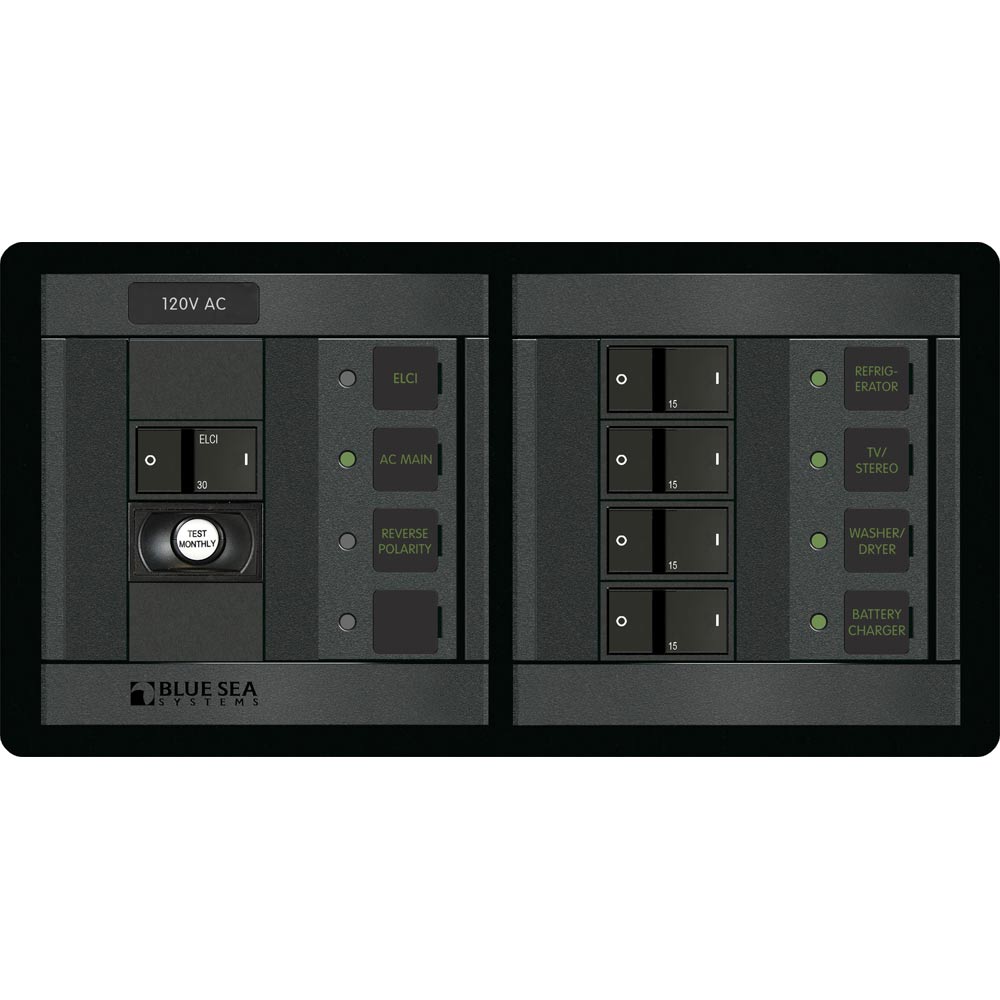

Blue Sea 1193 ELCI Main 30A Double Pole + 4 Positions Horizontal
SKU 57243·Electrical Panels
$1,084.99
ELCI Main 30A Double Pole + 4 Positions HorizontalFeatures: One 30A AC ELCI Main Residual Current Circuit Breaker, leakage trip amperate - 30 mA ELCI provides overcurrent and leakage protection per ABYC E-11 for whol...
1
Sold out
·Ships from US distribution
Authorized dealerGenuine Blue Sea Systems
Secure checkoutPowered by Shopify
Expert supportTalk to a rigger
Will it fit your boat?
Size it to your vessel first
Run your loads through the Energy Planner to confirm this gear covers your daily draw — and see if you need more panels or battery.
Open the Energy Planner →ELCI Main 30A Double Pole + 4 Positions Horizontal
Features:
Specifications:
Includes:
(4) - 7403 - A-Series Flat Rocker Circuit Breaker - Single Pole 15A
(1) - 3102100 - A-Series ELCI Main Circuit Breaker - Double Pole 120V AC 30A
Features:
- One 30A AC ELCI Main Residual Current Circuit Breaker, leakage trip amperate - 30 mA
- ELCI provides overcurrent and leakage protection per ABYC E-11 for whole boat shore power protection
- Four 15A AC Branch Flat Rocker Circuit Breaker
- Red " Reverse Polarity" LED
- Includes 4206 AC Panel Basic Square Format Label Set
- All circuit label positions are backlit
- "ON" indicating LEDs
Specifications:
-
Positions: 1
-
Nominal Voltage: 120V AC
-
Height: 4.75" (120.65mm)
-
Width: 4.88" (123.95mm)
-
Depth: 3.99" (101.35mm)
- Weight: 1.00lb (0.45kg)
Includes:
(4) - 7403 - A-Series Flat Rocker Circuit Breaker - Single Pole 15A
(1) - 3102100 - A-Series ELCI Main Circuit Breaker - Double Pole 120V AC 30A
⚠ California Prop 65 Warning: This product may expose you to chemicals known to the State of California to cause cancer or reproductive harm. See P65Warnings.ca.gov.
BrandBlue Sea Systems
SKU57243
UPC632085011932
TypeElectrical Panels
Weight3.8 lb
