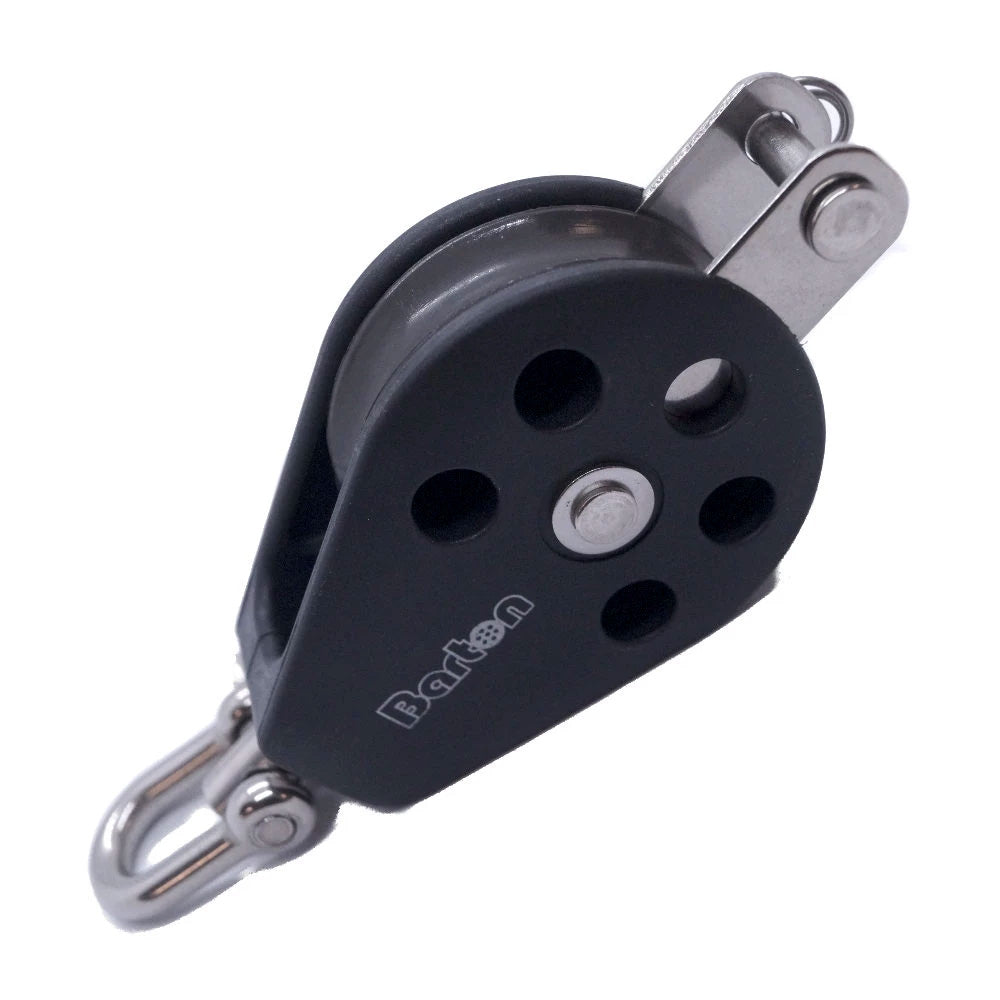

Barton Size 3 45mm Plain Bearing Pulley Block Single Swivel & Becket
Size 3 45mm Plain Bearing Pulley Block Single Swivel & BecketThe size 3 Barton plain bearing blocks have 45mm (1 3/4" sheave size 3 block range incorporates modern design with stainless steel frames and the latest...
Size it to your vessel first
Run your loads through the Energy Planner to confirm this gear covers your daily draw — and see if you need more panels or battery.
Open the Energy Planner →Size 3 45mm Plain Bearing Pulley Block Single Swivel & Becket
The size 3 Barton plain bearing blocks have 45mm (1 3/4" sheave size 3 block range incorporates modern design with stainless steel frames and the latest advanced materials, using 30% fibre glass-filled nylon and Acetal sheaves to maximise their strength whilst keeping weight to a minimum. Suitable for use as mainsheet, vangs, lead blocks, or wherever a powerful and compact purchase system is required on dinghies, dayboats, and lightweight cruisers.
Suitable for up to 10mm (3/8") rope.
Specifications:
- Weight: 91 g
- Dimensions: 114 × 47 × 28 mm
- Size: 3 (45MM)
- Block Type: Swivel + Becket
- No. of Sheaves: Single
- Bearing Type: Plain
- Sheave Size: 45mm x 13mm (1 3/4" x 35/64")
- Max rope diameter: 10mm (3/8")
- SWL: 400kg (881lbs)
- Break load: 800kg (1763lbs)
- Max rolling load (ball bearing blocks): 270kg (595lbs)
