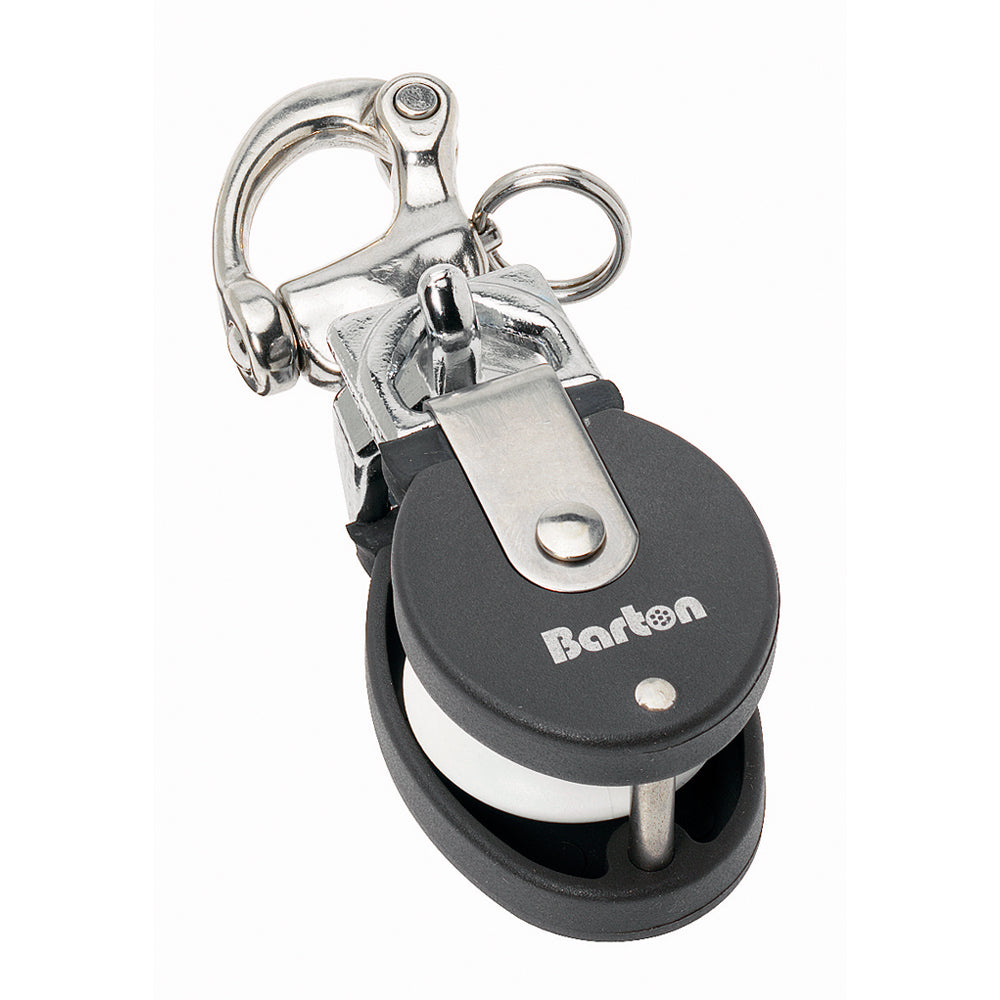

Barton Marine Size 2 Snatch Block w/Stainless Snap Shackle - 35mm Sheave
Size 2 Snatch Block with Stainless Snap Shackle - 35mm SheaveUnique to Barton, these are probably the smallest block of this type available.Important Note - Snatch BlocksWhen using small and medium snatch blocks on a ...
Size it to your vessel first
Run your loads through the Energy Planner to confirm this gear covers your daily draw — and see if you need more panels or battery.
Open the Energy Planner →Size 2 Snatch Block with Stainless Snap Shackle - 35mm Sheave
Unique to Barton, these are probably the smallest block of this type available.
Important Note - Snatch Blocks
When using small and medium snatch blocks on a toe rail, a bungee line should be attached to the becket to prevent the block from 'tumbling' and causing damage by snagging.
Features:
- Extremely compact and strong
- A multitude of uses on cruising or racing yachts where a large unit is not required
Specifications:
- Sheave: 35mm (1.38")
- Sheave Width:17mm (0.67")
- Rope: 12mm (0.47")
- Break Load: 800kg (1,763.7lbs)
- SWL: 400kg (881.8lbs)
- Length: 110mm (4.33")
- Weight: 170g (0.37lbs)
