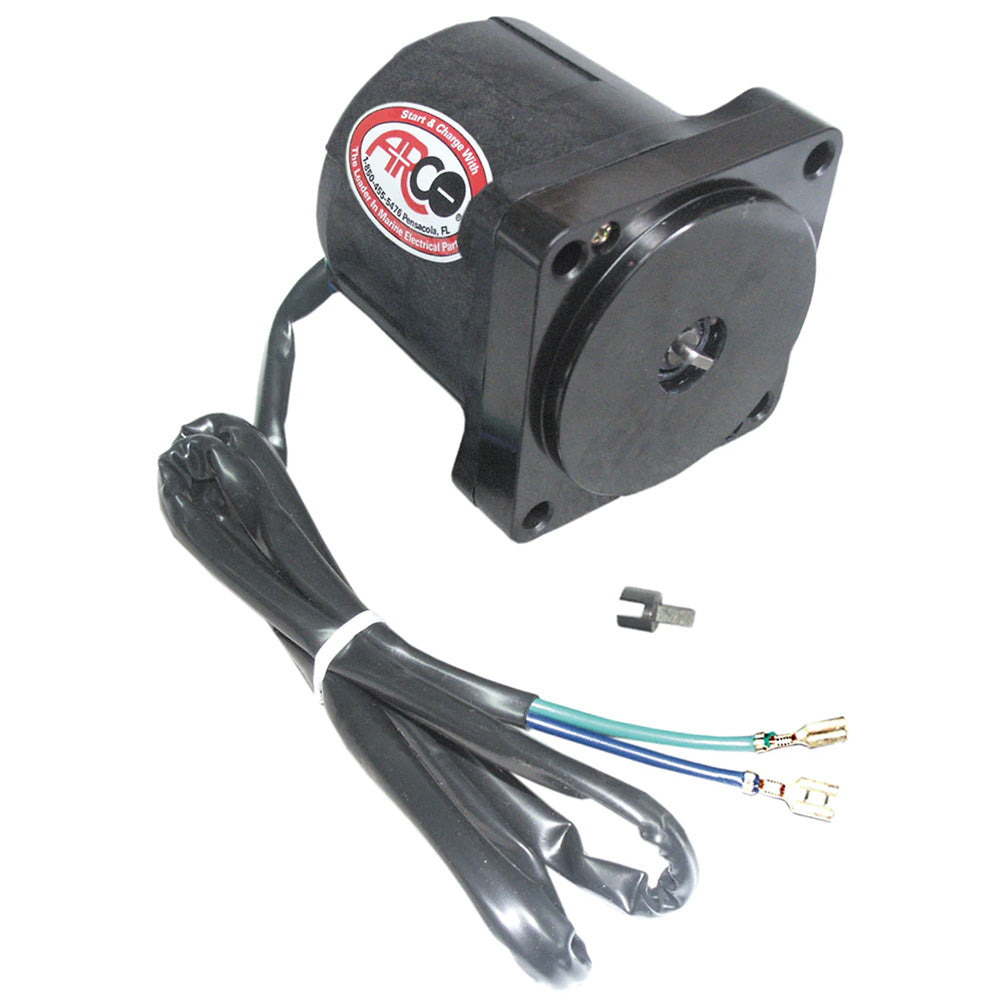

ARCO Marine Replacement Johnson/Evinrude Tilt Trim Motor - 2-Wire, 4 Bolt, Flat Blade Shaft

Replacement Johnson/Evinrude Tilt Trim Motor - 2-Wire, 4 Bolt, Flat Blade Shaft

Replacement outboard tilt trim motor that will fit BRP-OMC, 60, 70, 90, 115, 150, 175 HP. 1991-Up 200, 225 HP, 1991-94 120, 140 HP, 1995-UP 50 HP 3-cyl, 60 HP, V4 130 HP, 1997-Up 115-200 HP, 1998-99 225 HP, 2-wire connection, 4-bolt mount, Flat-blade shaft, Female Spade Terminal Ends.

ARCO advises cleaning all connections: A corroded connection creates resistance, lowering the amperage required to operate the motor.

Features:

• Tilt trim motors are dynamically tested to ensure out-of-the-box performance
• Motor shafts induction case hardened at bearing surfaces for superior wear resistance
• Epoxy Powder coated for maximum insulation protection

Warranty Information:

When properly installed, all ARCO products are warrantied against defects in materials and workmanship for a period of 12 months for leisure use and 90 days for commercial or racing applications.

Add an extra year of warranty to your rotating electric ARCO product (Tilt/Trim Motors, Alternators, Outboard Starters, and Inboard Starters) when you register your product within 30 days of purchase. You can register your product by visiting arcomarine.com/product-registration

Replaces:

BRP-OMC Tilt Trim Motor 434495
BRP-OMC Tilt Trim Motor 434496
BRP-OMC Tilt Trim Motor 438529
BRP-OMC Tilt Trim Motor 438531
BRP-OMC Tilt Trim Motor 5005374
BRP-OMC Tilt Trim Motor 5005376
SIERRA Tilt Trim Motor 18-6780
